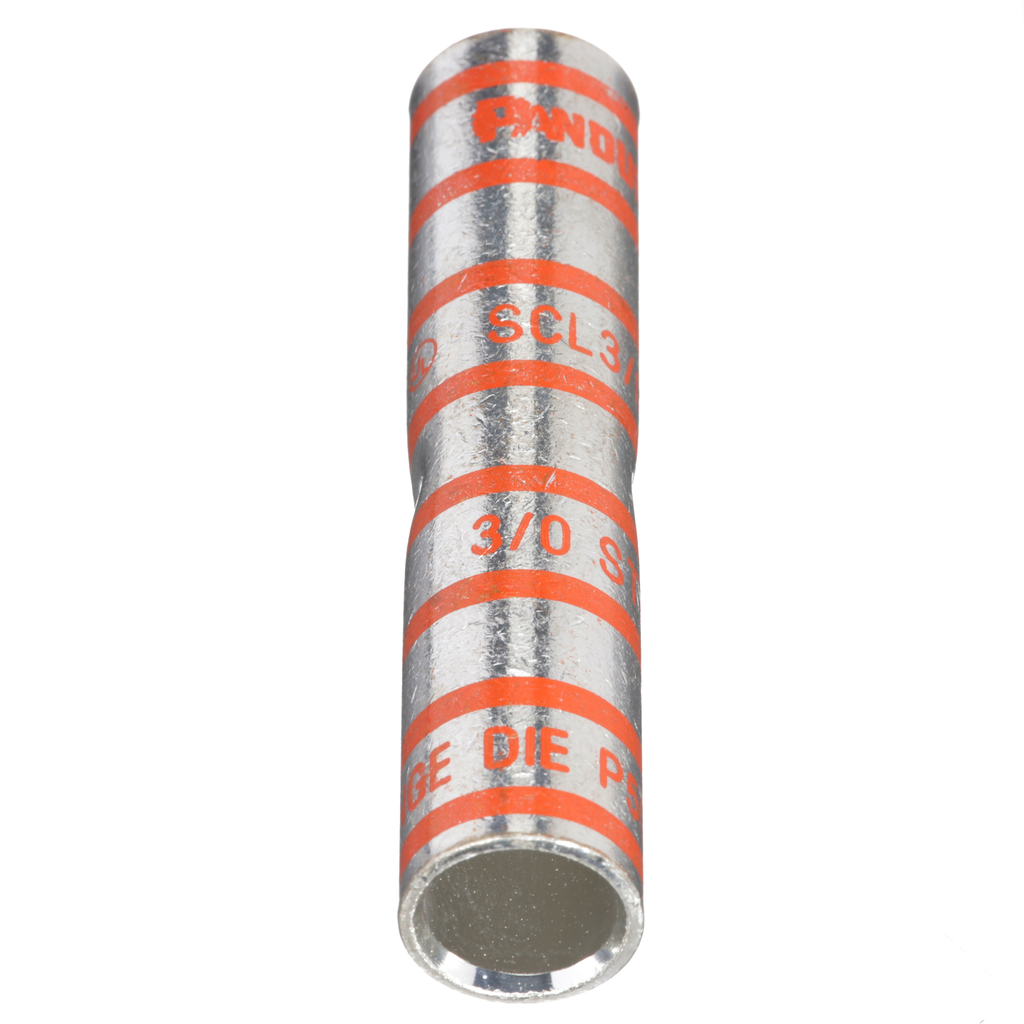

Pan-Lug™ SCL3/0-X Comp. Splice, Long, 3/0, Tin-Plated Copper, PK10

BUTT SPLICE LONG #3/0

PANSCL30X SCL3/0-X 074983904358
13.86 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ SCL3/0-X Comp. Splice, Long, 3/0, Tin-Plated Copper, PK10-1
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 3.12 in, 79.2 mm
  • Type: Compression Splice
Copper butt splice, long barrel, 3/0 AWG wire.
QTY
  • Product Description
  • Specifications
Copper butt splice, long barrel, 3/0 AWG wire.
  • Packaging Details
    • UPC : 07498390435
    • GTIN Package : 00074983904358
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 1.3000
    • Std Package Height In : 3.35
    • Std Package Height MM : 85.09
    • Std Package Length In : 4.7
    • Std Package Length MM : 119.38
    • Std Package Width In : 3.35
    • Std Package Width MM : 85.09
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983904358
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
  • Specifications
    • Product Segment : IEI
    • Product Type : Compression Splice
    • Base Material : Copper
    • Barrel Type : Long
    • Finish/Coating : Tin-Plated
    • Copper Code Conductor Size (AWG) : 3/0
    • Insulation Material : Non-Insulated
    • Overall Length (In.) : 3.12
    • Overall Length (mm) : 79.2
    • Standards Met : UL Listed and CSA Certified to 35 kV and temperature rated to 90°C
    • UL Temperature Rating (°C) : 90
    • CSA Temperature Rating (°C) : 90
    • Maximum Voltage (kV) : 35
    • Color Code : Orange
    • Burndy Die Index Number : 14
    • Panduit Die Index Number : P50
    • T & B Die Index Number : 50
    • Wire Strip Length (mm) : 38.1
    • Wire Strip Length (In.) : 1-1/2
    • Sub Brand : Pan-Lug™
