Pan-Lug™ SCL2-Q Compression Connectors - Splices

Name: Pan-Lug™ SCL2-Q Compression Connectors - Splices
Brand: PANDUIT
SKU: PANSCL2Q
Price: 8.59 USD
Availability: OutOfStock

PANSCL2Q SCL2-Q 074983904419

8.59 / EA

http://schema.org/OutOfStock

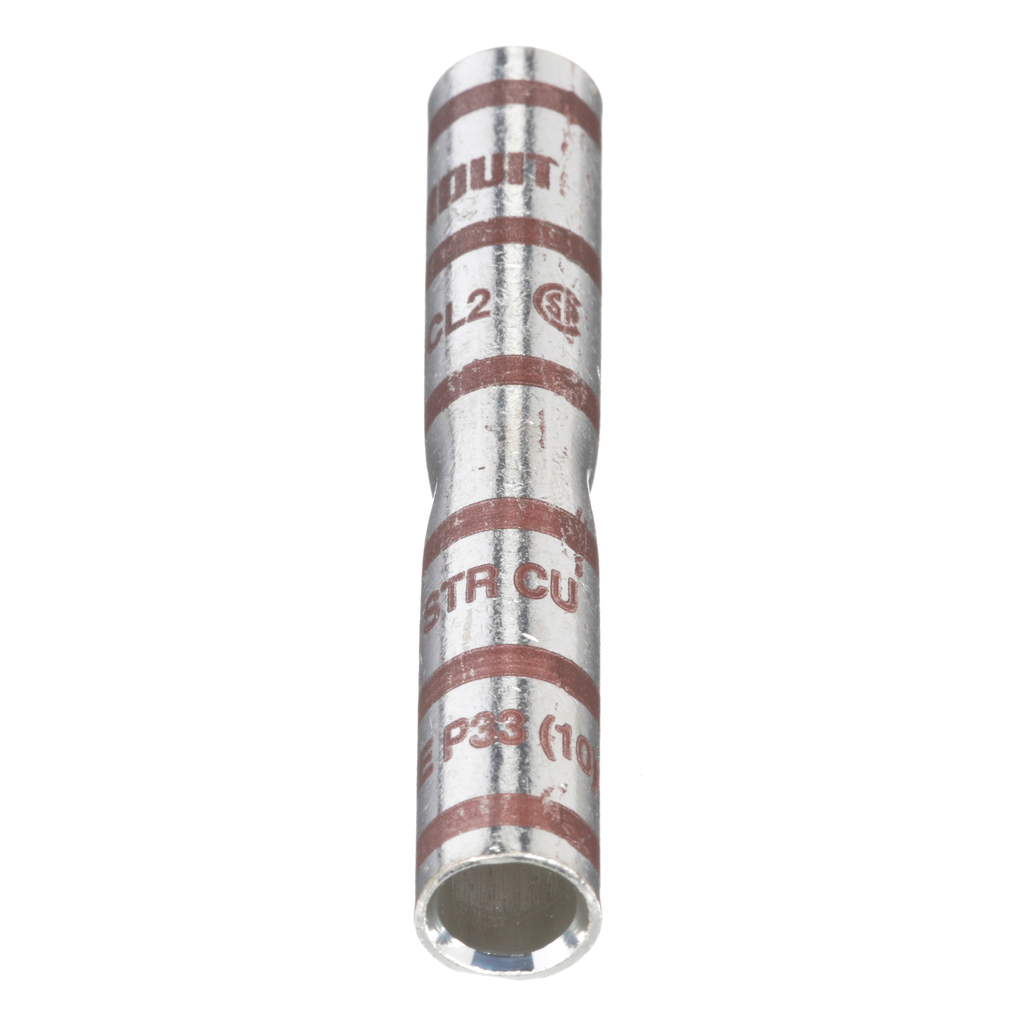

Copper butt splice, long barrel, #2 AWG wire.

QTY

Copper butt splice, long barrel, #2 AWG wire.

Product Segment : IEI
Product Type : Compression Splice
Base Material : Copper
Barrel Type : Long
Finish/Coating : Tin-Plated
Copper Code Conductor Size (AWG) : 2
Insulation Material : Non-Insulated
Overall Length (mm) : 66.5
Overall Length (In.) : 2.62
Standards Met : UL Listed and CSA Certified to 35 kV and temperature rated to 90°C
UL Temperature Rating (°C) : 90
CSA Temperature Rating (°C) : 90
Maximum Voltage (kV) : 35
Color Code : Brown
Burndy Die Index Number : 10
Panduit Die Index Number : P33
T & B Die Index Number : 33
Wire Strip Length (In.) : 1-1/4
Wire Strip Length (mm) : 31.8
Sub Brand : Pan-Lug™
