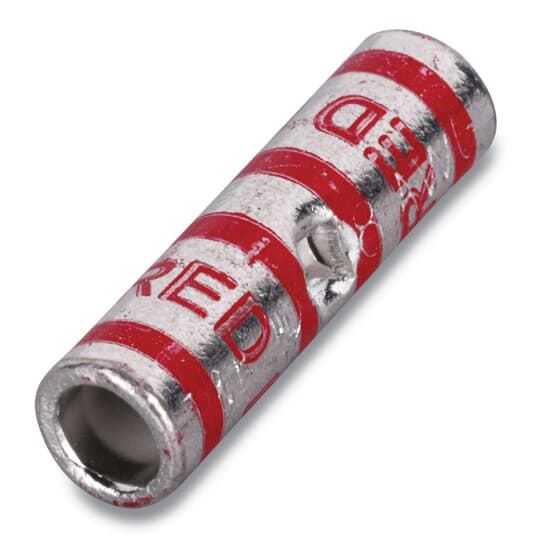

2 WAY SPLICE CONNECTOR 3/0

SPLICE CONNECTOR 2-WAY 3/0 AWG

TNB54511 54511 786210545110
32.43 / CASE
http://schema.org/OutOfStock
Mayer-DDS-2 WAY SPLICE CONNECTOR 3/0-1
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 3/0 AWG, Tin Plated, Die Code 50, Die Color Code Orange
QTY
  • Product Description
  • Specifications
Copper Two-Way Splice Connector, Standard Barrel, Max 35kV, Wire Size 3/0 AWG, Tin Plated, Die Code 50, Die Color Code Orange
  • Ordering
    • Country of Origin : Mexico (MX)
    • Selling Unit of Measure : each
  • Additional Information
    • Brand / Label : Color Keyed / Blackburn
    • Color : Orange
    • Effective Date : 19750324
    • Material : Copper
    • Product Name : ELECTRICAL TERMINAL
    • Product Type : Splice
    • Special Functions : Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
    • Standards : UL E9809
    • Sub Brand / Label : Color Keyed
    • Surface Finishing : Tin-Plated
    • Voltage Rating : 600 V
  • Classifications
    • WEEE Category : Product Not in WEEE Scope
    • IDEA Granular Category Code (IGCC) : 4669 >> Wire or cable compression splice
