Security & Sound, #18-4c, BC, Shielded, CMP

18-4C STR SHLD CMP

BLD6302FE877U1000 6302FE877U1000 BLD6302FE877U1000
0.52 / EA
http://schema.org/OutOfStock
Mayer-DDS-Security & Sound, #18-4c, BC, Shielded, CMP-1
  • Conductor Material: Bare Copper
  • Indoor/Outdoor: Indoor
  • Insulation Material: PVC-LS
  • Jacket Material: PVC-LS
  • Number of Conductors: 4

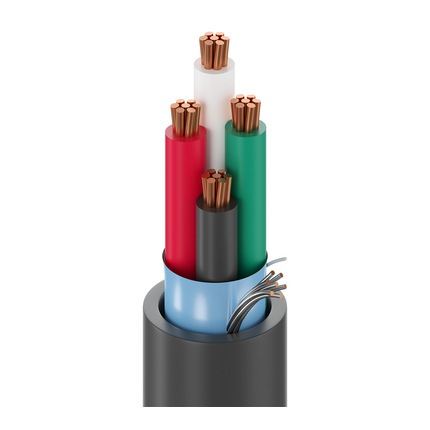

Security & Sound Cable, Plenum-CMP, 4-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
QTY
  • Product Description
  • Features
  • Specifications
Security & Sound Cable, Plenum-CMP, 4-18 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord
  • Suitable Applications
    • Security System
    • Intercom/PA
    • Audio/Speaker
    • Noisy Environment
  • Standard & Compliance
    • CEC/C(UL) Compliance : CMP
    • China RoHS II (GB/T 26572-2011) : Yes
    • CPR Euroclass : Eca
    • CPR UKCA Class : Eca
    • EU CE Mark : Yes
    • EU Directive 2011/65/EU (RoHS 2) : Yes
    • EU Directive 2012/19/EU (WEEE) : Yes
    • EU Directive 2015/863/EU (RoHS 2 amendment) : Yes
    • EU RoHS Compliance Date (yyyy-mm-dd) : 2005-04-01
    • IEC Flammability : IEC 60332-1-2
    • MII Order #39 (China RoHS) : Yes
    • NEC Articles : Article 800
    • NEC/(UL) Compliance : CMP
    • Suitability - Indoor : Yes
    • UKCA Mark : Yes
    • UL Flammability : NFPA 262, UL 910 (Plenum)
  • Specifications
    • Country of Origin : Mexico
    • ECCN : EAR99
    • Environmental Space : Indoor
    • Conductor Count : 4
    • Conductor Configuration : 4 Conductors
    • AWG Size : 18
    • Conductor Material : Bare Copper
    • Stranding@Conductor1 : 7x26
    • Material@Insulation01 : PVC - Polyvinyl Chloride
    • Insulation Material : PVC-LS
    • Shielding : Overall Foil(s)
    • Jacket : PVC-LS
    • UL Temp Rating : 75°C
    • UL voltage rating : 300 V
    • Color : Natural
