Southwire SIMpull CoilPAK THHN WIRE 2 0 19 CU SIMpullTM THHN THWN 2 MTW BLACK

THHN-3/0-BLK-19STR-CU-500

THN30BK500 20507002 032886234101
5.92 / EA
http://schema.org/OutOfStock

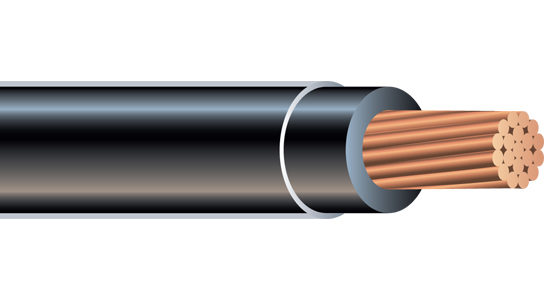

Mayer-DDS-Southwire SIMpull CoilPAK THHN WIRE 2 0 19 CU SIMpullTM THHN THWN 2 MTW BLACK-1
  • Country of Origin: USA
  • Warranty Length: 1 yr
Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
QTY
  • Product Description
  • Features
  • Specifications
Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
  • Features
    • THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
    • Voltage for all applications is 600 volts.
    • Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray.
    • Federal Specification A-A-59544
    • National Electrical Code, NFPA 70
    • CT Rated
    • VW-1
    • FT1
  • Specifications
    • Country of Origin : United States
    • Length : 19.75
    • Height : 13.5
    • Width : 19.75
    • Weight : 296.597
    • Color : Black
    • Warranty : 1 year manufacturers defect
