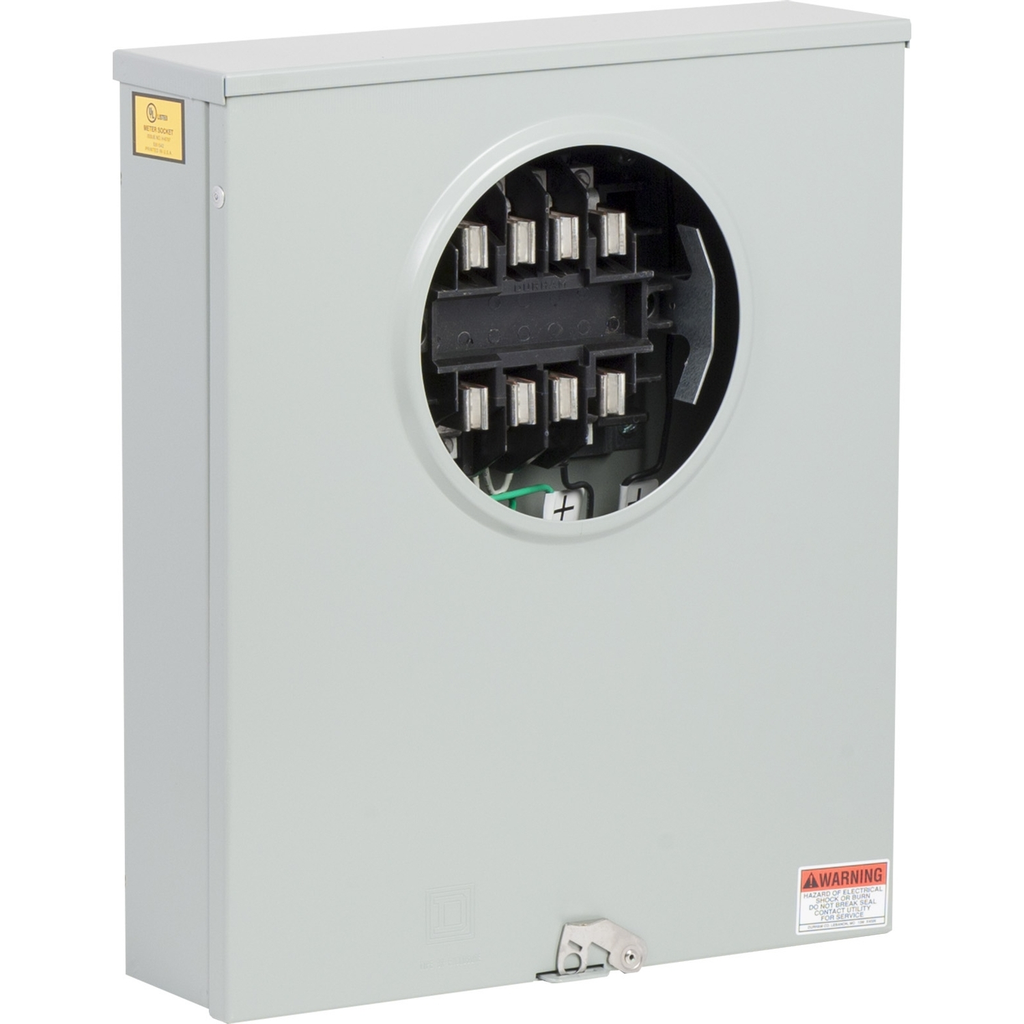

Meter socket, ringless, 1 phase, 3 wire, 8 jaws, solid top, no bypass, no jaw release

MTR SKT INSTR RATED 20A 8T

SQD1007361C 1007361C 785901757412
1007.72 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 8 jaws, solid top, no bypass, no jaw release-1
  • Certifications: UL
  • Enclosure Material: Steel
  • Mounting Type: Surface
  • Number of Phases: 1
  • Warranty Length: 18 mth
Square D individual meter socket is a single phase, ringless meter socket device for single family residential construction. This socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclsoed service disconnect. This solid top hub type socket has 8 jaws no bypass, and a current rating of 20A. This unit has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes. It also has a NEMA type 3R enclosure that is supplied with a bonded neutral, and hub opening in top endwall. This hub opening will require the use of a bolt on hub or closing plate. Unit is UL listed. This meter socket has a 20 A rating. This unit can be for a feed from an underground service. This unit has a NEMA 3R surface mounting enclosure. The lugs will accept 14 AWG to 2/0 AWG copper or aluminum wire. This individual meter socket is UL Listed.
QTY
  • Product Description
  • Specifications
Square D individual meter socket is a single phase, ringless meter socket device for single family residential construction. This socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclsoed service disconnect. This solid top hub type socket has 8 jaws no bypass, and a current rating of 20A. This unit has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes. It also has a NEMA type 3R enclosure that is supplied with a bonded neutral, and hub opening in top endwall. This hub opening will require the use of a bolt on hub or closing plate. Unit is UL listed. This meter socket has a 20 A rating. This unit can be for a feed from an underground service. This unit has a NEMA 3R surface mounting enclosure. The lugs will accept 14 AWG to 2/0 AWG copper or aluminum wire. This individual meter socket is UL Listed.
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Under investigation
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Service Feed Location : UG
    • Meter Socket Rated Current : 20 A
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 600 V AC
    • Bypass Type : no bypass
    • Enclosure Material : steel
    • Awg Gauge : AWG 14...AWG 2/0 aluminium/copper)line side || AWG 14...AWG 2/0 aluminium/copper)service ground
    • Wiring Configuration : 3-wire
    • Electrical Connection : lugs slotted
    • Number Of Jaws : 8 without jaw release
    • Phase : 1 phase
  • Specifications
    • Hub Type : solid top
    • Meter Socket Type : ringless
    • Product Or Component Type : Meter Socket
