Meter socket, 200 A, 600 V, 1 phase, ringless, 4 jaws w/o release, no bypass, NEMA 3R, steel

METER SOCKET 200AMP 1PH UG +OP

SQD1006388 1006388 785901232018
610.06 / EACH
http://schema.org/OutOfStock

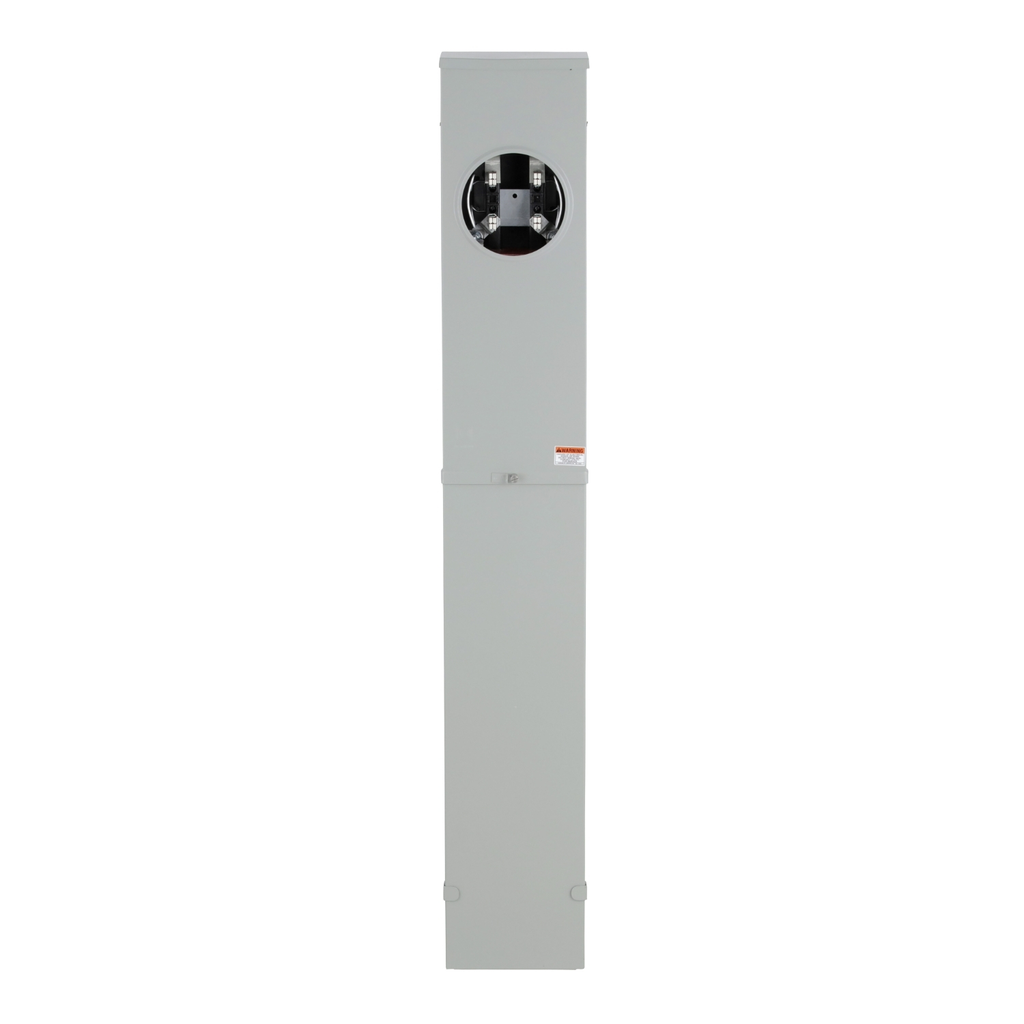

Mayer-DDS-Meter socket, 200 A, 600 V, 1 phase, ringless, 4 jaws w/o release, no bypass, NEMA 3R, steel-2
  • Country of Origin: USA
  • Warranty Length: 18 mth
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter no bypass allowing for continued service during meter maintenance or replacement.
QTY
  • Product Description
  • Features
  • Specifications
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter no bypass allowing for continued service during meter maintenance or replacement.
  • Hub Type
    • A ACP closing plate
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs 0.5" hex
  • Persona Type Names
    • Contractor
    • Electrician
  • Persona Type Ids
    • LC
    • SC
  • AWG Gauge
    • AWG 6...250 kcmil aluminium/copper)line side
    • AWG 6...250 kcmil aluminium/copper)service ground
  • Number Of Jaws
    • 4 without jaw release
  • UE Rated Operational Voltage
    • 600 V AC
  • Complementary Attributes
    • Meter Socket Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Meter socket, 200 A, 600 V, 1 PH, ringless, 4 jaws w/o release, no bypass, NEMA 3R, steel
    • B2B Bullet Point 2 : Protects against accidental shocks through the use of touch-safe terminals
    • B2B Bullet Point 3 : Conforms to the electrical characteristics in the data sheet by UL
    • B2B Bullet Point 4 : Product characteristics conformity is certified by UL
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Full Compliance Status : Under investigation
    • ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • Meter Socket Type : ringless
    • Package Weight Lbs : 19.799 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2509019EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • Take Back : No
    • Environmental Disclosure : ENVPEP2509019EN
    • EU ROHS Directive : Under investigation
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2509019EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
