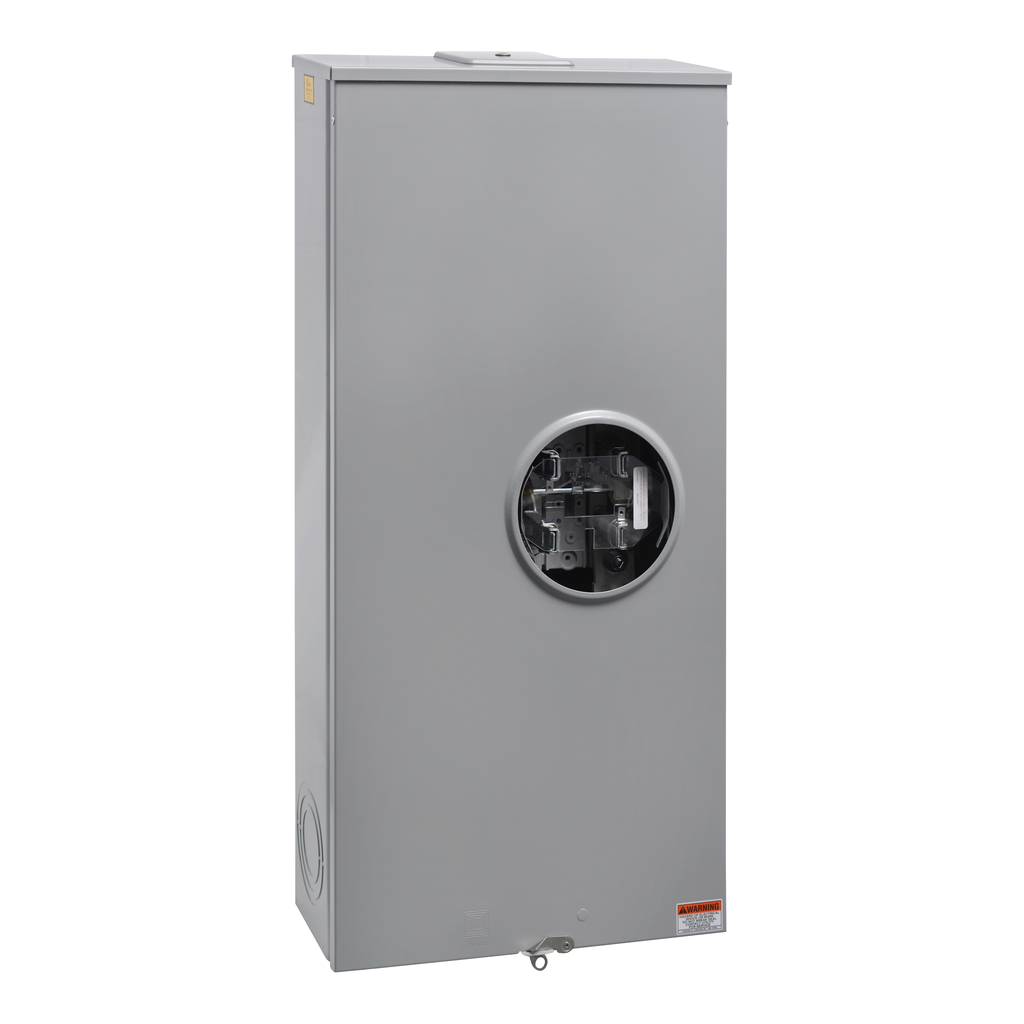

Meter socket, ringless, 1 phase, 3 wire, 320A, 4 jaws, 600VAC max, Series A, lever bypass, jaw release

METER SOCKET RINGLESS LEVER UG

SQD1008068 1008068 785901205395
818.95 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 320A, 4 jaws, 600VAC max, Series A, lever bypass, jaw release-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 320 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
QTY
  • Product Description
  • Features
  • Specifications
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 320 A, 600 V, 1 phase, 4 jaws, ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter has horn bypass allowing for continued service during meter maintenance or replacement.
  • Hub Type
    • A-L ACPL closing plate
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs 0.5" hex
  • AWG Gauge
    • AWG 6...350 kcmil aluminium/copper)line side
    • AWG 6...350 kcmil aluminium/copper)service ground
  • Number Of Jaws
    • 4 with jaw release
  • UE Rated Operational Voltage
    • 600 V AC
  • Complementary Attributes
    • Meter Socket Rated Current : 320 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Square D™ meter sockets provide rainproof protection for senstive electrical equipment
    • B2B Bullet Point 2 : For single family residential construction
    • B2B Bullet Point 3 : Available single or three phase, 600 Vac max
    • B2B Bullet Point 4 : Units supplied with bonded neutral.
    • B2B Bullet Point 5 : Conforms to the electrical characteristics stated in the data sheet per the Underwriters Laboratories (UL)
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS EUR In Scope : Yes
    • ROHS EUR Full Compliance Status : Under investigation
    • ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • Meter Socket Type : ringless
    • Package Weight Lbs : 17.69 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : No
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2509019EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : lever bypass
  • Environment Attributes
    • Take Back : No
    • Environmental Disclosure : ENVPEP2509019EN
    • EU ROHS Directive : Under investigation
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2509019EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
