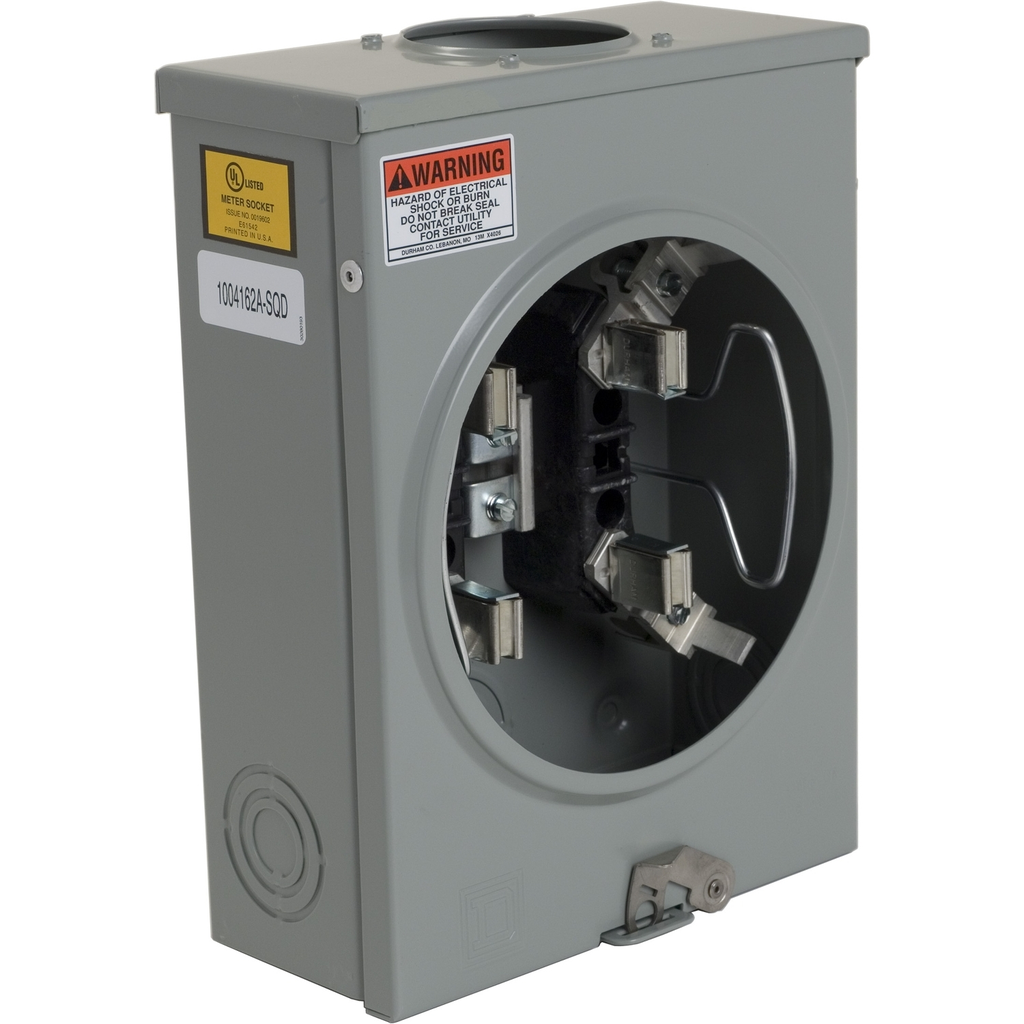

Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A, no bypass, no jaw release

METER SOCKET 100AMP OH+UG +OPT

SQD1004162A 1004162A 785901868491
174.35 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A, no bypass, no jaw release-1
  • Certifications: ANSI, UL Listed
  • Enclosure Material: Steel
  • Mounting Type: Surface
  • Number of Phases: 1
  • Warranty Length: 18 mth
For single family residential construction
QTY
  • Specifications
  • Environment
    • Product Certifications : ANSI || UL Listed
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Under investigation
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Service Feed Location : UG || OH
    • Meter Socket Rated Current : 100 A
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : <= 600 V AC
    • Bypass Type : no bypass
    • Enclosure Material : steel
    • Awg Gauge : AWG 8...AWG 2/0 aluminium/copper)line side || AWG 14...AWG 2 aluminium/copper)service ground
    • Wiring Configuration : 3-wire
    • Electrical Connection : lugs slotted
    • Number Of Jaws : 4 without jaw release
    • Phase : 1 phase
    • Box Number : 1R
  • Specifications
    • Hub Type : A ACP closing plate
    • Meter Socket Type : ringless
    • Product Or Component Type : Meter Socket
