Meter socket, ringless, 2 gang, 1 phase, 3 wire, 200A, 4 jaws, 600VAC max, no bypass, no jaw release

MTR SKT 2 GANG 200A 1PH SOLID

SQD1006737B 1006737B 785901632801
913.79 / EACH
http://schema.org/OutOfStock

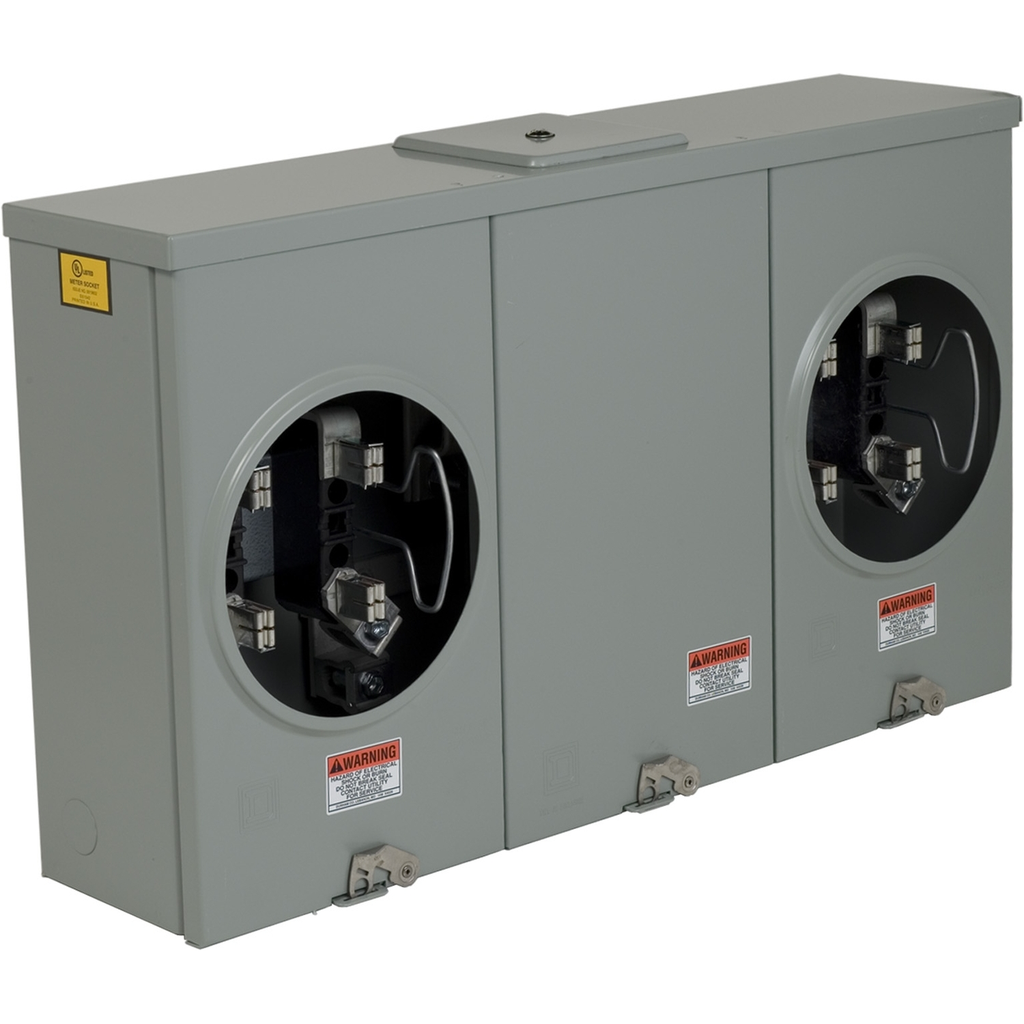

Mayer-DDS-Meter socket, ringless, 2 gang, 1 phase, 3 wire, 200A, 4 jaws, 600VAC max, no bypass, no jaw release-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has 2 meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 200A. The branches have a 100A rating. This unit can be feed from an underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs will accept one 350 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has 2 meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 200A. The branches have a 100A rating. This unit can be feed from an underground service. This unit has a NEMA 3R surface mounting enclosure. The main lugs will accept one 350 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 250 kcmil copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Persona Type Names
    • End User
    • Contractor
  • Persona Type Ids
    • EU
    • LC
  • AWG Gauge
    • AWG 8...250 kcmil (aluminium/copper) branch lugs
    • 350 kcmil (aluminium/copper) main lugs
  • Number Of Jaws
    • 4 without jaw release
  • UE Rated Operational Voltage
    • 600 V AC
  • Important Information Attributes
    • B2B Bullet Point 1 : Suitable Only for Use as Service Equipment
    • B2B Bullet Point 2 : Factory installed mechanical lugs, alternate lugs and NEMA/EUSERC lug landing kits available
    • B2B Bullet Point 3 : Surface mount, convertible to semi-flush with field installed flange kit
    • B2B Bullet Point 4 : Mounting channel supplied with three through six position devices
    • B2B Bullet Point 5 : Consult Local Utility for approval before installation
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : single-phase multi-tenant meter enclosure
    • Energy Efficiency Optimized : False
    • Hub Type : solid top
    • Meter Socket Type : ringless
    • Number Of Meter Sockets : 2
    • Package Weight Lbs : 12.701 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Meter Socket
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Pep Code : ENVPEP2509019EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Meter Socket
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=356969&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
