AccuSine+ current transformer - 1000/1 - Rectangular Split Core - 69.8x168.2mm

CURRENT TRANSFORMER 1000 1 SPL

SQDPCSPCTFCL10001R PCSPCTFCL10001R 3606480891717
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-AccuSine+ current transformer - 1000/1 - Rectangular Split Core - 69.8x168.2mm-1
  • Country of Origin: USA
  • Depth: 0 in
  • Height: 6.62 in
  • Width: 2.75 in

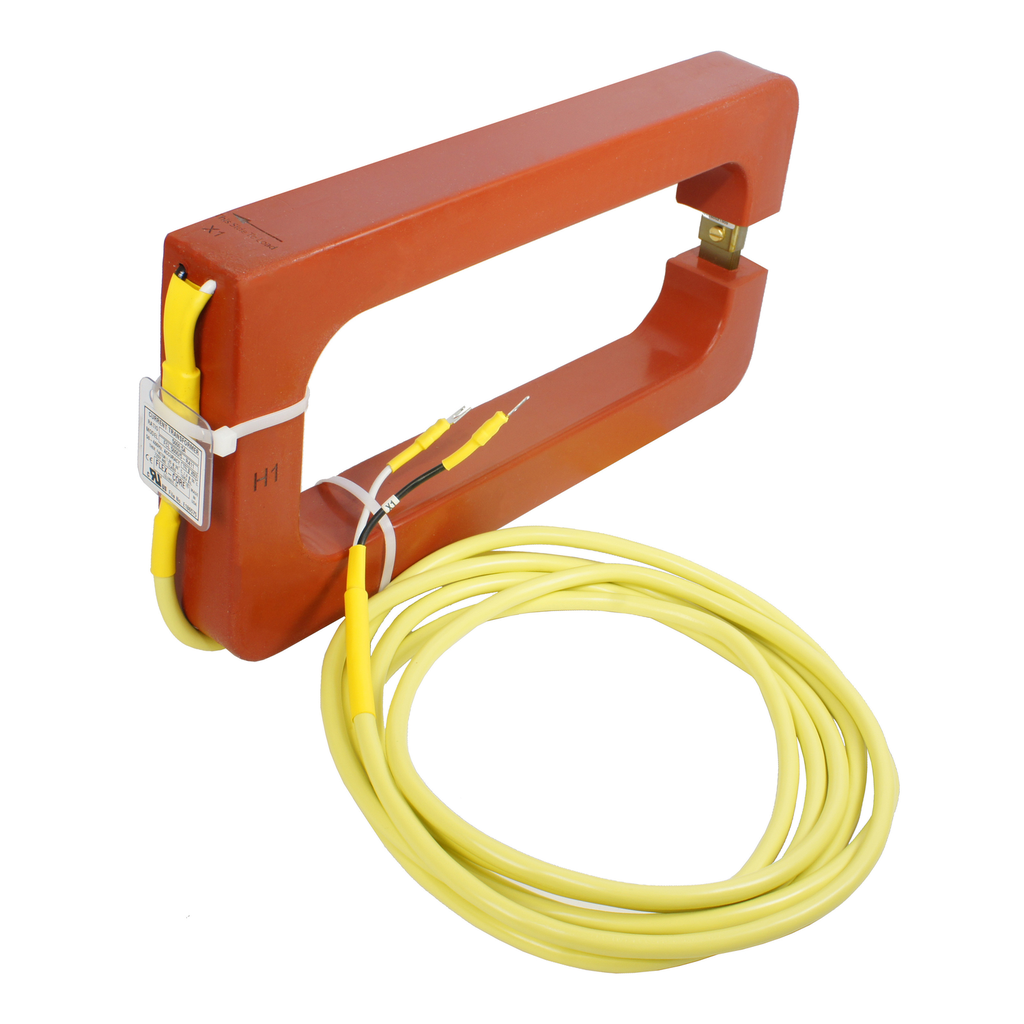

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1000A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
QTY
  • Product Description
  • Features
  • Specifications
This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1000A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
  • Range Compatibility
    • AccuSine AccuSine PCS+ active harmonic filter
    • AccuSine AccuSine PFV+ electronic VAR controller
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • flying lead 3.65 m720 V
  • Continuous Thermal Current Rating Factor
    • 1.25 30 °C
    • 1 55 °C
  • UE Rated Operational Voltage
    • < 720 V AC 50...400 Hz
  • UIMP Rated Impulse Withstand Voltage
    • 10 kV (50 µs)
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=424840706&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-09
    • Device Type : Transformer - current transformer
    • Serviceability : No
    • Traceability : No
    • Scope Perimeter : At least in Europe
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2523
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Current Transformer Ratio : 1000/1
    • Current Transformer Type : split core
    • Energy Efficiency Optimized : False
    • Measurement Accuracy : 1 %
    • Package Weight Lbs : 2.0 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : current transformer
    • Range : AccuSine
    • Returnability : No
    • Secondary Current : 1 A
    • Sustainable Packaging : No
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • Specifications
    • Country of Origin : United States
    • Height : 6.62 in
    • Width : 2.75 in
    • Depth : 0 in
  • General Attributes
    • Product Or Component Type : current transformer
