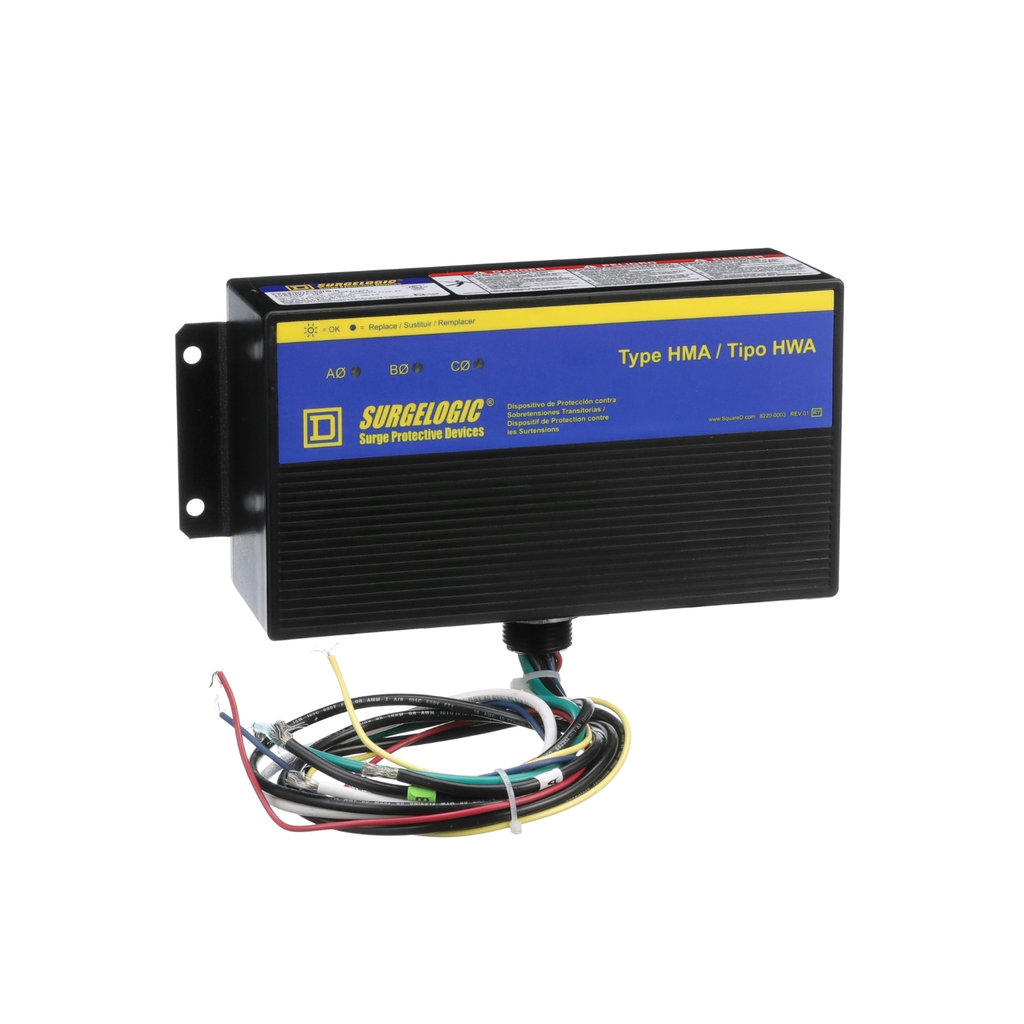

The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS2HWA10X is three phase, four wire, 280

• Connections Terminals
• wire phase and neutral AWG 10 copper
• wire ground AWG 10 copper
• wi
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• UL 1449:ed. 4
• UL 1283:ed. 5
• CSA C22.2 No 8:1986
• Ue Rated Operational Voltage
• 208Y/120 V AC
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• LC
• OM
• Local Signalling
• status LED green per phase normal operation
• status LED red per phase fault
• status LED red p
• Enclosure Material
• Black Plastic
• Surge Current
• 100 kA per phase

• Physical Attributes
• Cable Length : 33.6 in
• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 150 V
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Surge protection device, Surgelogic, HWA, 100kA, 208Y/120VAC, 3 phase, 4 wire, NEMA 4X
• B2B Bullet Point 2 : Bending radius for side and bottom access to the transformer
• B2B Bullet Point 3 : Product characteristics conformity is certified by UL
• B2B Bullet Point 4 : Product characteristics conformity is certified by UL
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2024
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Hub : SESA485151-Marshall, Eric
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 2
• Device Short Name : HWA
• Mounting Location : bottom of enclosure
• Nominal Discharge Current : 20 kA
• Number Of Poles : 2
• Package Weight Lbs : 2.222 kg
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 200 kA
• Sustainable Packaging : No
• Wiring Configuration : 4-wire
• General Attributes
• Phase : 3 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267983507&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : 65-65 °C
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 10 years
• Warranty : 10 years
• Specifications
• Country of Origin : Mexico
• Height : 4.8 in
• Width : 8.62 in
• Depth : 3.11 in
