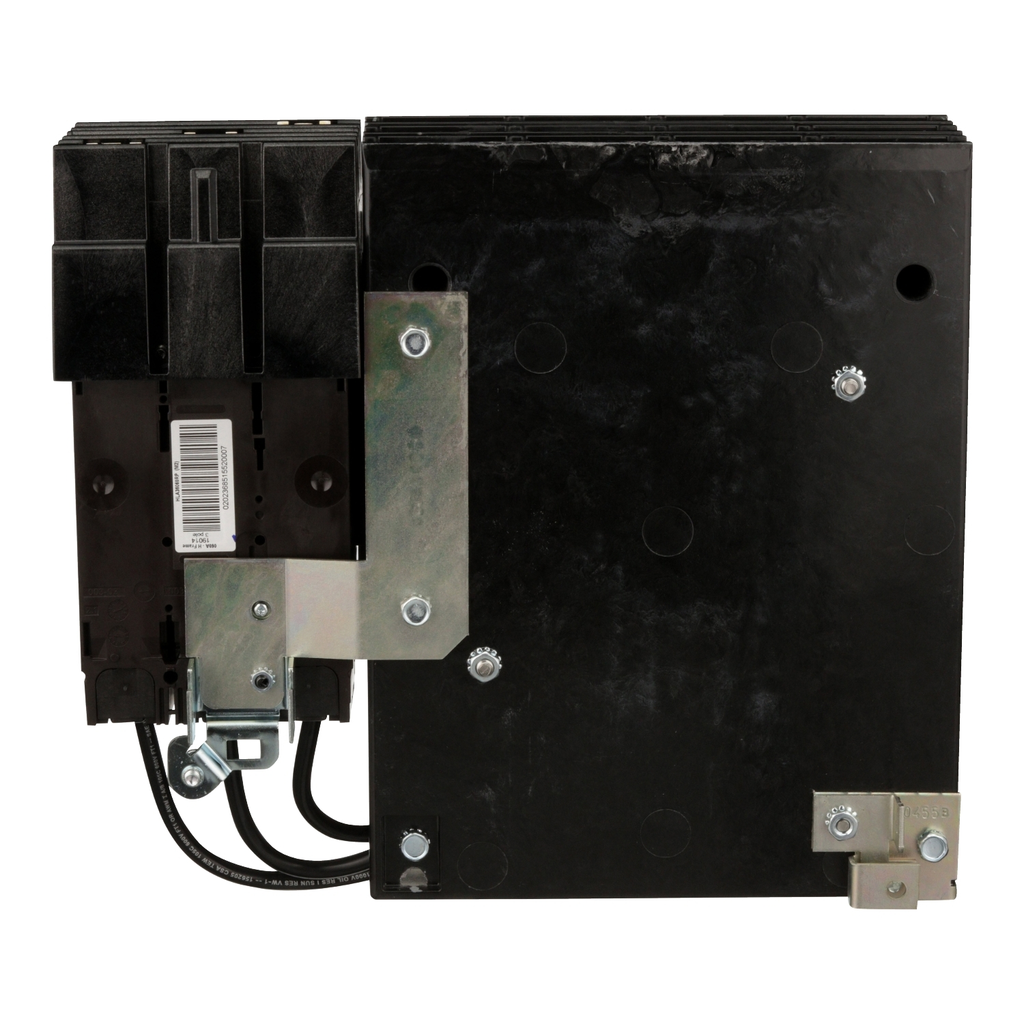

Surgelogic™ EMA and EBA series SPDs offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1

• Connections Terminals
• I-Line line
• lugs ground AWG 6 copper 4 N.m
• lugs neutral AWG 6 copper 4 N.m
• lugs neutra
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Provided Equipment
• alarm enable/disable switch
• surge counter
• circuit-breaker
• Standards
• UL 1449:ed. 3
• UL 1283:ed. 5
• CSA C22.2 No 8:1986
• UL 96A:ed. 12
• UL 489:ed. 11
• CSA C22.2 No 5-09
• Ue Rated Operational Voltage
• 208Y/120 V AC
• Accessories
• S29450
• S29451
• S29452
• S29370
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• LC
• OM
• Local Signalling
• status LED green per phase normal operation
• status LED red per phase fault
• status LED red p

• Physical Attributes
• Cable Length : 483 mm
• Complementary Attributes
• Line Rated Current : 60 A
• Uc Maximum Continuous Operating Voltage : 150 V
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Installs in two minutes or less
• B2B Bullet Point 2 : Easy field mounting and retrofitting
• B2B Bullet Point 3 : Audible, visual and remote signaling
• B2B Bullet Point 4 : Manages both thermal and high current events
• B2B Bullet Point 5 : Advanced diagnostics
• B2B Bullet Point 6 : Flexible design with removable bolt on modules and customizable configuration
• B2B Bullet Point 7 : Complies with UL 1449 and 1283 and CSA C22.2
• B2B Bullet Point 8 : Flexible design with removable bolt on modules and customizable configuration
• B2B Bullet Point 9 : Flexible design with removable bolt on modules and customizable configuration
• B2B Bullet Point 10 : Flexible design with removable bolt on modules and customizable configuration
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-09
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 10 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2508025
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2531
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. CELL : ≤ 1g AND > 4 Cells in Package
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 2
• H And D Offer Quality Leader : Used In
• H And Docp Responsible(Pm/Co) : I-Line panel factory assembly and field installation
• Device Short Name : IMA
• Energy Efficiency Optimized : False
• Mounting Support : panel mounting
• Number Of Poles : 3
• Package Weight Lbs : 10.064 kg
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 200 kA
• Sustainable Packaging : No
• Trip Unit Technology : thermal-magnetic
• Wiring Configuration : 4-wire
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Surge Protection And Filtering Attributes
• Surge Current : 240 kA
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267979022&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2508025
• Environmental Disclosure : ENVPEP2508025
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 2
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 12.16 in
• Width : 13.46 in
• Depth : 5.59 in
