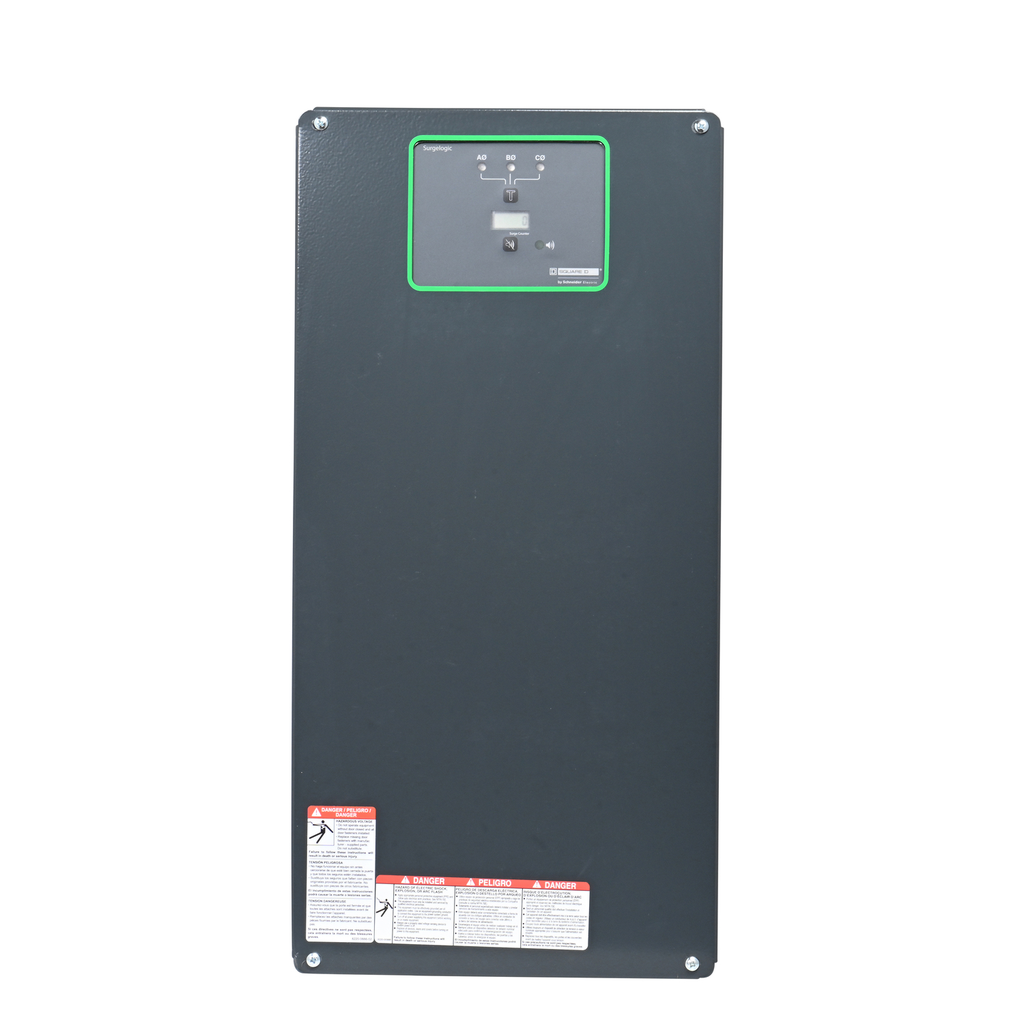

Surge protection device, Surgelogic, 240kA, 600 VAC delta, 3 phase, 3 wire, NEMA 1

SURGE PROTECTION DEVICE, SURGE

SQDSSP09EMA24 SSP09EMA24 SQDSSP09EMA24
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection device, Surgelogic, 240kA, 600 VAC delta, 3 phase, 3 wire, NEMA 1-2
  • Cable Length: 483 mm
  • Country of Origin: USA
  • Depth: 5.31 in
  • Height: 11.1 in
  • Nominal Discharge Current: 10 kA
  • Width: 9.98 in
Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 240,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distributi
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 240,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distributi
  • Connections Terminals
    • lugs AWG 10...AWG 2 copper 4 N.m
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Provided Equipment
    • alarm enable/disable switch
    • surge counter
    • dry contacts
  • Standards
    • CSA C22.2 No 8
    • UL 1449:ed. 4
    • UL 1283:ed. 5
  • Ue Rated Operational Voltage
    • 600 V delta AC
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Persona Type Ids
    • EU
    • LC
    • OM
  • Local Signalling
    • status LED green per phase normal operation
    • status LED red per phase fault
    • status LED red p
  • Enclosure Material
    • Gray painted sheet steel
  • Physical Attributes
    • Cable Length : 483 mm
  • Complementary Attributes
    • Uc Maximum Continuous Operating Voltage : 840 V
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Type 1 SPD configuration
    • B2B Bullet Point 2 : NEMA 1 or 4X rating
    • B2B Bullet Point 3 : Audible, visual, and remote signaling
    • B2B Bullet Point 4 : Fuse Technology for thermal and high current events
    • B2B Bullet Point 5 : Flexible for line or load side
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 844
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. CELL : ≤ 1g AND > 4 Cells in Package
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Hub : SESA485151-Marshall, Eric
    • H And D Domain : Safety
    • H And D Subrange : SPD NEMA
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : SPD
    • H And D Enrichment Class 3 : Surge protection devices
    • H And D Enrichment Class 4 : SPD Type 1
    • Device Short Name : EMA
    • Nominal Discharge Current : 10 kA
    • Package Weight Lbs : 9.299 kg
    • Phase : 3 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : surge protection device
    • Range Of Product : Surgelogic
    • Returnability : No
    • Short Circuit Protection : 200 kA
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : surge protection device
    • Range Of Product : Surgelogic
  • Surge Protection And Filtering Attributes
    • Surge Current : 240 kA
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465328871&lang=en-us
    • Take Back : No
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 65-65 °C
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : NEMA 1
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
    • Height : 11.1 in
    • Width : 9.98 in
    • Depth : 5.31 in
