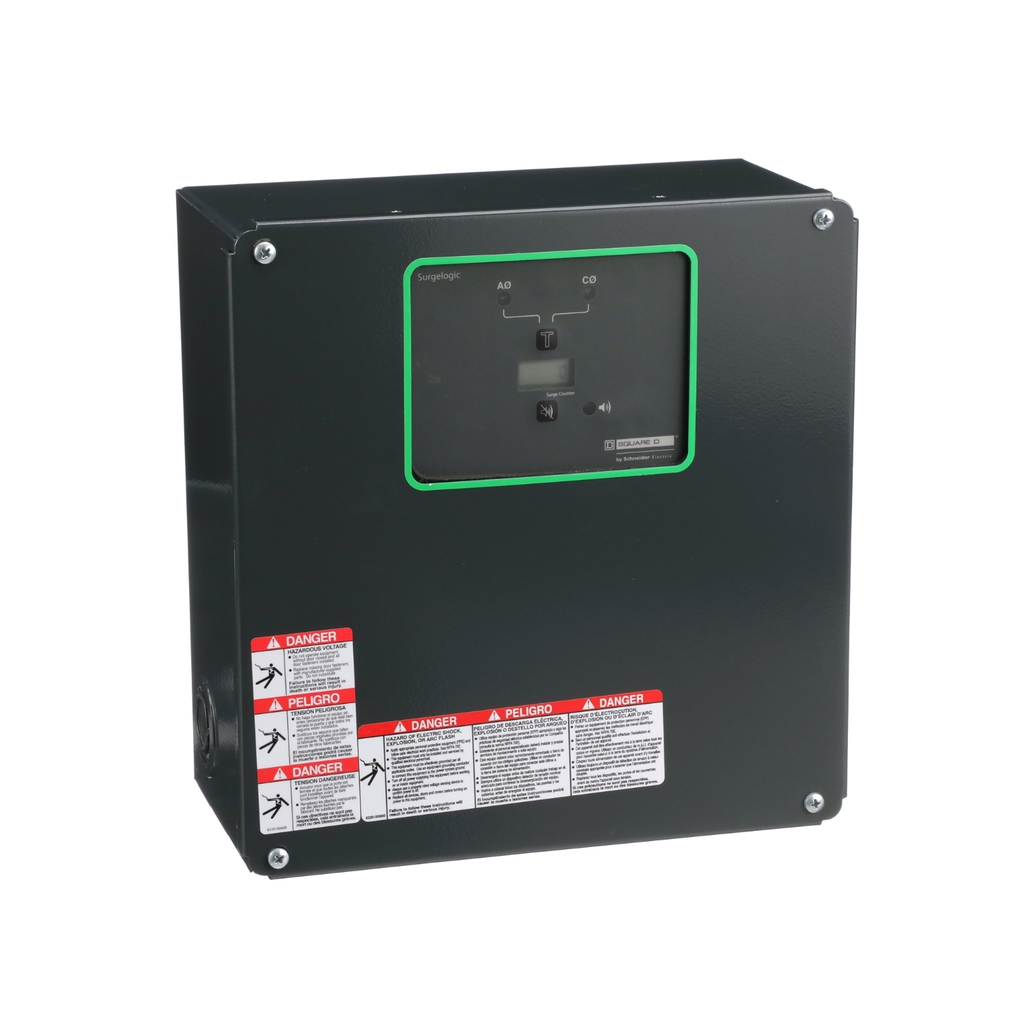

Surge protection device, Surgelogic, 160kA, 120/240 VAC, 1 phase, 3 wire, NEMA 1

SPD T1 EMA 160KA 120/240V 1P3W

SQDSSP01EMA16 SSP01EMA16 785901565932
1522.65 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection device, Surgelogic, 160kA, 120/240 VAC, 1 phase, 3 wire, NEMA 1-1
Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
QTY
  • Product Description
  • Specifications
Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
  • Complementary
    • Height : 282 mm
    • Connections - Terminals : lugs AWG 10...AWG 2 copper 4 N.m
    • Cable Length : 483 mm
    • Provided Equipment : alarm enable/disable switch || surge counter || dry contacts
    • Surge Current : 160 kA
    • Nominal Discharge Current : 20 kA
    • Phase : 1 phase
    • Local Signalling : status LED green per phase normal operation || status LED red per phase fault
    • Short-Circuit Protection : 200 kA
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • Wiring Configuration : 3-wire
    • Width : 253.5 mm
    • Depth : 135 mm
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Device Mounting : surface
  • Specifications
    • Country of Origin : Mexico
    • Length : 483 mm
    • Width : 253.5 mm
    • Height : 282 mm
    • Range Of Product : Surgelogic
    • Product Or Component Type : surge protection device
    • Device Short Name : EMA
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Compliant with Exemptions
  • Environment
    • Ambient Air Temperature For Operation : 65-65 °C
    • Standards : CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
    • Nema Degree Of Protection : NEMA 1
    • Enclosure Material : Gray painted sheet steel
