Cable Length:
483 mm
-
Depth:
238.8 mm
-
Enclosure Material:
Stainless Steel
-
Height:
575.8 mm
-
Mounting Type:
Surface
-
Number of Phases:
3
-
Standard:
CSA C22.2 No 8, UL 1283:ed. 5, UL 1449:ed. 4
-
Width:
297.2 mm

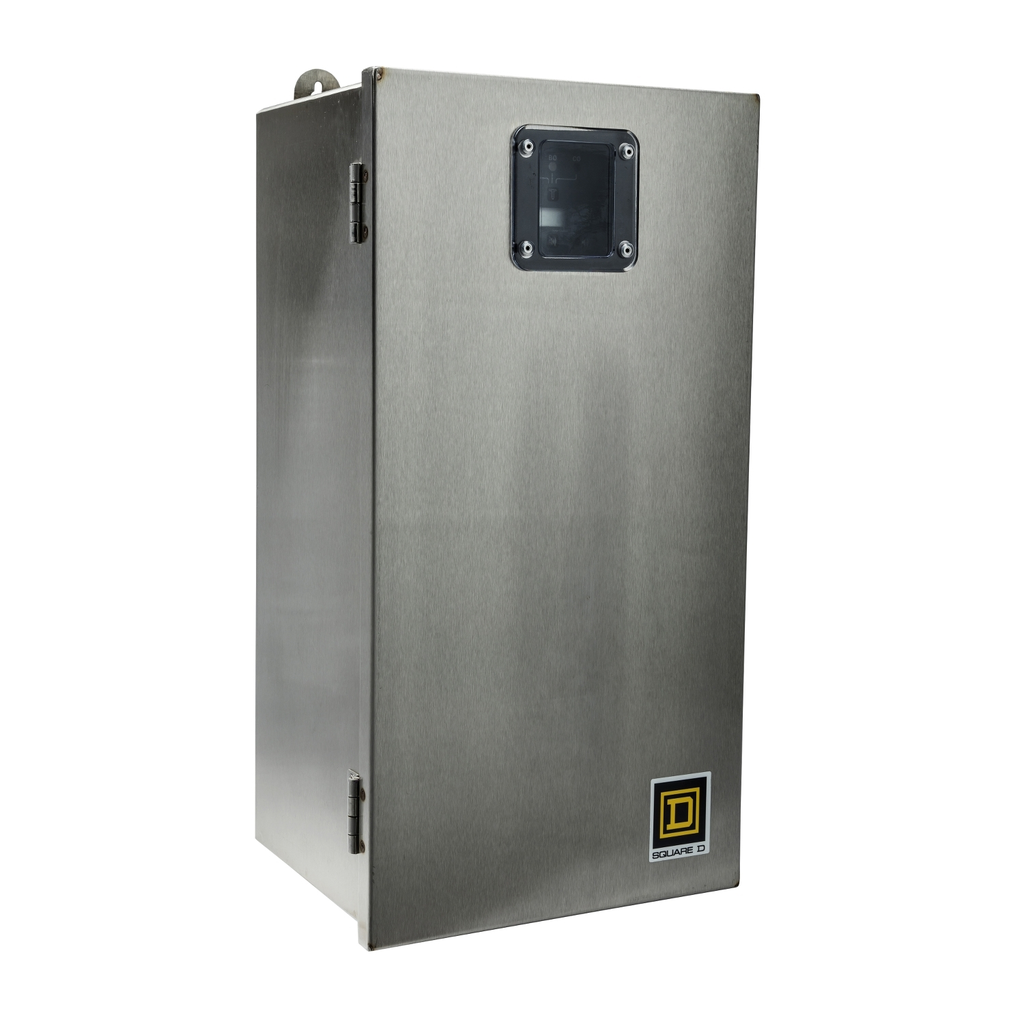

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a durable modular package. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. It has 10 year product warranty.
