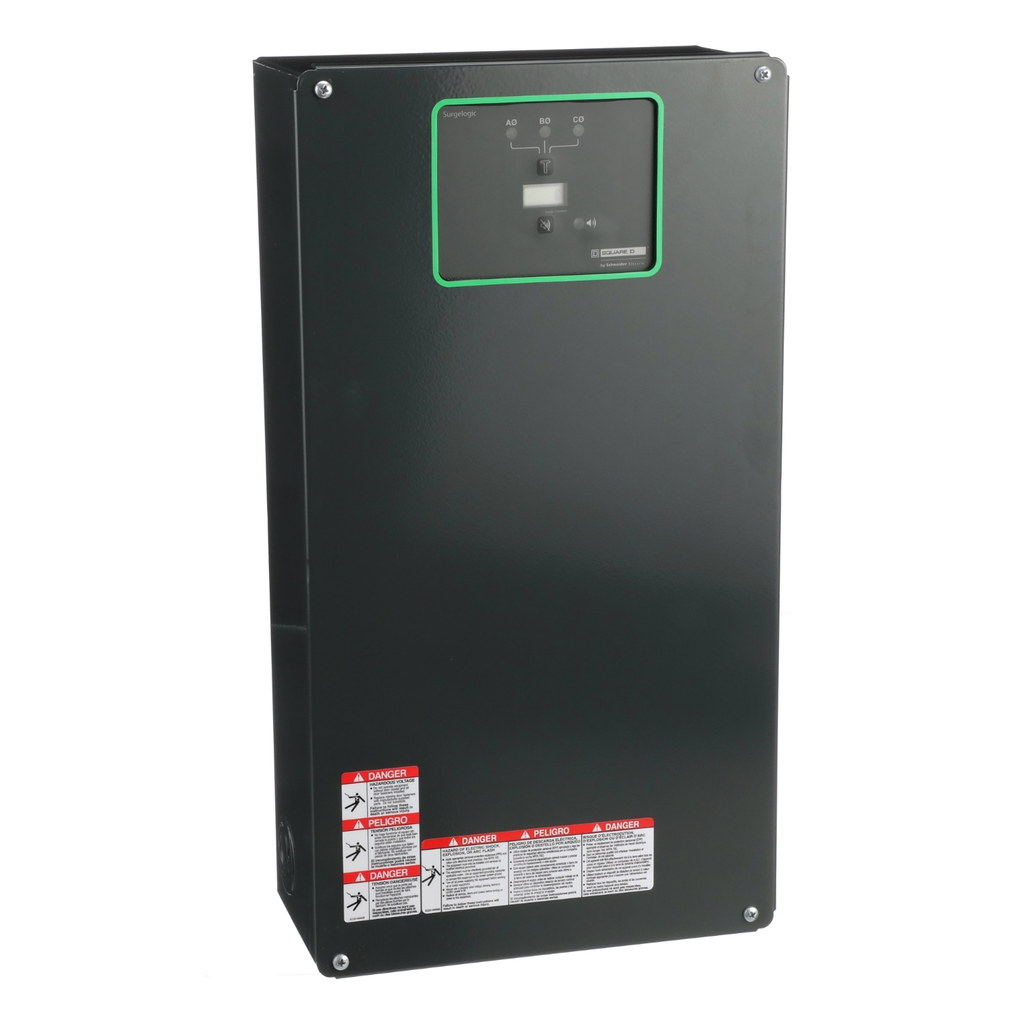

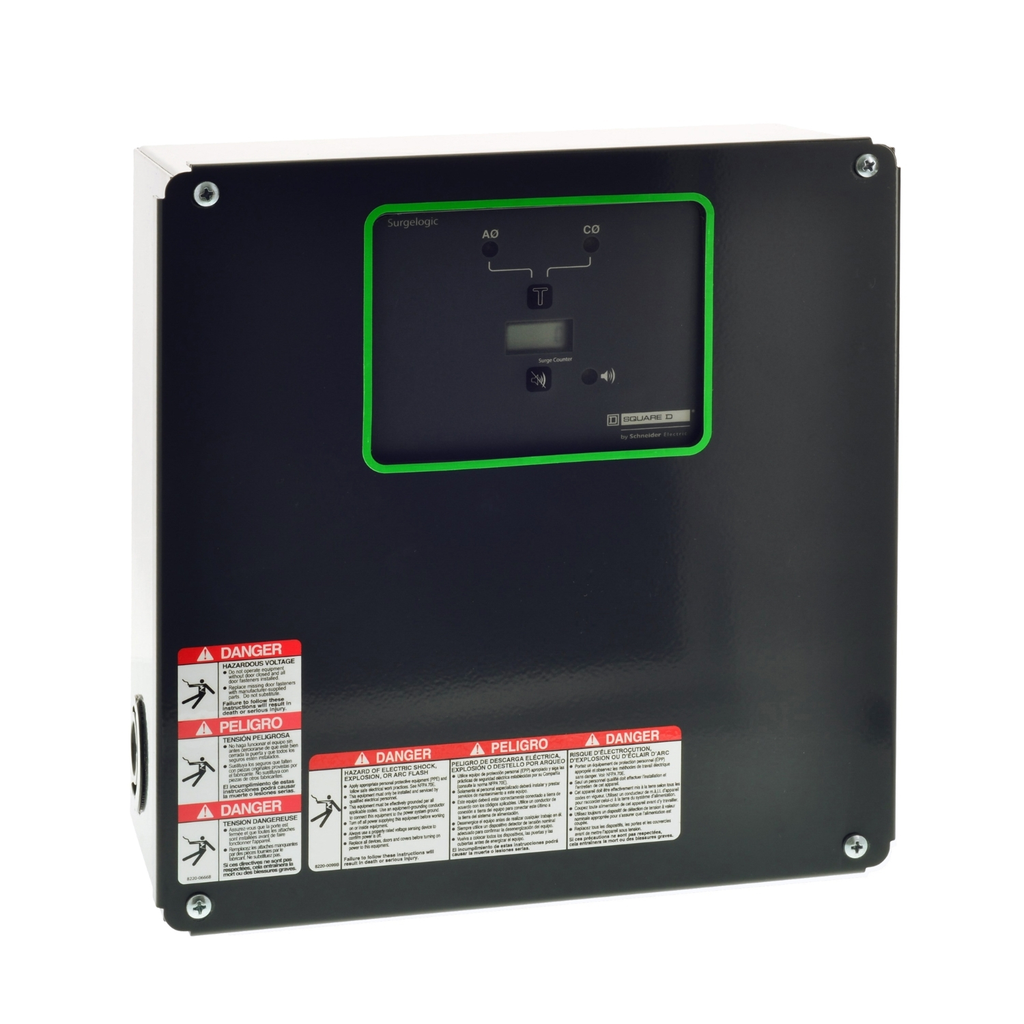

Surgelogic™ Type EMA Series surge protective devices deliver specification grade performance for service entrance or critical branch panel applications. These multi-phase surge suppression systems provide transient suppression, noise filtration in a dura

• Connections Terminals
• lugs AWG 10...AWG 2 copper 4 N.m
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Provided Equipment
• alarm enable/disable switch
• surge counter
• sine wave tracking module
• dry contacts
• Standards
• CSA C22.2 No 8
• UL 1449:ed. 4
• UL 1283:ed. 5
• Ue Rated Operational Voltage
• 480Y/277 V AC
• Persona Type Names
• End User
• Contractor
• Persona Type Ids
• EU
• LC
• Local Signalling
• status LED green per phase normal operation
• status LED red per phase fault
• status LED red p
• Enclosure Material
• Gray painted sheet steel

• Physical Attributes
• Cable Length : 483 mm
• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 320 V
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Type 1 SPD configuration
• B2B Bullet Point 2 : NEMA 1 or 4X rating
• B2B Bullet Point 3 : Audible, visual, and remote signaling
• B2B Bullet Point 4 : Fuse Technology for thermal and high current events
• B2B Bullet Point 5 : Flexible for line or load side
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 10 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 844
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. CELL : ≤ 1g AND > 4 Cells in Package
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Hub : SESA485151-Marshall, Eric
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 2
• Device Short Name : EMA
• Nominal Discharge Current : 20 kA
• Package Weight Lbs : 9.299 kg
• Phase : 3 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Returnability : Yes
• Short Circuit Protection : 200 kA
• Sustainable Packaging : No
• Wiring Configuration : 4-wire
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : surge protection device
• Range Of Product : Surgelogic
• Surge Protection And Filtering Attributes
• Surge Current : 120 kA
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=455794590&lang=en-us
• Take Back : No
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Ambient Air Temperature For Operation : 65-65 °C
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 1
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 19.49 in
• Width : 9.88 in
• Depth : 5.31 in
