Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X, disconnect switch

SURGE PROTECTION DEVICE, SURGE

SQDSSP02EMA12SD SSP02EMA12SD SQDSSP02EMA12SD
1844.09 / EA
http://schema.org/OutOfStock

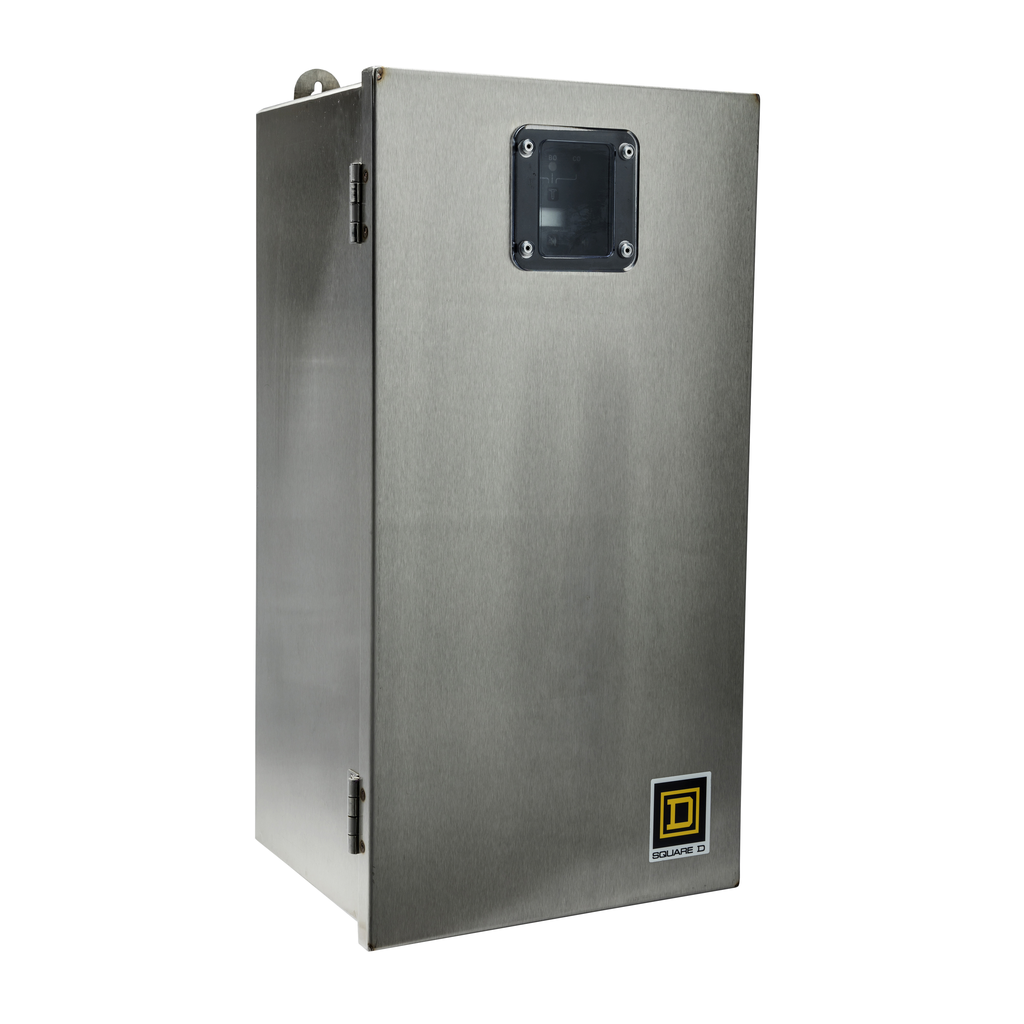

Mayer-DDS-Surge protection device, Surgelogic, 120kA, 208Y/120 VAC, 3 phase, 4 wire, NEMA 4X, disconnect switch-1
  • Cable Length: 483 mm
  • Depth: 238.8 mm
  • Enclosure Material: Stainless Steel
  • Height: 575.8 mm
  • Length: 483 mm
  • Line Rated Current: 150 A
  • Mounting Type: Surface
  • Number of Phases: 3
  • Number of Poles: 3
  • Standard: CSA C22.2 No 8, UL 1283:ed. 5, UL 1449:ed. 4
  • Width: 297.2 mm
Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 120,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distribution and branch panel applications. Being modular in design, this unit is able to achieve superior surge suppression at every level of the electrical distribution system. This unit provides surge suppression from service entrance panels to point-of-use equipment. This product is UL and CSA certified.
QTY
  • Product Description
  • Specifications
Surgelogic™ Type EMA systems are external surgical protection devices with a focus on individual phase modules. With a surge current rating of 120,000 Amps, enhanced EMI/RFI filtering of -54 dB at 100 kHz is possible to increase performance at distribution and branch panel applications. Being modular in design, this unit is able to achieve superior surge suppression at every level of the electrical distribution system. This unit provides surge suppression from service entrance panels to point-of-use equipment. This product is UL and CSA certified.
  • Complementary
    • Height : 575.8 mm
    • Local Signalling : status LED green per phase normal operation || status LED red per phase fault
    • Connections - Terminals : lugs AWG 10...AWG 3/0 copper 4 N.m
    • Short-Circuit Protection : 200 kA
    • Cable Length : 483 mm
    • Provided Equipment : alarm enable/disable switch || surge counter || switch-disconnector with integrated switch for off/on/automatic || dry contacts
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • Line Rated Current : 150 A
    • Surge Current : 120 kA
    • Wiring Configuration : 4-wire
    • Width : 297.2 mm
    • Depth : 238.8 mm
    • Nominal Discharge Current : 20 kA
    • Phase : 3 phase
    • Number Of Poles : 3
    • [Ue] Rated Operational Voltage : 208Y/120 V AC
    • Device Mounting : surface
  • Specifications
    • Length : 483 mm
    • Width : 297.2 mm
    • Height : 575.8 mm
    • Range Of Product : Surgelogic
    • Product Or Component Type : surge protection device
    • Device Short Name : EMA
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : 65-65 °C
    • Nema Degree Of Protection : NEMA 4X
    • Enclosure Material : Stainless Steel
    • Standards : CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
