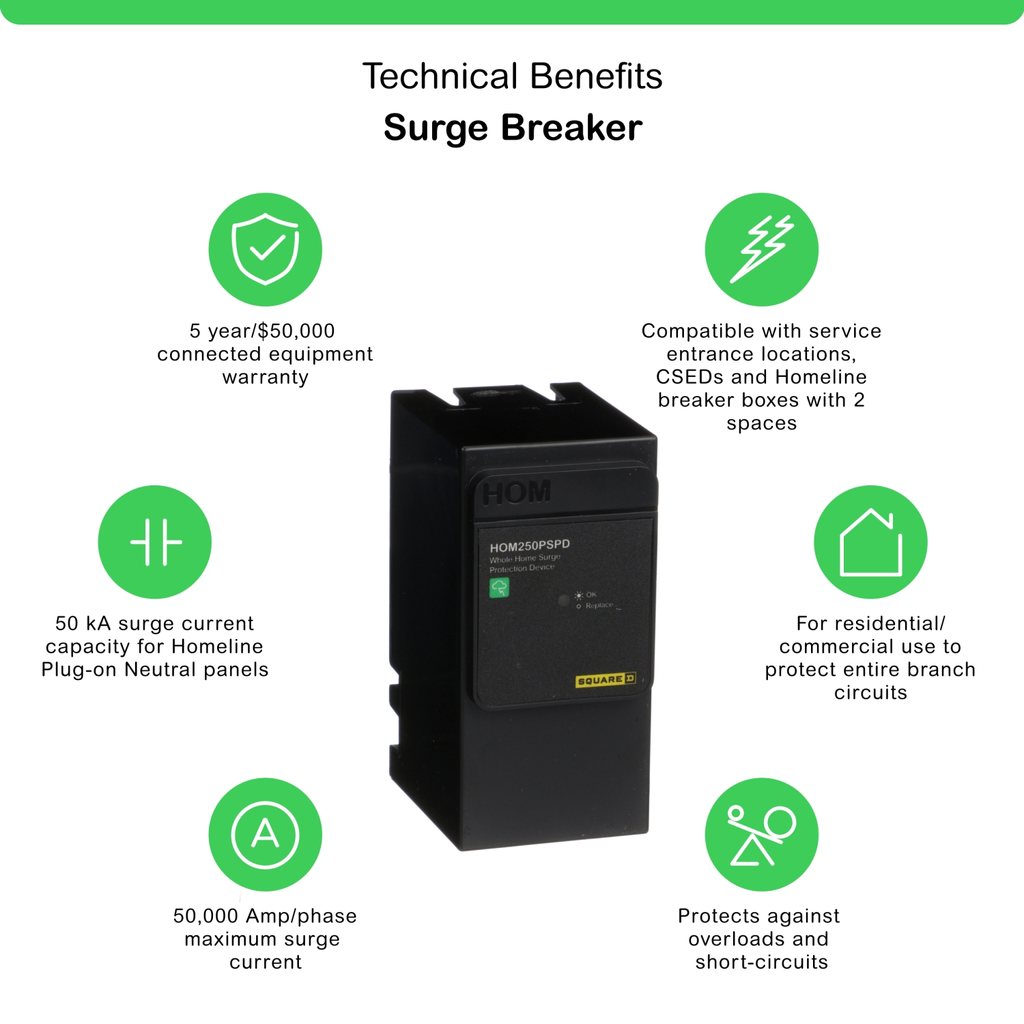

Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This is a plug on neutral surge protective device for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 150 V
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, LC, OM, SC
• Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
• Certificate Agency : UL 1449:ed. 4, CSA C22.2 No 269.1
• Carbon Footprint Of The Distribution Phase A4 : 0.056278, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.03983
• Carbon Footprint Of The Installation Phase A5 : 0.0050837, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.063827
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 75 kg CO2 eq., 75.429
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-25
• Return Indicator : Y
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Use Carbon Footprint : 75.429
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1706014EN
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2531
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Enclosure Material : Black Plastic
• Energy Efficiency Optimized : False
• Nominal Discharge Current : 20 kA
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : surge protection device
• Range Of Product : Homeline
• Returnability : Yes
• Software Version : EIME v5.5
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 76 kg CO2 eq.
• Wiring Configuration : 3-wire
• Connections Terminals : plug in phase and neutral
• Database Version : 2016-11
• Data Source : referent product
• Height Nominal : 101 mm
• Width Nominal : 50 mm
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8536308000
• Short Circuit Protection : 22 kA
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 75.594
• Warranty In Months : 18
• Product Weight In G : 221
• Packaging Weight In G : 53.8
• Functional Unit Description : Protect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with a rated operational voltage up to 1000 V AC or 1500 V DC.
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 108.624
• Recyclability Potential In % : 41
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 75.594
• Ambient Air Temperature For Operation : 65-65 °C
• Circularity Profile : ENVEOLI1706014EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 2
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Pep Verification Date : 2017-06-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : surge protection device
• Range Of Product : Homeline
• Surge Protection And Filtering Attributes
• Surge Current : 50 kA
• Specifications
• Country of Origin : Mexico
• Depth : 66 mm
