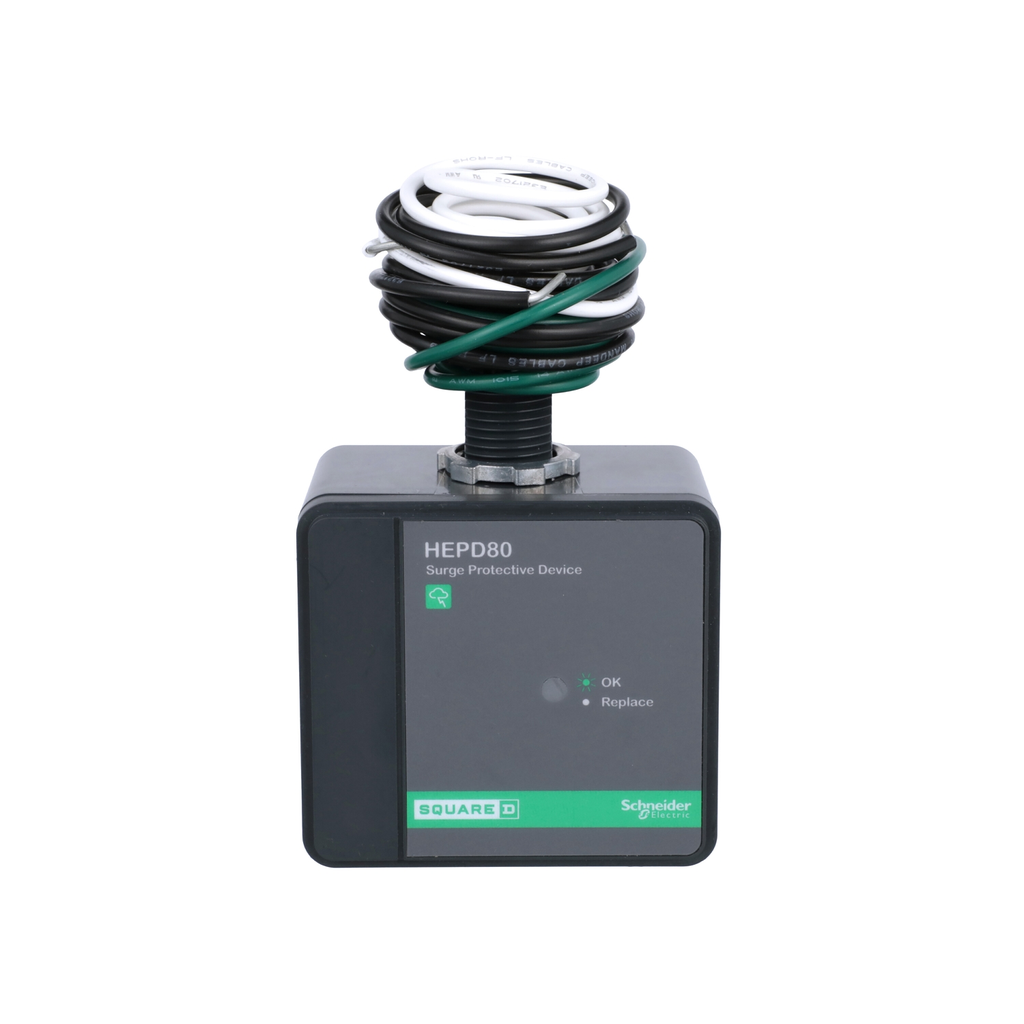

Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1

SPD T1 HEPD 80KA 120/240V1P3W

SQDHEPD80 HEPD80 785901008729
192.70 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1-1
  • Cable Length: 34 in
  • Depth: 2.10 in
  • Enclosure Material: Non Metallic
  • Input Voltage: 1000 V, 600 V, 900 V
  • Nominal Discharge Current: 10 kA
  • Warranty Length: 5 yr
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is UL listed and CSA rated. This product comes with an 5 years warranty.
QTY
  • Product Description
  • Features
  • Specifications
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is UL listed and CSA rated. This product comes with an 5 years warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cable Length : 34 in
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, OM, SC
    • Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
    • Local Signalling : 1 LED green normal operation, 1 LED green off
    • Certificate Agency : UL 1449, cUL, UL 1449:ed. 4: type I
    • Carbon Footprint Of The Distribution Phase [A4] : 0.2077596439627771, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 1 kg CO2 eq., 0.9636368027255402
    • Carbon Footprint Of The Installation Phase [A5] : 0.005336280948537016, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 3 kg CO2 eq., 3.255962081039953
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 236 kg CO2 eq., 235.6685386818315
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
    • Serviceability : No
    • Traceability : No
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2510004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2531
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Device Short Name : HEPD
    • Enclosure Material : non-metallic
    • Energy Efficiency Optimized : False
    • Nominal Discharge Current : 10 kA
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : load center
    • Product Or Component Type : surge protection device
    • Range Of Product : Square D
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 240 kg CO2 eq.
    • Wiring Configuration : 3-wire (isolated ground)
    • Pep Code : ENVPEP2510004EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-10-27
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional-unit Description : Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Consumption On Product Lifetime, In Kwh : 525.6
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 9
    • Height Nominal : 3.23 in
    • Width Nominal : 3.72 in
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Connections - Terminals : wire 14 AWG
    • Short-circuit Protection : 25 kA
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 433.180 g
    • Take-back : No
    • Warranty (In Months) : 18
    • Customs Code : 8536308000
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Ambient Air Temperature For Operation : -40-65 °C, -40-65 °C
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 240.10123349050832
    • Circularity Profile : ENVEOLI2510004EN
    • Environmental Disclosure : ENVPEP2510004EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 4X
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2510004EN
    • Pep Verification Date : 2025-10-27
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : surge protection device
    • Range Of Product : Square D
  • Surge Protection And Filtering Attributes
    • Surge Arrester Type : electrical distribution network
    • Surge Current : 80 kA per phase
  • Contractual Warranty Attributes
    • Warranty Period : 5 years
    • Warranty : 5 years
  • Input Attributes
    • Input Voltage : 600 V L-N, 600 V L - G, 1000 V L - L, 900 V N - G
  • Specifications
    • Country of Origin : Mexico, United States, ZZ
    • Depth : 2.10 in
