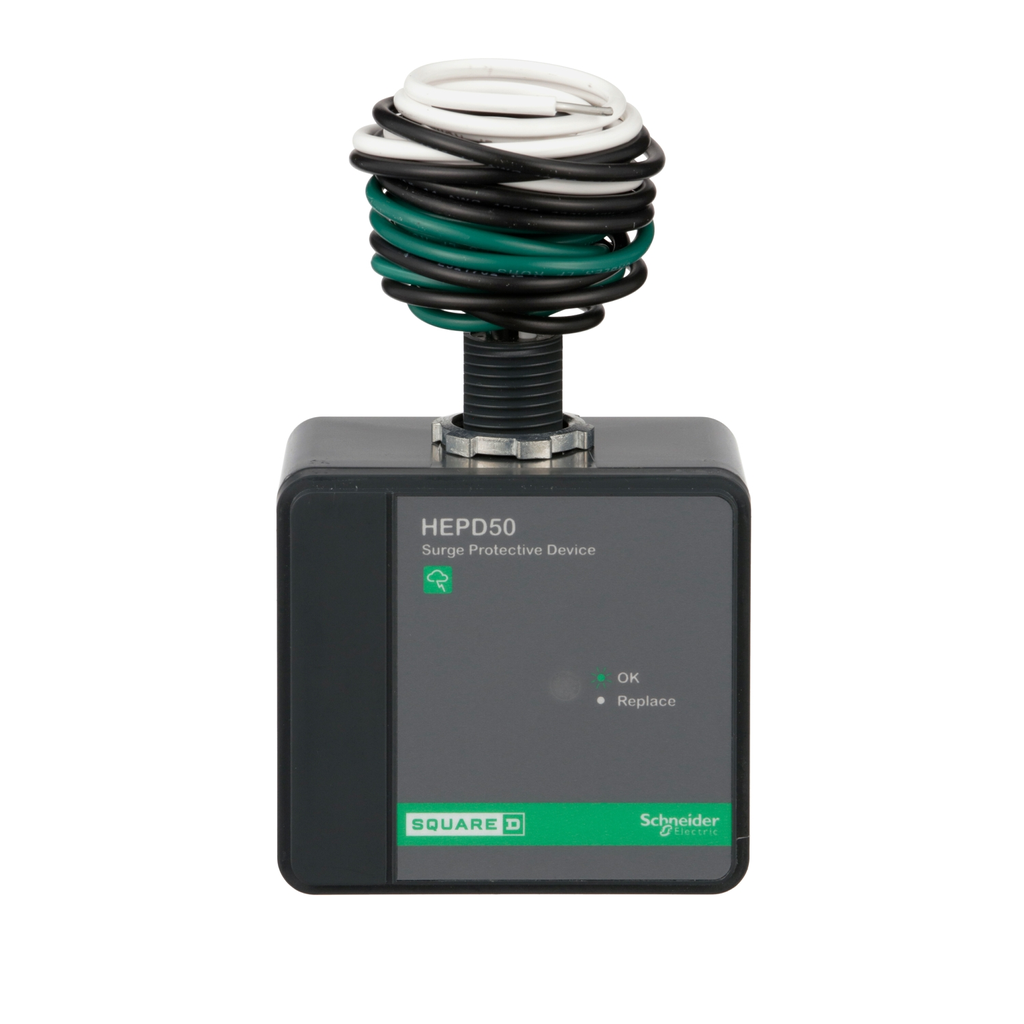

HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not co

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• UL 1449
• cUL
• UL 1449:ed. 4: type II
• Ue Rated Operational Voltage
• 120/240 V AC
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Input Voltage
• 600 V L-N
• 600 V L - G
• 1000 V L - L
• 900 V N - G
• Local Signalling
• 1 LED green normal operation
• Surge Current
• 50 kA per phase

• Complementary Attributes
• Uc Maximum Continuous Operating Voltage : 150 V
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Surge protection device, HEPD, 50kA, 120/240 V, 1 phase, 3 wire, SPD type 1
• B2B Bullet Point 2 : Bending radius for side and bottom access to the transformer
• B2B Bullet Point 3 : Product characteristics conformity is certified by UL
• B2B Bullet Point 4 : Product characteristics conformity is certified by UL
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-18
• Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
• Serviceability : No
• Traceability : No
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2531
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : SPD NEMA
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : SPD
• H And D Enrichment Class 3 : Surge protection devices
• H And D Enrichment Class 4 : SPD Type 1
• Device Short Name : HEPD
• Energy Efficiency Optimized : False
• Nominal Discharge Current : 10 kA
• Package Weight Lbs : 408.233 g
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Destination : load center
• Product Or Component Type : surge protection device
• Range Of Product : Square D
• Returnability : Yes
• Short Circuit Protection : 25 kA
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Wiring Configuration : 3-wire (isolated ground)
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : surge protection device
• Range Of Product : Square D
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=461452039&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -35-65 °C
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 4X
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Specifications
• Country of Origin : Mexico
• Height : 3.23 in
• Width : 3.72 in
• Depth : 2.10 in
