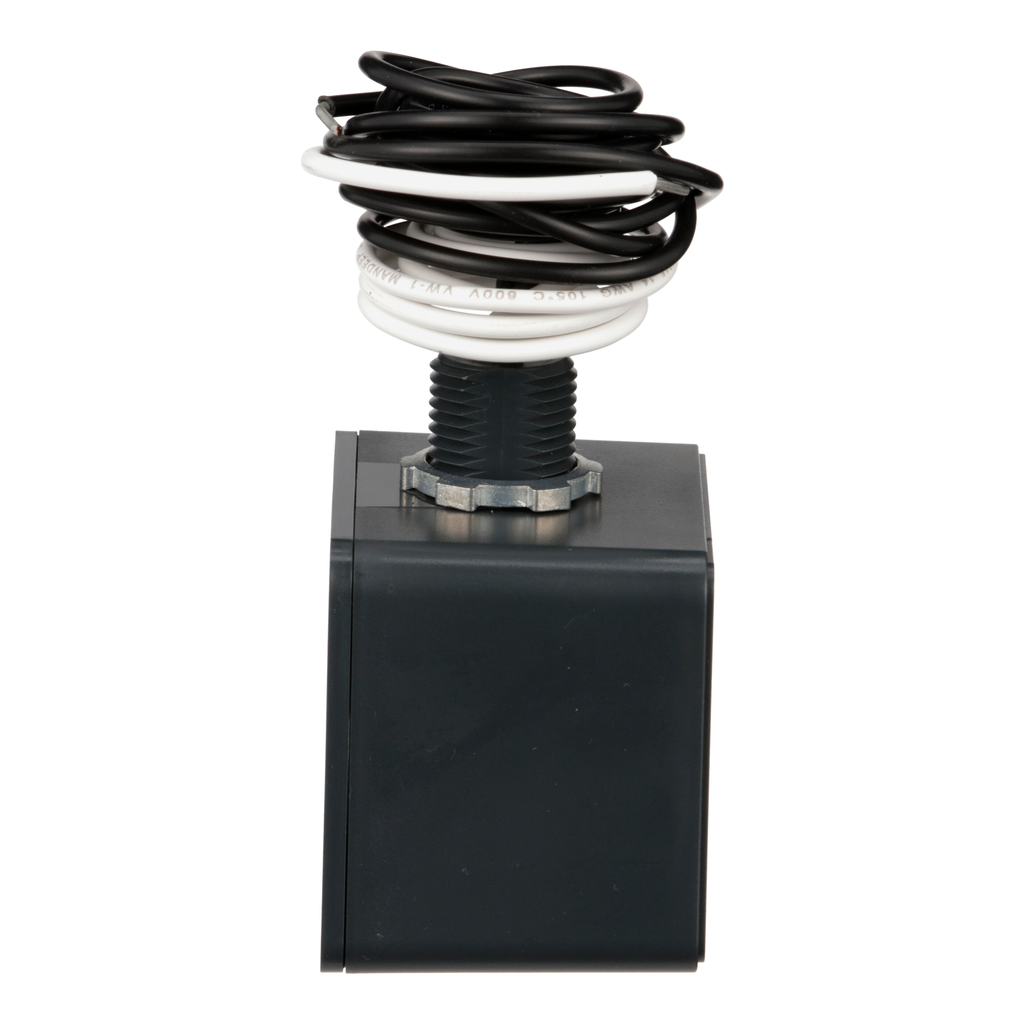

Surge protection device, HEPD, 25kA, 120/240 V, 1 phase, 3 wire, SPD type 1, wholesale

SURGE PROTECTION DEVICE, HEPD,

SQDHEPD25W HEPD25W 785901479758
69.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surge protection device, HEPD, 25kA, 120/240 V, 1 phase, 3 wire, SPD type 1, wholesale-1
QTY
  • Specifications
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 2.45 in
    • Surge Current : 25 kA per phase
    • Nominal Discharge Current : 10 kA
    • Type Of Packing : wholesale
    • Phase : 1 phase
    • Product Destination : load center
    • Input Voltage : 600 V L-N
    • Local Signalling : 1 LED green normal operation
    • Short-Circuit Protection : 22 kA
    • [Uc] Maximum Continuous Operating Voltage : 150 V
    • Wiring Configuration : 3-wire (isolated ground)
    • Width : 2.89 in
    • Depth : 2.06 in
    • [Ue] Rated Operational Voltage : 120/240 V AC
  • Specifications
    • Country of Origin : United States
    • Width : 2.89 in
    • Height : 2.45 in
    • Range Of Product : Square D
    • Product Or Component Type : surge protection device
    • Device Short Name : HEPD
  • Environment
    • Nema Degree Of Protection : NEMA 4X
