Square D™ load center surge protective devices, SDSA1175FE, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Height : 2.45 in
• Surge Current : 25 kA per phase
• Nominal Discharge Current : 10 kA
• Phase : 1 phase
• Product Destination : load center
• Input Voltage : 600 V L-N
• Local Signalling : 1 LED green normal operation
• Short-Circuit Protection : 22 kA
• [Uc] Maximum Continuous Operating Voltage : 150 V
• Width : 2.89 in
• Wiring Configuration : 3-wire (isolated ground)
• Depth : 2.06 in
• [Ue] Rated Operational Voltage : 120/240 V AC
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
• Specifications
• Country of Origin : Mexico
• Width : 2.89 in
• Height : 2.45 in
• Range Of Product : Square D
• Product Or Component Type : surge protection device

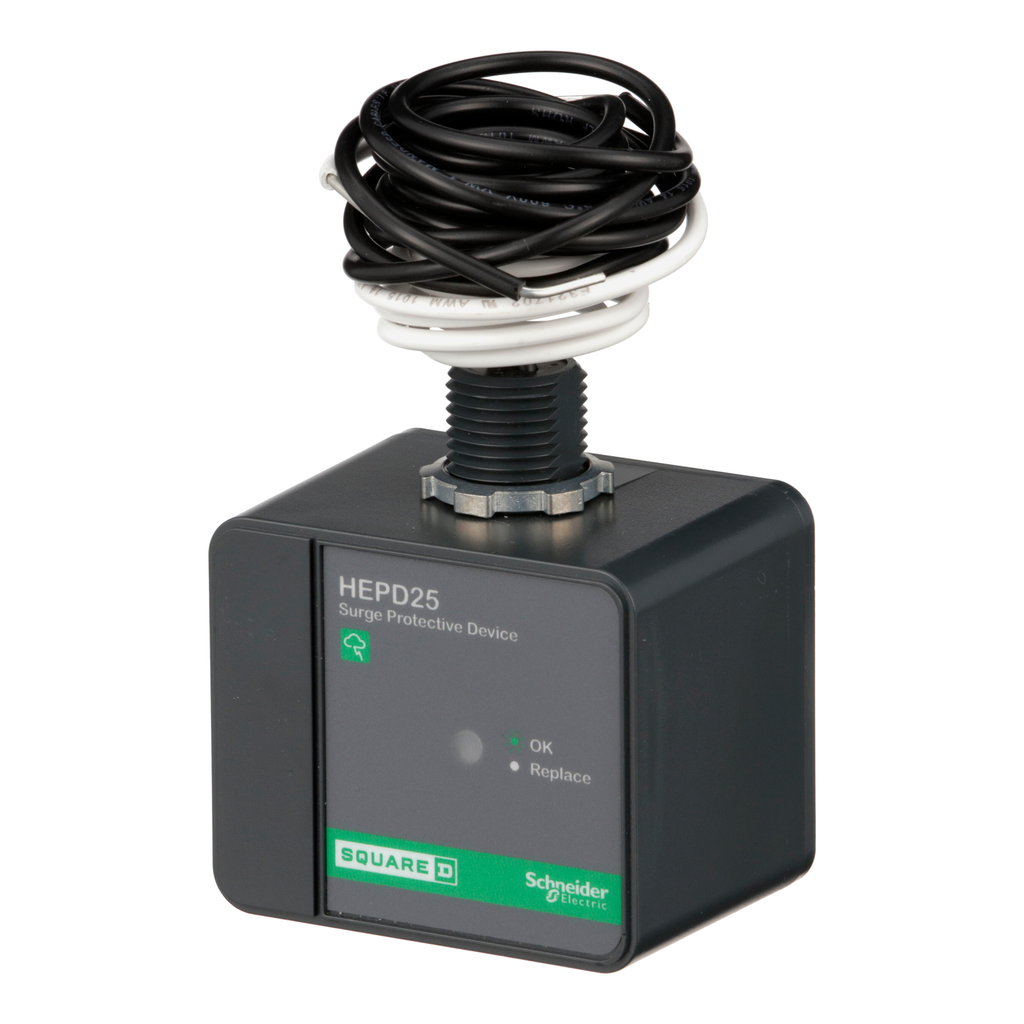

• Device Short Name : HEPD
• Environment
• Nema Degree Of Protection : NEMA 4X
