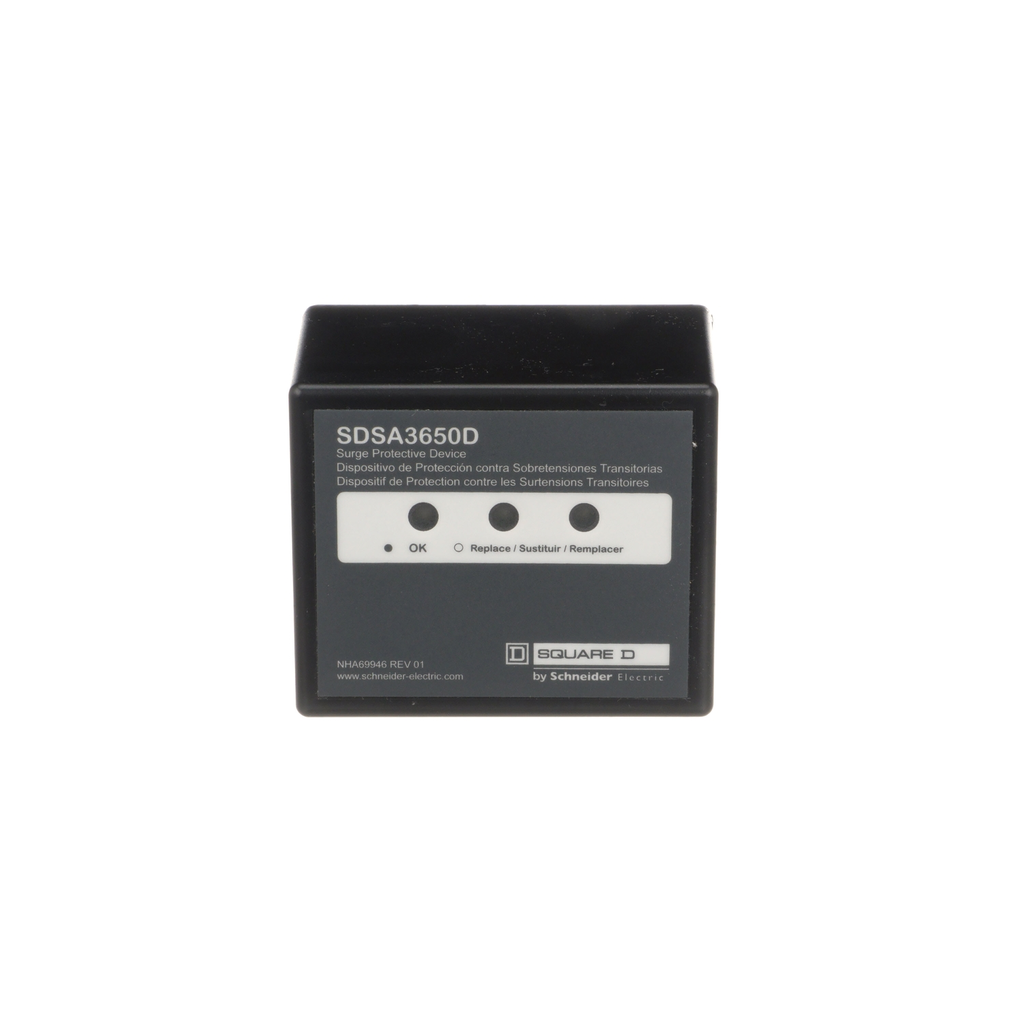

Surge protection device, Surgelogic, 50kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X

GEN SDSA 3650 DELTA

SQDSDSA3650D SDSA3650D 785901927563
274.85 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Surge protection device, Surgelogic, 50kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X-2
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 600VAC delta three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. SPD are three phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 600VAC delta three phase systems. Securing up to 50kA surge current per phase. This surge protection device is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • UL 1449:ed. 4: type I
    • NEC 285: type I
    • CSA C22.2 No 8
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • OM
    • SC
  • Local Signalling
    • status LED green normal operation
  • UE Rated Operational Voltage
    • 600 V delta AC
  • Enclosure Material
    • Black Plastic
  • Surge Current
    • 40 kA per phase
  • Important Information Attributes
    • B2B Bullet Point 1 : Surge protection device, Surgelogic, 50kA, 600 VAC delta, 3 phase, 4 wire, NEMA 4X
    • B2B Bullet Point 2 : Protects against accidental shocks through the use of touch-safe terminals
    • B2B Bullet Point 3 : Conforms to the electrical characteristics in the data sheet by UL
    • B2B Bullet Point 4 : Product characteristics conformity is certified by UL
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : SURGE SUPPRESSOR, 40KA, 600V
    • Manufacturer : Schneider Electric
    • Device Type : Surge Protection and Power Conditioning - Surge Protection Devices
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : PPIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : SPD NEMA
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : SPD
    • H And D Enrichment Class 3 : Surge protection devices
    • H And D Enrichment Class 4 : SPD Type 1
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 771.107 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : surge protection device
    • Range Of Product : Surgelogic
    • Returnability : Yes
    • Sustainable Packaging : No
    • Wiring Configuration : 3-wire
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : surge protection device
    • Range Of Product : Surgelogic
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=402916867&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
