Insulation Resistance Tester

INSULATION RESISTANCE TESTER

KLNET600 ET600 092644692420
240.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-Insulation Resistance Tester-2
  • Applications: 1000 V, Continuity, Installation, Preventive Maintenance Of Electrical Wiring And Electrical Equipment, Resistance, Troubleshooting
  • Depth: 7.940 in
  • Display Type: LCD
  • Height: 2.420 in
  • Material: ABS, Polycarbonate
  • Type: Insulation Resistance Tester
  • Voltage: 1000 V, 125 V, 250 V, 500 V
  • Weight: 1.062 lb
  • Width: 3.590 in

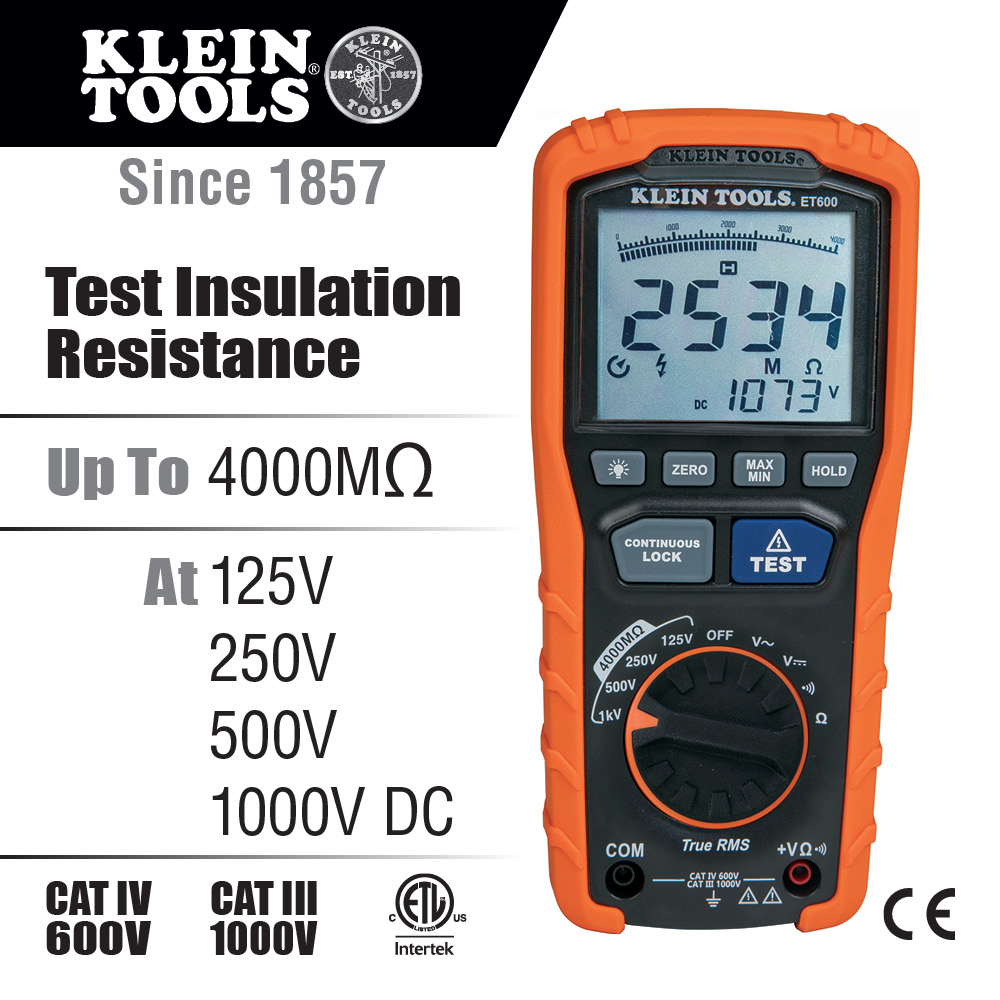

The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.
QTY
  • Product Description
  • Features
  • Specifications
The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.
  • Features
    • Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
    • Megohmmeter with test and lock buttons for simple insulation testing
    • Warning alarm and high voltage icon for detection of voltage
    • Measures up to 1000V AC/DC, resistance, and continuity
    • Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
    • Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
    • Low battery indicator with easily replaceable battery and fuse
    • Built-in stand and optional magnetic hanger for hands free operation
    • Test verification of conformity to EN61557-1,-2,-4
    • CAT IV 600V and CAT III 1000V safety rating
    • Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
    • Lock Button for Insulation Resistance Testing
  • Warnings
    • Read, understand, and follow all warnings and instructions before operating testers.
    • Do not attempt to measure insulation resistance, resistance, or continuity on live circuits.
    • Before each use verify meter operation by measuring known voltage.
    • Do not use meter during electrical storms or in wet weather.
    • Use only CAT III/CAT IV safety rated test leads. Do use the meter if test leads appear to be damaged.
  • Specifications
    • Material : ABS, Polycarbonate, Electrical Components
    • Color : Orange/Black
    • Included : Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
    • Display : 4000 Count LCD
    • Ohms (Resistance) : 400kΩ
    • Voltage : 125V, 250V, 500V, and 1000V DC; 1000V AC/DC
    • Standard : CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4
    • Type : Insulation Resistance Tester
    • Application : Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
    • Functions : Insulation Resistance, Voltage AC/DC, Resistance, and Continuity
    • Batteries : 6 x AA
    • Overall Width (Inch) : 3.59
    • Weight (g) : 635
    • Overall Length (Inch) : 7.93
    • Weight (oz) : 22.4
    • Overall Height (cm) : 5.9
    • Overall Length (cm) : 20.1
    • Overall Width (cm) : 9.1
    • Overall Height (Inch) : 2.32
    • Height : 2.4200 in
    • Width : 3.5900 in
    • Depth : 7.9400 in
    • Weight : 1.0620 lbs
