SQUARE D

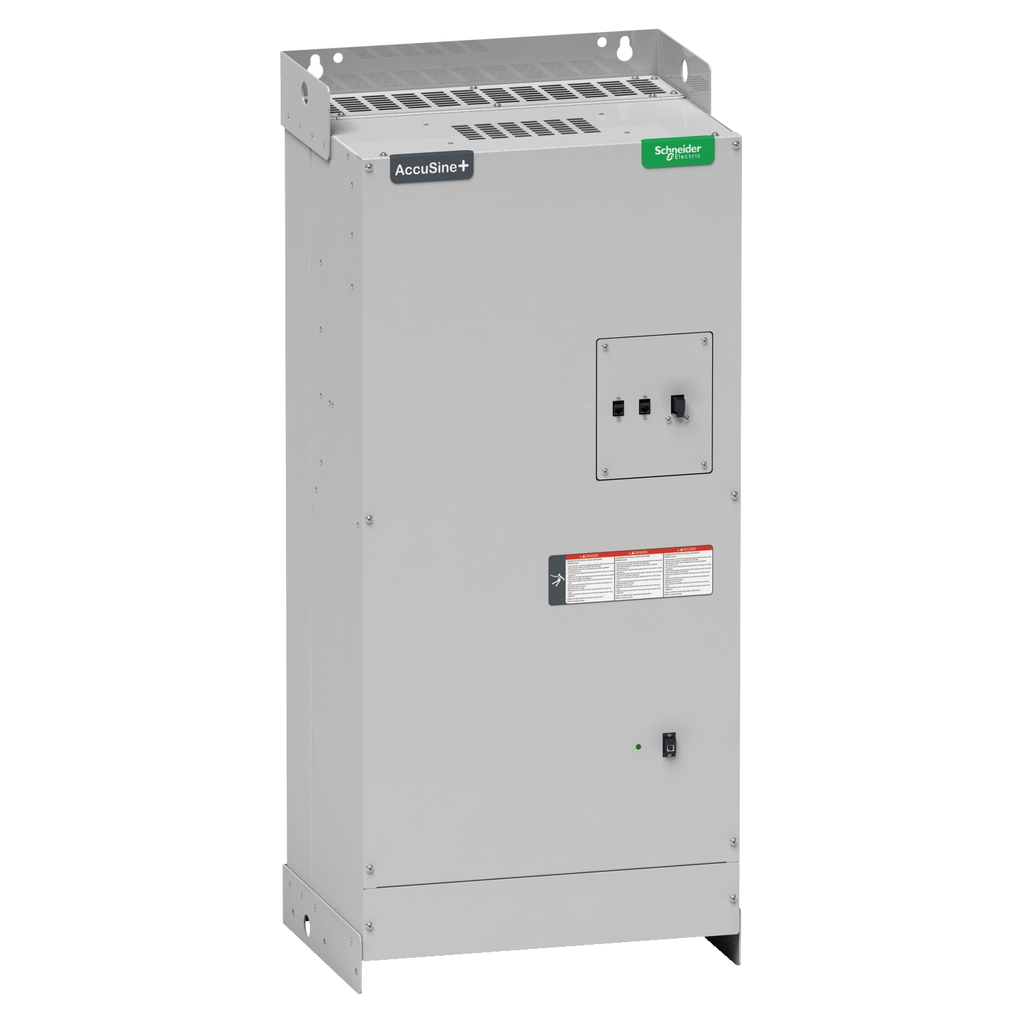

Electronic VAR control - 200 A 380..480 V AC - IP00 enclosure

ELECTRONIC VAR CONTROL - 200 A

SQDEVCP200D5IP00 EVCP200D5IP00 3606480851568
106891.46 / EA
http://schema.org/OutOfStock
Mayer-DDS-Electronic VAR control - 200 A 380..480 V AC - IP00 enclosure-2
  • Warranty Length: 18 mth
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1323 millimetres in height and product weight 171 kg.
QTY
  • Product Description
  • Features
  • Specifications
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 200 Amps. The enclosure is wall mounted, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 582 millimetres in width, 438 millimetres in depth, 1323 millimetres in height and product weight 171 kg.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : Light gray RAL 7035)
  • Complementary Attributes
    • Network Rated Voltage : 380-480 V AC
  • Important Information Attributes
    • Environmental Characteristic : operating 3C2 IEC 60721-3-3, operating 3S2 IEC 60721-3-3, storage 3C3 IEC 60721-3-3, storage 3S3 IEC 60721-3-3
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Device Type : Surge Protection and Power Conditioning - Filters & Harmonic Conditioners
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 10 year(s)
    • Service Catalog Item : Finished good
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1507014
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Electromagnetic Compatibility : conducted EMC, class A EN 61000-6-4
    • Enclosure Mounting : wall mounted
    • Location Of Connection : bottom
    • Package Weight Lbs : 226.0 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : electronic VAR controller
    • Range : AccuSine
    • Range Of Product : AccuSine
    • Reactive Power Rating : 166 kvar 480 V AC 50/60 Hz
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1507014
    • Product Kit Identifier : N
    • Product Manager : SREEMANT ROY
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-40 °C, 0-50 °C maximum with current derating of 2 % per °C
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • Operating Altitude : <= 3280.84 ft (1000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) 1 % per 100 m
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1507014
    • Environmental Disclosure : ENVPEP1507014
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1507014
  • General Attributes
    • Product Or Component Type : electronic VAR controller
    • Range Of Product : AccuSine
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Frequency : 50/60 Hz +/- 3 % auto-sensing
