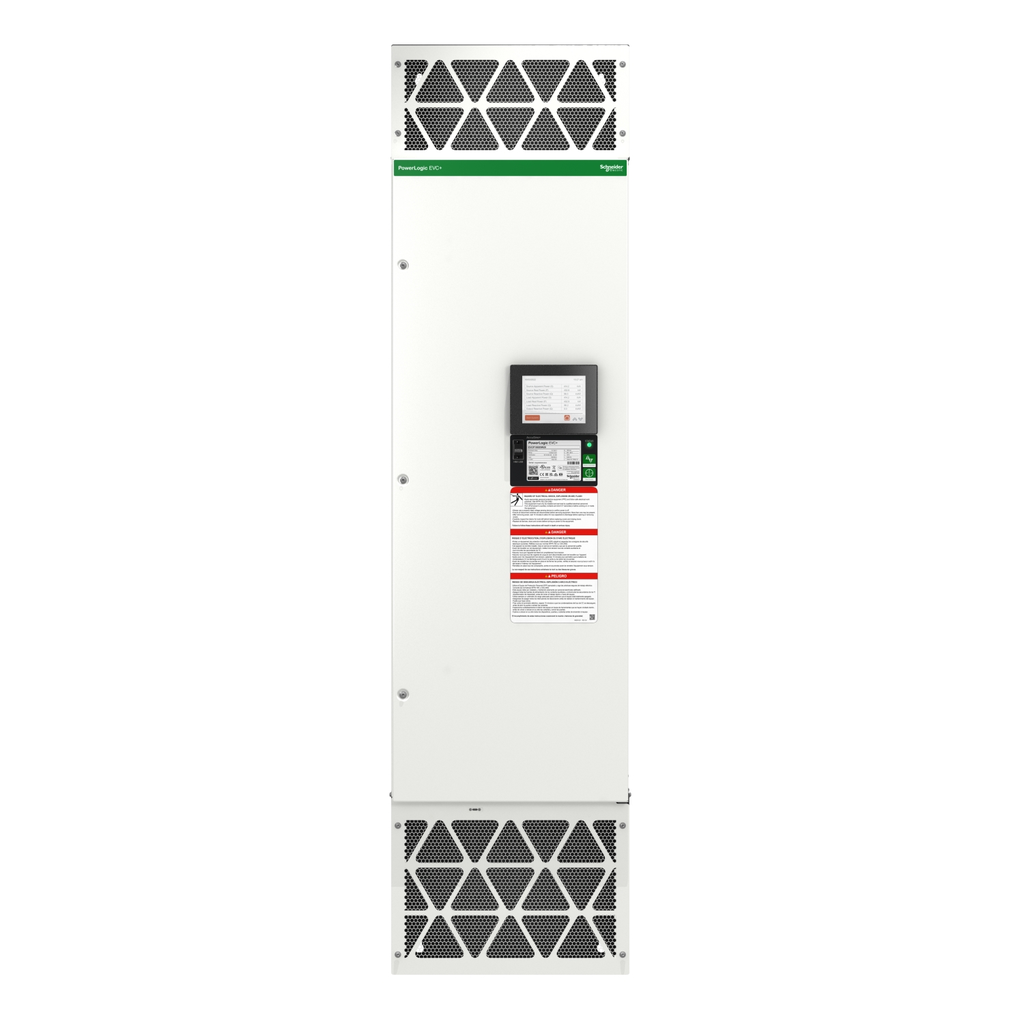

PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. Wall Mount, Scalable (several unit can be connectected in parallel in order to increase the compasation range). Wall-mount, Indoor, Ingress Protection Rating UL Type 1. The dimensions of the enclosure are 1740mm in Height, 445mm in Width, 280mm in Depth, Weight 110kg. Certified for HCAI, CE, UKCA, RCM, UL, CSA and more, plus compliant with IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit on a wall. No side clearance, 200mm clearance for the top, and another 200mm for the bottom. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CE || cULus || RCM
• Height : 1740 mm
• Standards : UL 508 || CSA C22.2 No 14 || ISO 9001 || IEEE 519-2014 || IEC 62477-1 || IEC 61439-1
• Ambient Air Temperature For Operation : 0-50 °C || 50-52 °C maximum with current derating of 2 % per °C
• Environmental Characteristic : operating 3C2 IEC 60721-3-3 || operating 3S2 IEC 60721-3-3 || storage 3C3 IEC 60721-3-3 || storage 3S3 IEC 60721-3-3
• Net Weight : 110 kg
• Impregnation Material : conformal coated
• Relative Humidity : 0-95 %
• Ambient Air Temperature For Storage : -20-60 °C
• Operating Altitude : 3280.84 ft (1000 m) || <= 4800 m 1 % per 100 m || <= 4800 m
• Color : White
• Width : 445 mm
• Depth : 280 mm
• Degree Of Protection : UL type 1
• Complementary
• Accessibility For Operation : front
• Reactive Power Rating : 100 kvar 380 V AC 50/60 Hz || 100 kvar 480 V AC 50/60 Hz || 63 kvar 240 V AC 50/60 Hz || 55 kvar 208 V AC 50/60 Hz
• Network Rated Voltage : 208-480 V AC
• Operating Mode : power factor correction || displacement power factor correction || mains current balancing || phase harmonic correction
• Mounting Location : indoor
• Control Type : electronic
• Electromagnetic Compatibility : emission tests, class A EN 61000-6-4 || immunity for industrial environments EN 61000-6-2
• Function Available : rear plenum with forced ventilation for high heat flow
• Input Frequency : 50/60 Hz +/- 3 % auto-sensing
• Enclosure Mounting : wall mounted
• Poles Description : 3P
• Protection Type : internal by fuse
• Location Of Connection : bottom
• Maximum Permissible Voltage : 1.1 x Un
• Wiring Mode : 3 or 4 wires
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2505014EN
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Scip Number : b8c4ae3f-d4e6-480e-9d31-e612ad50f126
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI2505014EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 206177.43665954485
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 1267.9627705230416
• Carbon Footprint Of The Distribution Phase [A4] : 126 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 8 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 208 ton CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 160.4332865940853
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 207739.3173073404
• Specifications
• Country of Origin : India
• Width : 445 mm
• Height : 1740 mm
• Weight : 110 kg
• Product Or Component Type : electronic VAR compensator
• Product Name : AccuSine EVC+
