SQUARE D

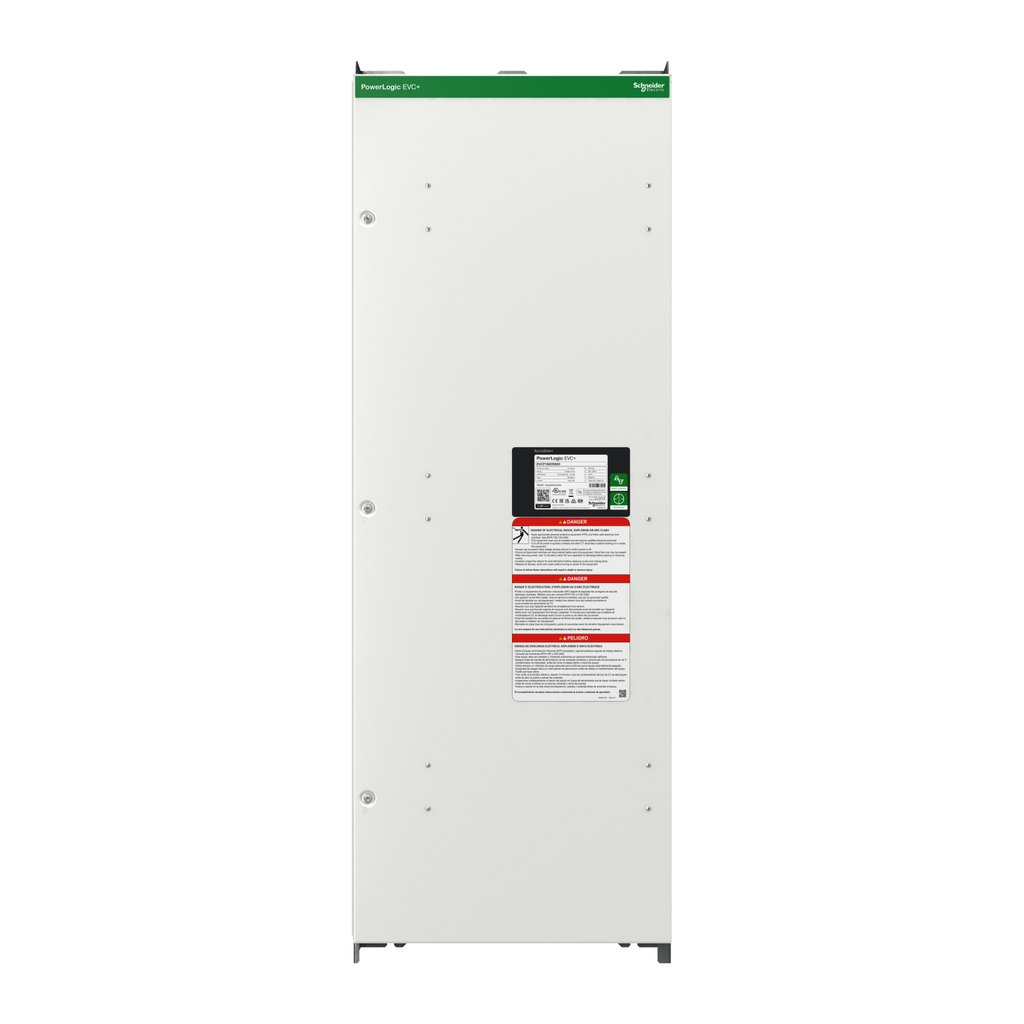

Electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100kvar, 208-480V, IP00 chassis

Electronic VAR compensator/sta

SQDEVCP100D5CH00 EVCP100D5CH00 3606482047983
14476.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Electronic VAR compensator/static VAR generator, PowerLogic AccuSine EVC+, 100kvar, 208-480V, IP00 chassis-1
  • Country of Origin: India
  • Depth: 265 mm
PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. To be used by OEM (provided in an IP00 / UL open chassis) to be installed in a cabinet. To be used by OEM (IP00 / UL Type Open) chassis mount to be installed in a cabinet. The dimensions of the chassis are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Certified for HCAI, CE, UKCA, RCM, UL, CSA and more, plus compliant with IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit in an enclosure. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : White
  • Complementary Attributes
    • Maximum Permissible Voltage : 1.1 x Un
    • Network Rated Voltage : 208-480 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electromagnetic Compatibility : emission tests, class A EN 61000-6-4, immunity for industrial environments EN 61000-6-2
    • Environmental Characteristic : operating 3C2 IEC 60721-3-3, operating 3S2 IEC 60721-3-3, storage 3C3 IEC 60721-3-3, storage 3S3 IEC 60721-3-3
    • Operating Mode : power factor correction, displacement power factor correction, mains current balancing, phase harmonic correction
    • Reactive Power Rating : 100 kvar 380 V AC 50/60 Hz, 100 kvar 480 V AC 50/60 Hz, 63 kvar 240 V AC 50/60 Hz, 55 kvar 208 V AC 50/60 Hz
    • Carbon Footprint Of The Distribution Phase A4 : 135.7451584756734, 136 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 173 kg CO2 eq., 172.94736416365024
    • Carbon Footprint Of The Installation Phase A5 : 8.151464253918276, 8 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 367 kg CO2 eq., 1366.8660891703255
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 206 ton CO2 eq., 206177.43665954485
    • Certificate Agency : CE, cULus, RCM
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : Surge Protection and Power Conditioning - Filters & Harmonic Conditioners
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • Service Product Group : PQAHF
    • Service Catalog Item : Finished good
    • Weee Scope : In
    • Weee Product Category : 4
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2505014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2151
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Control Type : electronic
    • Enclosure Mounting : tray mounted
    • Energy Efficiency Optimized : False
    • Function Available : rear plenum with forced ventilation for high heat flow
    • Impregnation Material : conformal coated
    • Location Of Connection : bottom
    • Mounting Location : indoor
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : AccuSine EVC+
    • Product Or Component Type : electronic VAR compensator
    • Protection Type : internal by fuse
    • Range : PowerLogic
    • Returnability : Yes
    • Software Version : v6.2.4
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 208 ton CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Wiring Mode : 3 or 4 wires
    • Warranty In Months : 18
    • Pep Code : ENVPEP2505014EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-05-10
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y2 : 10
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; India, IN
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; India, IN
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Recyclability Potential In 2 : 77
    • Offer Owner Code : 190781
    • Pn : 1
    • Height Nominal : 1260 mm
    • Width Nominal : 440 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : 0-50 °C, 50-52 °C maximum with current derating of 2 % per °C
    • Operating Altitude : <= 4800 m 1 % per 100 m, <= 4800 m 1 % per 100 m, <= 4800 m, 3280.84 ft (1000 m), <= 4800 m 1 % per 100 m, <= 4800 m 1 % per 100 m
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 207861.1467356084
    • Ambient Air Temperature For Storage : -20-60 °C
    • Circularity Profile : ENVEOLI2505014EN
    • Environmental Disclosure : ENVPEP2505014EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP00
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Pep Code : ENVPEP2505014EN
    • Pep Verification Date : 2025-05-10
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : electronic VAR compensator
  • ETIM
    • ETIM 8 : EC002758
    • ETIM 9 : EC002758
  • Input Attributes
    • Input Frequency : 50/60 Hz +/- 3 % auto-sensing
  • Specifications
    • Country of Origin : India
    • Depth : 265 mm
