KLEIN TOOLS

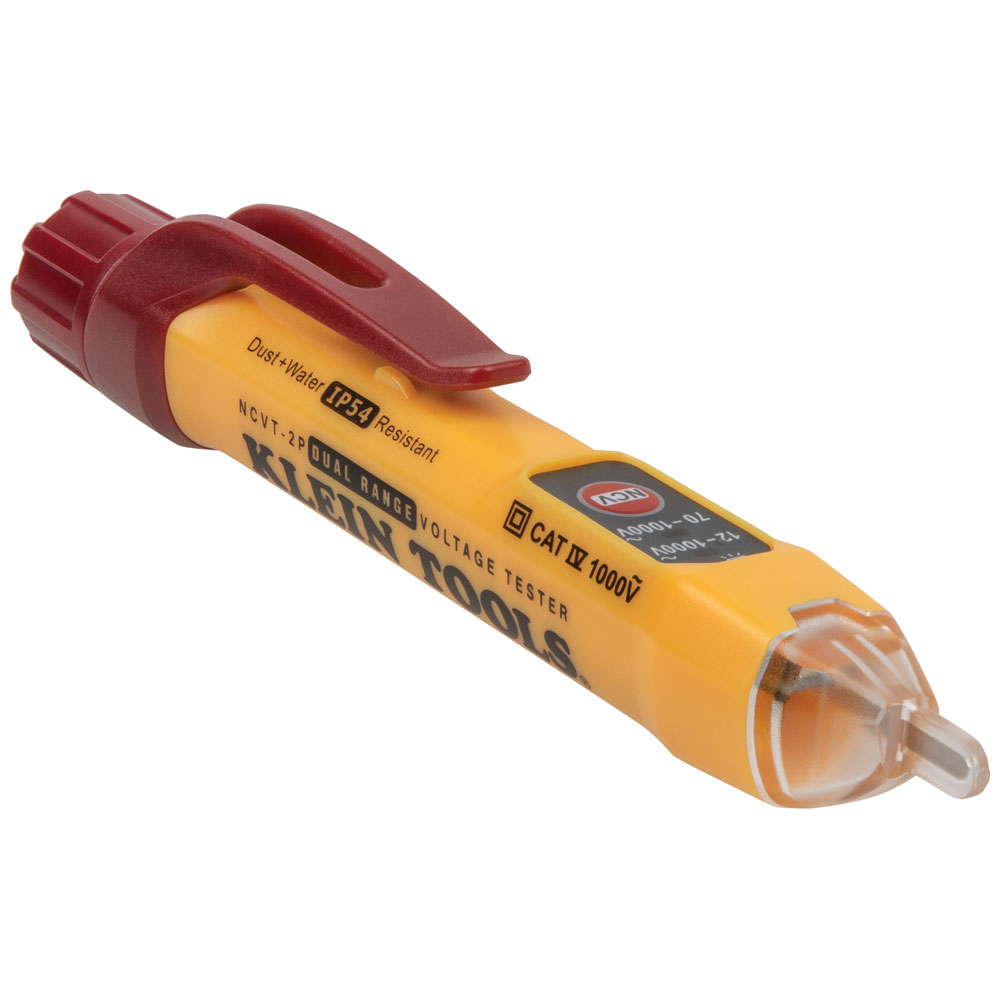

Dual Range Non-Contact Voltage Tester 12 - 1000V AC

Dual Range Non-Contact Voltage

KLNNCVT2P NCVT2P 092644692321
26.97 / EA
http://schema.org/OutOfStock

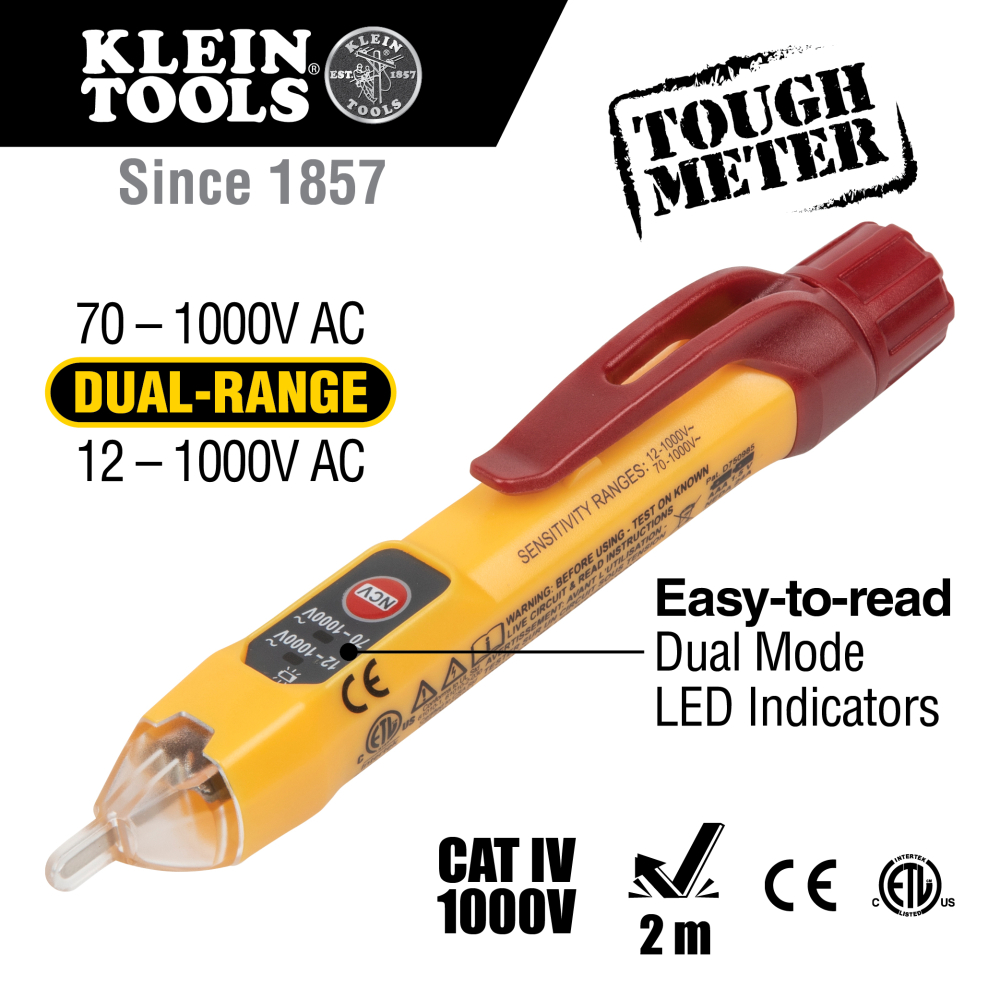

Mayer-DDS-Dual Range Non-Contact Voltage Tester 12 - 1000V AC-2
  • Depth: 5.830 in
  • Frequency: 50 Hz, 500 Hz
  • Height: 0.86 in, 0.860 in, 2.2 cm
  • Material: Polycarbonate
  • Overall Length: 14.8 cm, 5.82 in
  • Weight: 0.052 lb, 1.7 oz, 48.1 g
  • Width: 1.09 in, 1.090 in, 2.8 cm
The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.
QTY
  • Product Description
  • Features
  • Specifications
The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-2P is rugged enough for any job site.
  • Features
    • Non contact voltage tester's dual-range capabilities allow tester to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
    • Electrical voltage tester detects voltage with simultaneous visual and audible indicators
    • Non-contact detection of low voltage in security, entertainment, communications, environmental control, and irrigation systems
    • Green light indicates no voltage
    • Lightweight, compact tool with pocket clip provides convenient storage and quick access
    • Auto power-off feature conserves and extends battery life
    • CAT IV 1000 V rating provides expanded operation and protection
    • Screw-thread battery cap with O-ring ensures protection against dust and water ingress
    • 6.6-Foot (2 m) drop protection
    • IP54 - Dustproof and waterproof
    • Conforms to CE requirements
    • US Patent 10,073,142, D750,985 and other patents pending
    • LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
  • Warnings
    • Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this tester. Failure to follow instructions could result in death or serious injury.
    • Never assume neutral or ground wires are de-energized. Neutrals in multi-wire branch circuits may be energized when disconnected and must be retested before handling.
  • Specifications
    • Pollution Degree : 2
    • Frequency : 50 - 500 Hz
    • Standard : CAT IV 1000V
    • Drop Protection : 6.6' (2 m)
    • Included : NCVT; Batteries
    • Type : Dual Range
    • Battery Life : 142 hr
    • Overall Width : 1.09" (2.8 cm)
    • Overall Height : 0.86" (2.2 cm)
    • Batteries : 2 x AAA
    • Overall Length : 5.82" (14.8 cm)
    • Material : Polycarbonate
    • Ingress Protection : IP54
    • Application : Non-Contact Detection and Testing of AC Voltage
    • Voltage : Range 1 - 12 – 1000V AC; Range 2 - 70 – 1000V AC
    • Weight : 1.7 oz (48.1 g)
    • Item Height : 0.8600 in
    • Item Width : 1.0900 in
    • Item Depth : 5.8300 in
    • Item Weight : 0.0520 lbs
