KLEIN TOOLS

Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp

OPEN JAW FORK METER 200A AC

KLNCL360 CL360 092644691140
105.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-Electrical Tester, Open Jaw Fork Meter, AC Auto-Ranging, 200 Amp-2
  • Applications: AC/DC Voltage, Continuity, Measures AC Current, Resistance
  • Depth: 8.390 in
  • Display Type: LCD
  • Height: 1.380 in
  • Material: Electrical Components, Plastic
  • Type: Open Jaw Fork Current Meter
  • Voltage: 1000 V, 600 V
  • Weight: 0.400 lb
  • Width: 2.120 in

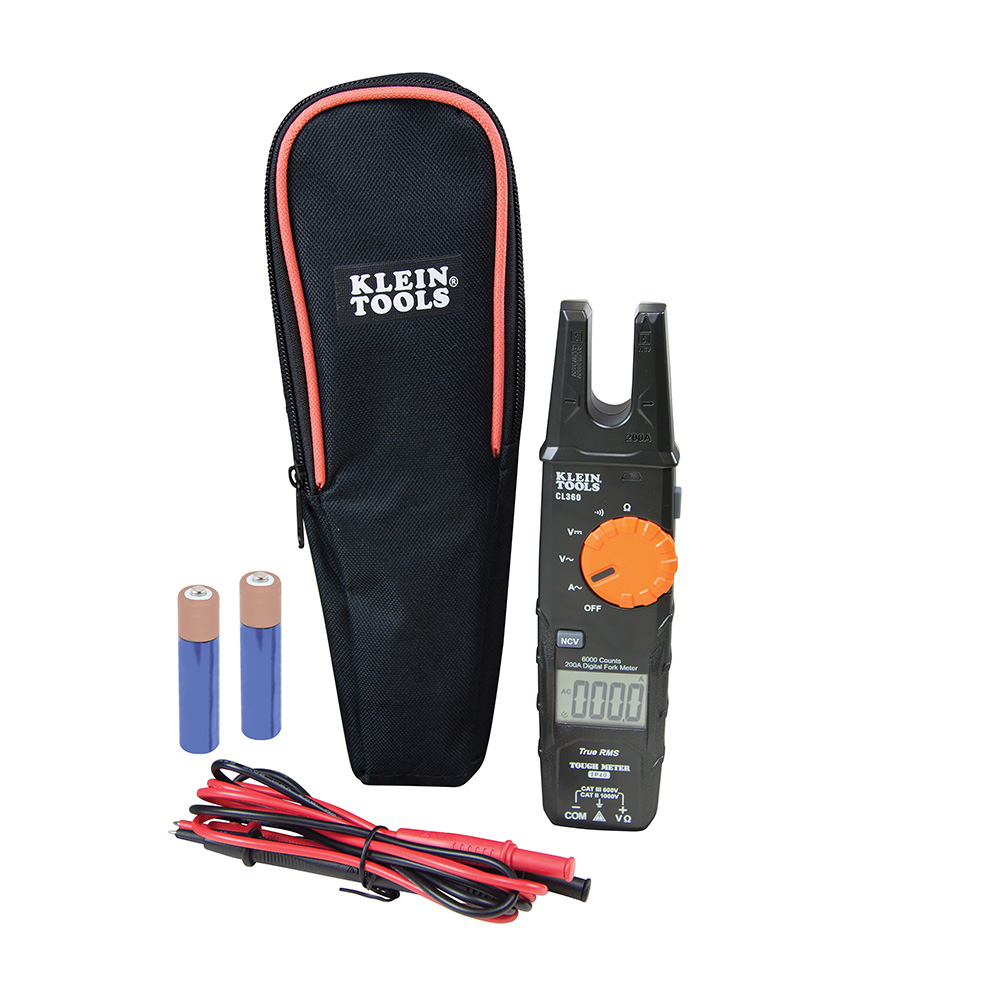

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
QTY
  • Product Description
  • Features
  • Specifications
The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
  • Features
    • Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
    • Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads
    • Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
    • Non-contact voltage tester integrated into the jaw
    • Includes a carrying case, test leads and 2 x AAA batteries
    • Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
    • Backlit display for clear readings
    • Powers off automatically after 15 minutes of non-use to conserve battery life
    • Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
    • Low battery indicator and easily accessible battery compartment
    • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
    • Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
  • Warnings
    • Read, understand, and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
    • Before each use, verify meter operation by measuring a known voltage or current.
    • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
    • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
    • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
  • Specifications
    • Type : Open Jaw Fork Current Meter
    • Included : Electrical Tester; Carrying Case; Instruction Manual; Straight Input Test Leads; and 2 x 1.5V AAA Batteries
    • Current : 200A AC
    • Material : Plastic/Electronics
    • Batteries : 2 x AAA
    • Voltage : 600V AC, 1000V DC
    • Functions : AC Current, AC/DC Voltage, Continuity, Resistance
    • Display : 6000 Count LCD
    • Standard : Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V
    • DC Polarity Indicator : Yes
    • Ingress Protection : IP40
    • AC Voltage : 600V
    • DC Voltage : 1000V
    • Auto-Power Off : Yes
    • Drop Protection : 9.9' (3m)
    • Application : Measures AC Current, AC/DC Voltage, Continuity, Resistance
    • Ohms (Resistance) : 60MΩ
    • Overall Height (cm) : 3.5
    • Overall Width (Inch) : 2.12
    • Overall Height (Inch) : 1.38
    • Overall Length (cm) : 21.3
    • Jaw Size (cm) : 1.5
    • Overall Length (Inch) : 8.39
    • Overall Width (cm) : 5.4
    • Jaw Size (Inch) : 0.58
    • Height : 1.3800 in
    • Width : 2.1200 in
    • Depth : 8.3900 in
    • Weight : 0.4000 lbs
