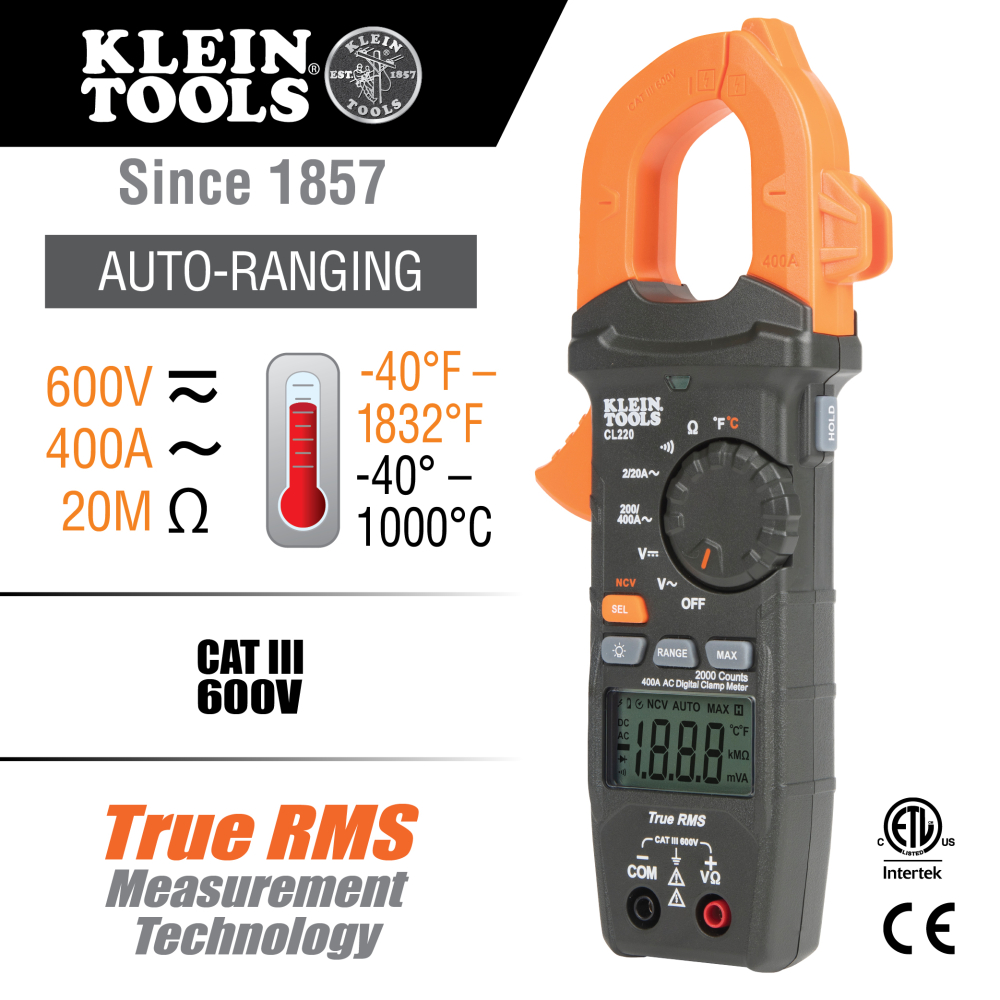

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

• Features
• Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
• Non-contact voltage tester integrated into the clamp jaw
• Backlit LCD for ease of viewing in low light
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Measures temperature with a K-Type thermocouple probe
• Auto-Range, Hold, Data Hold, and Max value
• Auto-power off after 10 minutes to conserve battery life
• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V, Class 2, Double insulation safety rating
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
• Warnings
• Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
• Do not attempt to measure resistance or continuity on live circuits.
• Before each use verify meter operation by measuring a known voltage or current.
• Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
• Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.

• Specifications
• Overall Length : 8.45" (21.5 cm)
• Voltage : 600 V AC/DC
• Batteries : 3 x AAA
• Standard : CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
• Temperature Range : -40° - 1832°F (-40° - 1000°C)
• Jaw Size : 1.6" (4.1 cm)
• Auto-Power Off : Yes
• DC Voltage : 600 V
• Overall Width : 3.5" (8.9 cm)
• Application : Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
• Display : 2000 Count Backlit LCD
• Functions : TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
• Current : 400 A AC
• Ohms (Resistance) : 20 MΩ
• Drop Protection : 6.6' (2 m)
• Included : Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
• Overall Height : 1.5" (3.8 cm)
• AC Voltage : 600 V
• Material : ABS/Electronics
• DC Polarity Indicator : Yes
• Type : Auto Ranging TRMS Clamp with Temperature
• Height : 1.5060 in
• Width : 3.5120 in
• Depth : 8.4500 in
• Weight : 0.6130 lbs
