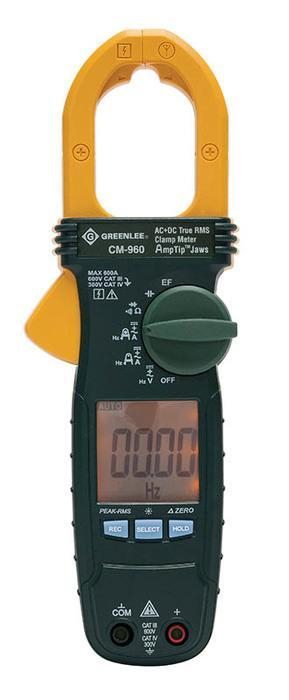

CLAMPMETER, AC/DC (CM-960) (POP)

CLAMPMETER ACDC

GRECM960 CM-960 783310021926
317.22 / Each
http://schema.org/OutOfStock
Mayer-DDS-CLAMPMETER, AC/DC (CM-960) (POP)-1
  • Country of Origin: Taiwan
  • Height: 2.700 in
  • Length: 11.950 in
  • Volume: 1.335 lb, 177.457 cu in
  • Width: 5.500 in
All the tools to complete atypical wiring job. Includes 09-03-54B bit, 712P placement tool and 150 pulling grip
QTY
  • Product Description
  • Features
  • Specifications
All the tools to complete atypical wiring job. Includes 09-03-54B bit, 712P placement tool and 150 pulling grip
  • Features
    • Measures AC+DC current AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives Also measures DC voltage, resistance, capacitance and frequency Tests continuity and diodes Peak-RMS measures motor inrush current Backlight & relative mode for added versatility AmpTip™ increases accuracy on small wires and low current Two voltage detection modes - non-contact or using a single test lead Data hold Recording of Maximum, Minimum, and Average readings Lifetime warranty
  • Specifications
    • Length : 11.950 IN
    • Volume : 177.4575 CI
    • Width : 5.500 IN
    • Volume : 1.335 LB
    • Height : 2.700 IN
    • Country of Origin : TW
    • Display : LCD, 6000 Count
    • Includes : (2) 1.5V AAA batteries, test leads, carrying case
    • Jaw Opening : 1.18'' (30 mm)
    • Frequency Rating : Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz
    • Resistance Measurement : 600, 6k, 60k Ohms
    • Replacement Part : TSG-3 test leads, TC-10 carrying case
    • Standard : CAT III, C/US UL Listed, CE
    • Voltage Measurement : 600 Volts AC+DC
    • True Power : AC+DC True RMS
    • Amperage Measurement : 60, 600 Amps AC+DC
    • Measurement Category : CAT III 600V, CAT IV 300V
