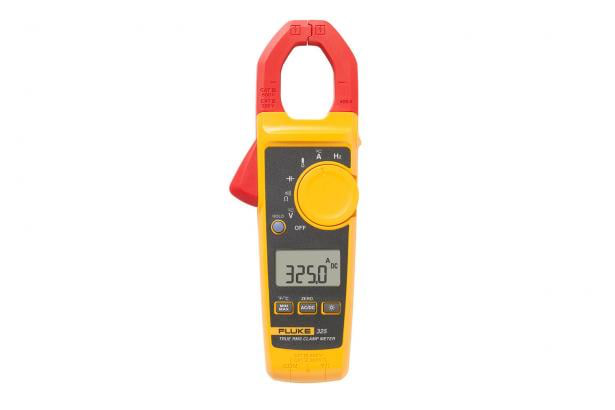

Fluke 325 True RMS Clamp Meter Fluke 325

400A AC/DC TRUE RMS CLAMP METE

FLKFLUKE325 FLUKE-325 095969623766
437.77 / BOX
http://schema.org/OutOfStock
Mayer-DDS-Fluke 325 True RMS Clamp Meter Fluke 325-1
QTY
  • Features
  • Specifications
  • Other Useful Features
    • CAT III 600 V, CAT IV 300 V safety rating
    • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
    • Measures AC/DC current up to 400 A
    • Measures AC/DC voltage to 600V
    • Measures resistance to 40 kΩ with continuity detection ≤ 30Ω
    • Measures temperature from -10C to 400C
    • Measures capacitance to 1000µF
    • Measures frequency from 5Hz to 500Hz
    • Min/Max function records important values
    • Backlight and hold function captures a reading on the display
    • Comes with a two-year warranty and soft carrying case
    • Fluke 325 True-RMS Clamp Meter
    • TL75 Test Leads
    • Type K Thermocouple
    • Two AAA Batteries (Installed)
    • Soft Case
  • Includes
    • Fluke 325 True-RMS Clamp Meter
    • TL75 Test Leads
    • Type K Thermocouple
    • Two AAA Batteries (Installed)
    • Soft Case
  • Key Features
    • Rugged, reliable True-RMS clamp meter with dc current and frequency measurements
    • Measures AC and DC current to 400 A
    • Measures AC voltage and DC voltage to 600 V
    • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
    • Measures resistance to 40 kΩ with continuity detection
    • Measures frequency to 500 Hz
  • Product Overview
    • The Fluke 325 True-RMS Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of DC Current and Frequency, it has everything you’ll need to troubleshoot.
  • Specifications
    • AC current Range : 40.00 A / 400.0 A
    • AC current Accuracy : 2% ± 5 digits (45 Hz to 65 Hz)2.5% ± 5 digits (65 Hz to 400 Hz)
    • DC current Range : 40.00 A / 400.0 A
    • DC current Accuracy : 2% ± 5 digits
    • AC voltage Range : 600.0 V
    • AC voltage Accuracy : 1.5% ± 5 digits
    • DC voltage Range : 600.0 V
    • DC voltage Accuracy : 1.0% ± 5 digits
    • Resistance Range : 400.0 Ω / 4000 Ω / 40.00 kΩ
    • Resistance Accuracy : 1.0% ± 5 digits
    • Continuity Accuracy : ≤ 30 Ω
    • Capacitance Accuracy : 0 to 100.0 μF / 100μF to 1000 μF
    • Frequency Accuracy : 5.0 Hz to 500.0 Hz
    • AC response Accuracy : True-RMS
    • Backlight Accuracy : Yes
    • Data hold Accuracy : Yes
    • Contact temperature Accuracy : -10.0°C to 400.0°C (14.0°F to 752.0°F)
    • Min/Max Accuracy : Yes
    • Size : H x W x D (mm): 207 x 75 x 34
    • Size Max wire diameter : 30 mm (600 MCM)
    • Size Weight : 283 g
    • Category rating Weight : CAT III 600 VCAT IV 300 V
    • Warranty Weight : Two-year
