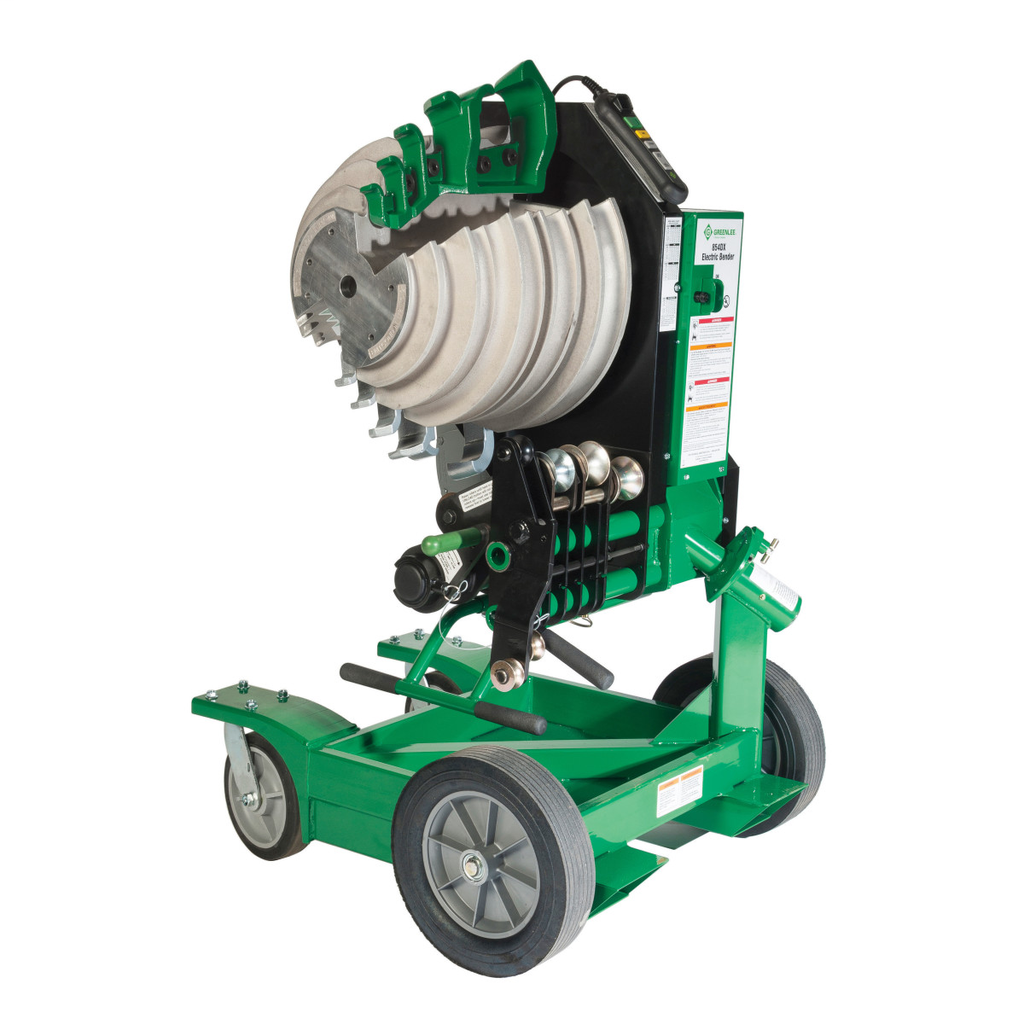

Single Shoe Electric Conduit Bender

CONDUIT BENDER ELEC 1/2 TO 2

GRE854DX 854DX 783310026709
20719.24 / Each
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Height: 37 in
  • Length: 38 in
  • Type: Electric Conduit Bender
  • Volume: 32338 cu in, 550.0 lb
  • Width: 23 in
Quickly bore through creosoted and salt-treated utility poles. Resists wear, eats through nails and staples. Self-feeding screw point draws the bit through the wood. 7/16 IN hex shank to fit impact drivers. Available in 18 IN overall length.
QTY
  • Product Description
  • Features
  • Specifications
Quickly bore through creosoted and salt-treated utility poles. Resists wear, eats through nails and staples. Self-feeding screw point draws the bit through the wood. 7/16 IN hex shank to fit impact drivers. Available in 18 IN overall length.
  • Features
    • VERSATILE - 1 shoe bends 1/2” to 2” EMT, IMC and  Rigid conduit ACCURATE - Absolute encoder stops bending at  precise angles RELIABLE - Solid state electronics rated for  1,000,000+ bends Simple switching between vertical and horizontal bending configurations Digital pendant sets angle and monitors process Solid state system eliminates arcing and prevents damage from temporary power loss
  • Specifications
    • Country of Origin : US
    • Length : 38 IN
    • Volume : 550.0 LB
    • Volume : 32338 CI
    • Width : 23 IN
    • Height : 37 IN
    • Conduit Type : Rigid, EMT, IMC (PVC coated Rigid w/)
    • Application : Conduit bending
    • Type : Electric Conduit Bender
    • Amperage Rating : 20 AMP GFCI Protected Receptacle
    • Accessory : 02840 Shoe Group, 1/2'' to 2'' PVC Coated Rigid (854DX)
    • Centerline Bend Radius : 4.25" (108 MM) - 9" (228.6MM) (EMT, IMC Rigid) For 1/2" - 2" Shoe Size
    • Bend Radius : 4.25'' (108 MM) - 9'' (228.6MM) (EMT, IMC Rigid) For 1/2'' - 2'' Shoe Size
    • Packaged Weight : 550
    • Conduit Size : 1/2" to 2" Rigid, EMT, & IMC
    • Voltage Rating : 120 VAC
    • Includes : 1/2'' - 2'' Rigid / EMT / IMC Shoe, Roller Support and Digital Pendant
    • Standard : C/US UL Listed
    • Capacity : 1/2'' - 2'' Rigid, IMC, EMT
