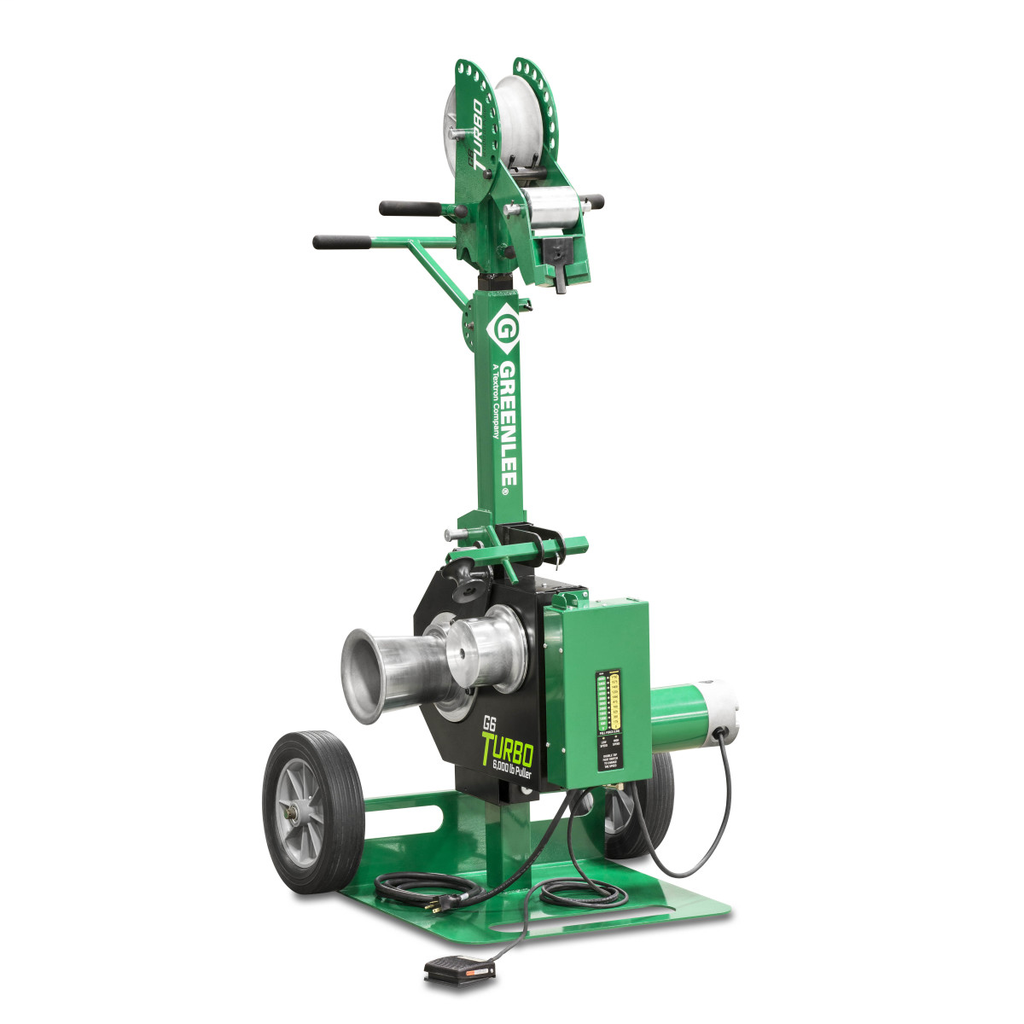

G6 TURBO™ 6000 LB CABLE PULLER

G6 TUGGER 6000LB RATED

GREG6 G6 783310069546
15848.34 / EA
http://schema.org/OutOfStock
Mayer-DDS-G6 TURBO™ 6000 LB CABLE PULLER-1
  • Height: 66 in
  • Length: 48 in
  • Type: 6000 lb
  • Volume: 126720 cu in, 311.0 lb
  • Width: 40 in
2. 5" Diameter x 25' Discharge Hose Assembly
QTY
  • Product Description
  • Specifications
2. 5" Diameter x 25' Discharge Hose Assembly
  • Specifications
    • Width : 40 IN
    • Height : 66 IN
    • Volume : 126720 CI
    • Volume : 311.0 LB
    • Length : 48 IN
    • Pulling Speeds : No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.35 m/min) No Load Secondary Capstan Speed : High Speed 90 ft/min (27.43 m/min), Low Speed 35 ft/min (10.70 m/min)
    • Pulling Force : 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary
    • Jaw Material : Not applicable
    • Sub Brand : G6 Turbo™
    • Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN)
    • Application : Cable Puller
    • Packaged Weight : 311
    • Drive Motor : 120 VAC, 50/60 Hz, 12 amps
    • Standard Boom Extension : 7.50 FT (2.29.m)
    • Battery Type : Not applicable
    • Type : 6000 LB Cable Puller
    • Number Of Jaws : none
    • Includes : Force Gauge and foot switch
