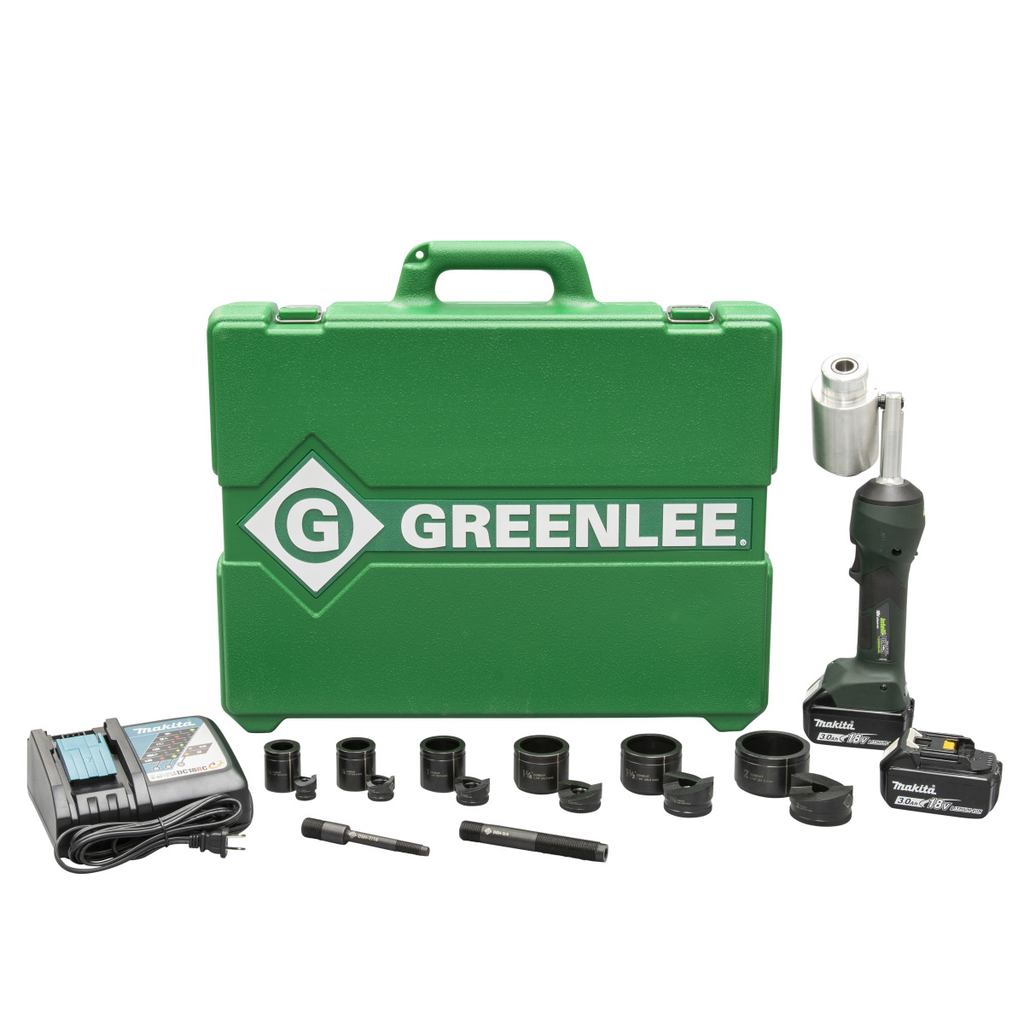

Intelli-PUNCH™ Battery-Hydraulic Knockout Kit with Slug-Buster® 1/2" - 2"

INTELLIPUNCH 11-TON SET SB 1/

GRELS100X11SB LS100X11SB 783310064831
2896.50 / EA
http://schema.org/OutOfStock
Mayer-DDS-Intelli-PUNCH™ Battery-Hydraulic Knockout Kit with Slug-Buster® 1/2" - 2"-1
  • Country of Origin: USA
  • Height: 5.100 in
  • Length: 22.100 in
  • Type: Intelli-PUNCH™ 11-Ton Battery-Hydraulic Knockout Kit
  • Volume: 2118.948 cu in, 26.785 lb
  • Width: 18.800 in
Utilizes four indentors to make the crimp. Operates from 10,000 psi (700 bar) hydraulic pumping sources. Small and lightweight for difficult-to-reach locations. Equipped with 3/8 in. male screw-type couplers. Flip-top style uses a pull pin to open head for easy removal from the connector. Includes carrying case, test gauge and test slugs. See pages 430-433 for hose and pump selection
QTY
  • Product Description
  • Specifications
Utilizes four indentors to make the crimp. Operates from 10,000 psi (700 bar) hydraulic pumping sources. Small and lightweight for difficult-to-reach locations. Equipped with 3/8 in. male screw-type couplers. Flip-top style uses a pull pin to open head for easy removal from the connector. Includes carrying case, test gauge and test slugs. See pages 430-433 for hose and pump selection
  • Specifications
    • Volume : 2118.948 CI
    • Volume : 26.785 LB
    • Height : 5.100 IN
    • Width : 18.800 IN
    • Country of Origin : US
    • Length : 22.100 IN
    • Consist Of 5 : 3/4" hydraulic draw stud
    • Consist Of 1 : Intelli-PUNCH knockout driver
    • Application : For punching holes in mild steel, stainless steel, aluminum, brass, copper, fiberglass and plastics
    • Size : 1/2" - 2" conduit size knockouts (hole size: 0.89" - 2.42" or 22.5 mm - 61.5 mm)
    • Consist Of 4 : 7/16" hydraulic draw stud
    • Consists Of 7 : 120V AC Charger
    • Consist Of 3 : 1/2" - 2" conduit size dies
    • Material : Punch up to 10 ga mild steel or 12 ga stainless steel
    • Consists Of 6 : (2) 18V Li-ion 3.0Ah Batteries
    • Consists Of 8 : KCC-LS2 carrying case
    • Type : Intelli-PUNCH™ 11-Ton Battery-Hydraulic Knockout Kit
    • Consist Of 2 : 1/2" - 2" conduit size Slug-Buster® punches
