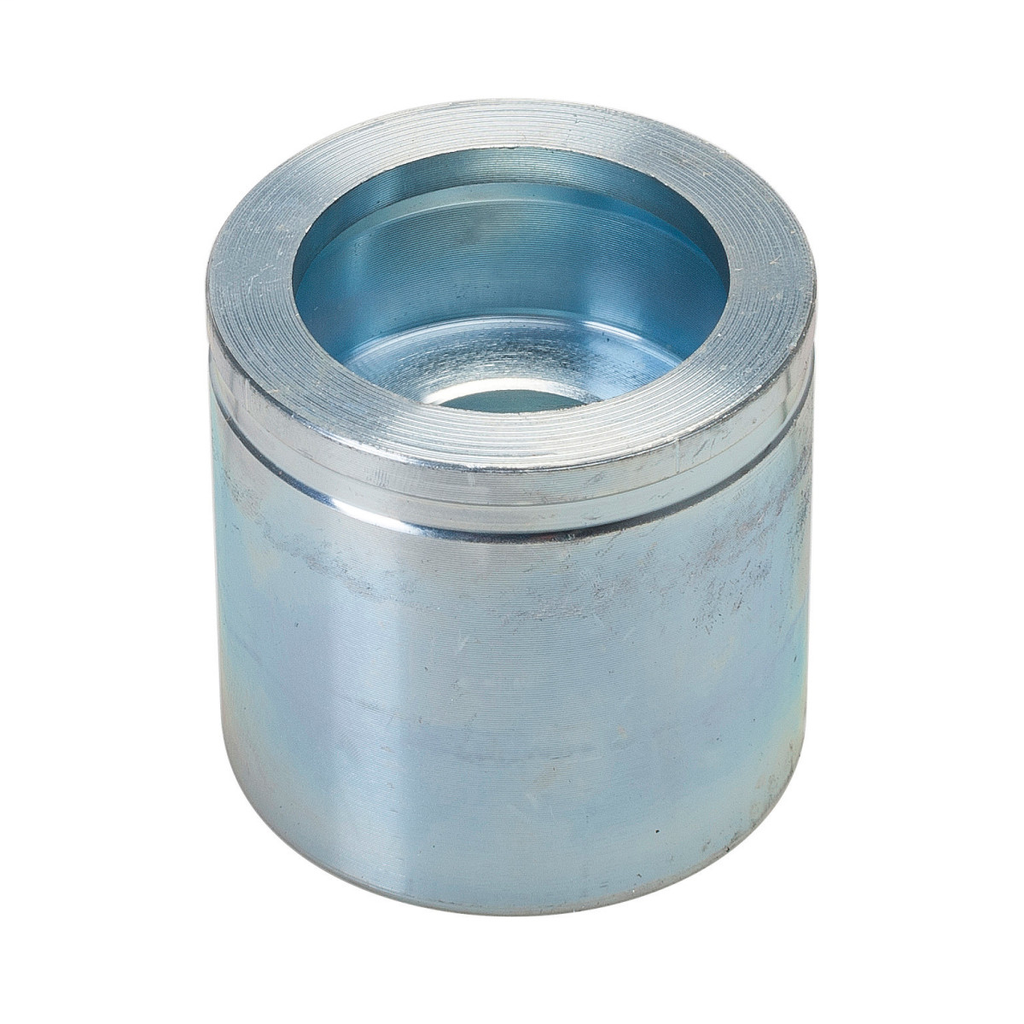

1-7/32" Speed Punch®, SS Die

DIE COND SPEED SS 1-7/32' (

GRE745SP1732D 745SP-1-7/32D 783310016687
126.12 / Each
http://schema.org/OutOfStock
Mayer-DDS-1-7/32" Speed Punch®, SS Die-1
  • Country of Origin: USA
  • Diameter: 1.210 in, 30.5 mm
  • Material: Steel, Zinc
  • Weight: 0.34 kg, 0.75 lb
QTY
  • Features
  • Specifications
  • Features
    • SPEED PUNCH® saves time and money with every hole.Up to 3X's faster setup and disassembly.No-Thread punch design eliminates cross-threading.
    • Available for - Stainless Steel - 1/2" to 2" conduit sizeMild Steel - 1/2" to 4" conduit sizeMetric ISO-16 to ISO-6322mm & 30mm for Oil tight push buttons
  • Application
    • For punching holes in stainless steel, mild steel, aluminum, fiberglass, and plastic
  • Specifications
    • Country of Origin : United States
    • Weight : 0.75 lbs. (0.34 kg)
    • Shape : Round
    • Capacity Mild Steel : Max - 10 gauge (3.0 mm).
    • Capacity Stainless Steel : Max - 10 gauge (3.0 mm).
    • Diameter : Actual hole size - 1.210'' (30.5 MM)
    • Draw Stud : Std. Draw Stud - 7212SP23 (3/4'' X 5.00'')
    • Draw Studs : Alt. Draw Stud (Long) - 7212SP21 (3/4'' x 5.83'') - For use with 746 Hydraulic Ram
    • Driver : Use with Greenlee Punch Drivers - 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel).
    • Material : Carbon-Alloy Steel, Zinc Plated
    • Minimum Pilot Hole : 7/8'' (22.2 mm)
    • Operation : Must be used with other SPEED PUNCH® System components.
    • Sub Brand : SPEED PUNCH®
    • Type : Knockout Punches
