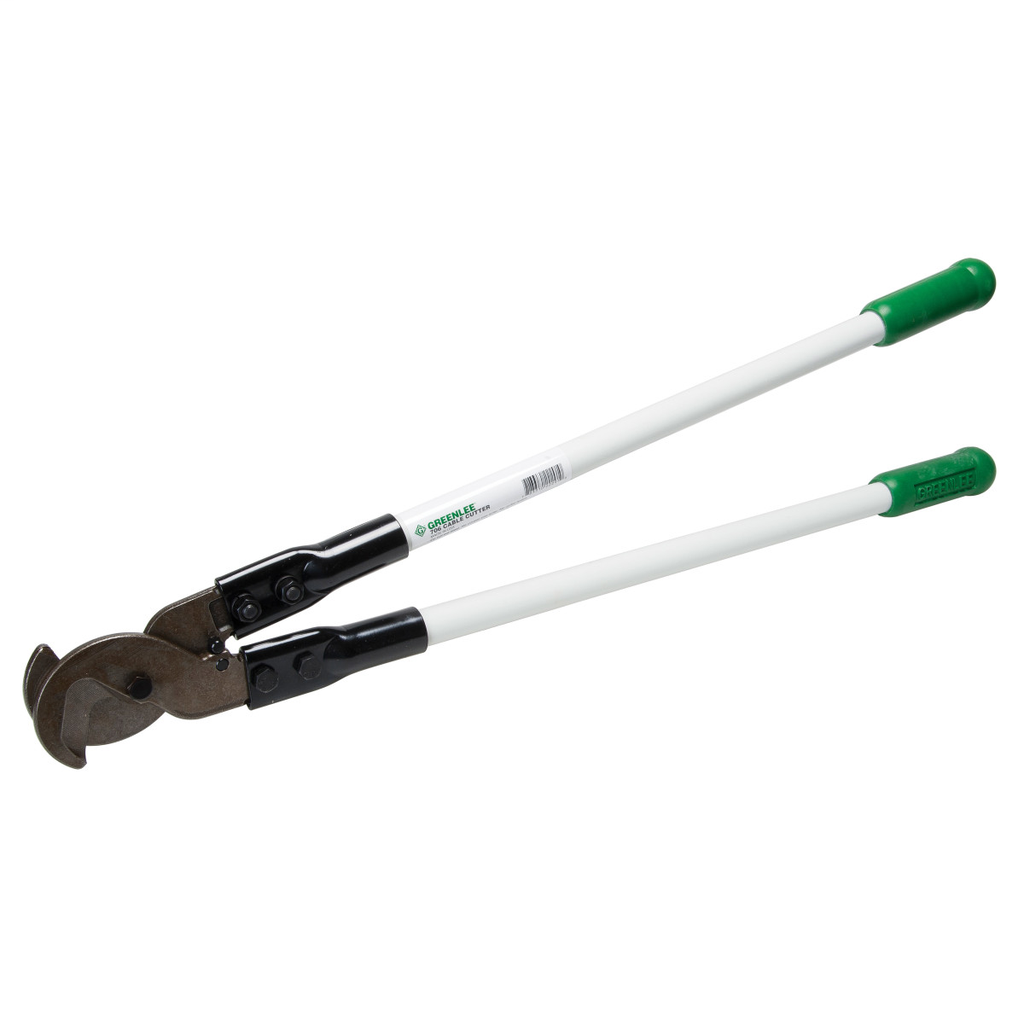

Heavy-Duty Cable Cutter, 31-1/2"

CUTTER - 1000MCM CBL B

GRE706 706 783310222910
275.57 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Heavy-Duty Cable Cutter, 31-1/2"-1
  • Country of Origin: USA
  • Handle Material: Fiberglass
  • Height: 0.2 in
  • Length: 34.5 in
  • Overall Length: 31-1/2 in, 800.000 mm
  • Type: Heavy Duty
  • Volume: 6.935 lb, 71.76 cu in
  • Width: 10.4 in
True RMS for no-compromise accuracy. Measures voltage, current, resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD With Dual 10,000 Count Displays. BeepJack warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB interface DMSC-9U for direct-to-PC logging. Lifetime Limited Warranty. AC+DC True RMS gives accurate readings on complex waveforms. Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity. Low impedance masks ghost voltage pickup. dBm function with 20 selectable reference impedance values. Crest capture (peak hold)plus recording of max, min, max-min and average. Two voltage detection modes - non-contact or using a single test lead. Two temperature measurements using type K thermocouples. Conductance measurement. Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), testleads, protective boot, carrying case. Includes Certificate of Calibration
QTY
  • Product Description
  • Features
  • Specifications
True RMS for no-compromise accuracy. Measures voltage, current, resistance, capacitance and frequency. Tests continuity and diodes. Backlit LCD With Dual 10,000 Count Displays. BeepJack warns when test leads are incorrectly inserted in current measurement terminals. Automatic and manual range selection. Relative offset mode to see changes in measurements. Data hold. Use optional USB interface DMSC-9U for direct-to-PC logging. Lifetime Limited Warranty. AC+DC True RMS gives accurate readings on complex waveforms. Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity. Low impedance masks ghost voltage pickup. dBm function with 20 selectable reference impedance values. Crest capture (peak hold)plus recording of max, min, max-min and average. Two voltage detection modes - non-contact or using a single test lead. Two temperature measurements using type K thermocouples. Conductance measurement. Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), testleads, protective boot, carrying case. Includes Certificate of Calibration
  • Features
    • Strong, lightweight fiberglass handles Adjustable pivot bolt provides for blade adjustment
  • Specifications
    • Volume : 6.935 LB
    • Width : 10.4 IN
    • Volume : 71.76 CI
    • Height : 0.2 IN
    • Country of Origin : US
    • Length : 34.5 IN
    • Overall Length : 31-1/2 IN (800.000 MM)
    • Cutting Capacity Of Copper : 750 KCMIL (MCM) (400.000 SQ-MM) Maximum Use, 500 KCMIL (MCM) (240.000 SQ-MM) Frequent Use
    • Handle Material : Fiberglass
    • Packaged Weight : 6.935
    • Cutting Capacity Of Communication Cables : 1-1/2 IN (38.000 MM) Diameter Maximum Use Or Frequent Use
    • Cutting Capacity Of Aluminum : 1000.000 KCMIL (MCM) (500.000SQ-MM) Maximum Use, 750.000 KCMIL (MCM) (400.000 SQ-MM) Frequent Use
    • Handle Type : Light Weight
    • Replacement Part : 6555 705 And 706 Cutter Unit (Includes 2 Blades), 22296 706 Handle Unit (Includes Handle, Sleeve, Grip)
    • Type : Heavy Duty
