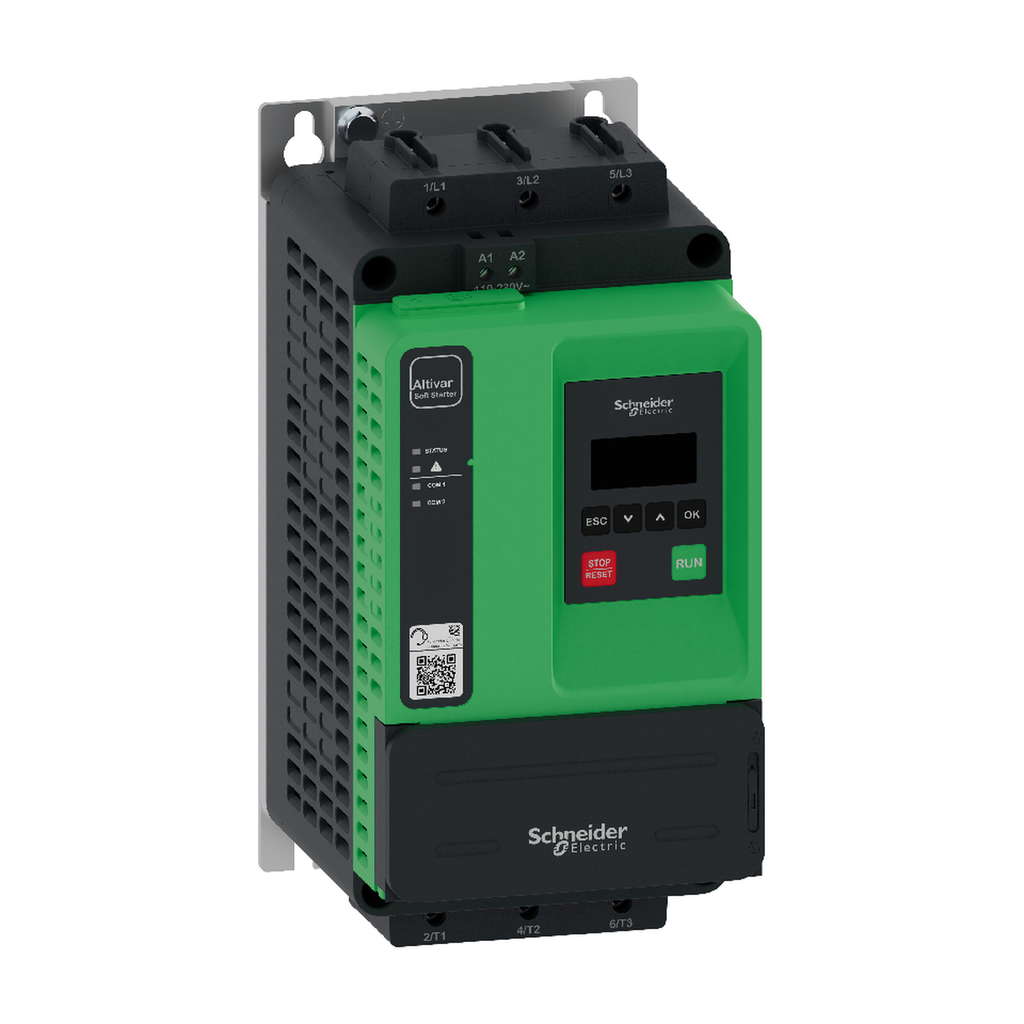

Soft starter, Altivar Soft Starter ATS430, 17A, 208 to 600V AC, control supply 110 to 230V AC

Soft starter, Altivar Soft Sta

SQDATS430D17S6 ATS430D17S6 3606486948606
842.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-Soft starter, Altivar Soft Starter ATS430, 17A, 208 to 600V AC, control supply 110 to 230V AC-1
  • Connection Type: 1 RJ45, Open Style
  • Depth: 169 mm
  • Display Type: 1 LED Green-yellow)status, 1 LED Red)Warning/Error, 1 LED Yellow)COM1, 1 LED Yellow)COM2
  • Operating Position: Vertical +/- 10 Degree
This soft starter belongs to the Altivar Soft Starter ATS430 range which is intended to smoothly start and stop asynchronous motors supplied from 208 to 600V. With an operational rated current of 17A, it supplies motor from 4 to 9kW according to mains voltage. With an efficiency rating of 99.5%, torque control, high stress resistance, and complete monitoring, the ATS430 provides the essentials for effectiveness. Altivar Soft Starter ATS430 delivers best in class motor control with its torque control, the original by Schneider Electric. ATS430 provides complete system monitoring, including the motor, application, power and energy with an accuracy greater than 95%. The cybersecurity standards for ATS430 are met by incorporating best practices that help minimize downtime. Dimensions are 130mm (width), 169mm (depth), 273mm (height) and it weighs 2.9kg. ATS430 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified. Altivar Soft Starter ATS430 is designed for applications such as pumps, fans, compressors, conveyors, and mixers. It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, and CCC certifications. Some accessories are available, including an IP65 or IP43 remote mounting kit for installing a plain text or graphic display terminal on the enclosure door. The packaging is made from recycled cardboard and incorporates less single-use plastic. The ATS430 soft starters shall be mounted vertically inside an enclosure. The Altivar Soft Starter ATS430 range offers torque control, reliable operation, and simplicity. It also integrates essential features for the future, including cybersecurity best practices and condition monitoring. ATS430 delivers the essentials for effectiveness while lowering the overall equipment costs.
QTY
  • Features
  • Specifications
  • Features
    • Reduce time (design to operation) and overall cost
    • Improved sustainability (enviromental performance, durability and efficiency)
    • Reduced operational expenditure (high durability)
    • Withstand high stress and avoid limiting event (increased reliability by design)
    • Meets cybersecurity standards (integrates best practice features)
    • Reduce carbon footprint (99.5% efficiency and power monitoring)
    • Digitized (data reporting for energy management)
    • Effective motor management
    • Reduced downtime (embedded condition monitoring)
    • Industry-leading motor control (original Torque Control System (TCS))
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • 3D Model Name : ATS430_S0A_3D_model
  • Communications & Management Attributes
    • Communication Port Protocol : Modbus serial RJ45, Modbus serial open style (DO, D1, PE, COM), Modbus serial
  • Conformance Attributes
    • Product Certifications : cULus, CE, UKCA, CCC, RCM, EAC, KC
    • Standards : EN/IEC 60947-4-2, UL 60947-4-2, IEC 60664-1
  • Complementary Attributes
    • Maximum Horse Power Rating : 3 hp 208 V normal duty, 5 hp 230 V normal duty, 10 hp 460 V normal duty, 15 hp 575 V normal duty
    • Maximum Switching Current : relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1, relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
    • Minimum Switching Current : 100 mA 12 V DC relay outputs
    • Integrated Motor Overload Protection : true
  • Important Information Attributes
    • Connector Type : 1 RJ45, open style
    • Data Format : 8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ45, 8 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)
    • Display Type : 1 LED green-yellow)status, 1 LED Red)Warning/Error, 1 LED Yellow)COM1, 1 LED Yellow)COM2
    • Electromagnetic Compatibility : conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-18, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6
    • Function Available : single direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test
    • Marking : cULus, CE, UKCA, CCC, RCM, EAC, KC
    • Motor Power KW : 4 kW 230 V in line normal duty, 7.5 kW 400 V in line normal duty, 7.5 kW 440 V in line normal duty, 9 kW 500 V in line normal duty, 9 kW 525 V in line normal duty
    • Protection Type : phase failure mains, thermal protection mains, thermal protection starter, current overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, short-circuit between motor phase and earth motor
    • Transmission Frame : RTU : 1 RJ45, RTU : open style (DO, D1, PE, COM)
    • Transmission Rate : 4.8…38.4 kbps for Modbus serial RJ45, 0.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)
    • Utilisation Category : AC-3A, AC-53A
    • Uc Control Circuit Voltage2 : 24 V DC, 110...230 V AC 50-60 Hz - 15...10 %
    • Ue Rated Operational Voltage2 : 208 V 3 hp normal duty, 230 V 4 kW normal duty, 230 V 5 hp normal duty, 400 V 7.5 kW normal duty, 440 V 7.5 kW normal duty, 460 V 10 hp normal duty, 500 V 9 kW normal duty, 525 V 9 kW normal duty, 575 V 15 hp normal duty, 208...600 V AC - 15...10 %)
    • Environmental Class During Operation2 : class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    • Maximum Acceleration Under Vibratory Load During Storage2 : 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
    • Maximum Acceleration Under Vibratory Load During Transport2 : 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
    • Carbon Footprint Of The Distribution Phase A4 : 0.7599803941314599, 0.8 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 6.0955985733823805, 6 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.1 kg CO2 eq., 0.1359103616929118
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 85 kg CO2 eq., 85.17502398911157
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 047 kg CO2 eq., 2046.5471082727586
    • Environmental Class During Operation3 : class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    • Maximum Acceleration Under Vibratory Load During Storage3 : 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
    • Maximum Acceleration Under Vibratory Load During Transport3 : 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
    • Uc Control Circuit Voltage5 : 24 V DC, 110...230 V AC 50-60 Hz - 15...10 %
    • Ue Rated Operational Voltage5 : 208...600 V AC - 15...10 %), 208 V 3 hp normal duty, 230 V 4 kW normal duty, 230 V 5 hp normal duty, 400 V 7.5 kW normal duty, 440 V 7.5 kW normal duty, 460 V 10 hp normal duty, 500 V 9 kW normal duty, 525 V 9 kW normal duty, 575 V 15 hp normal duty
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Pre Comm Date : 2025-03-26
    • Device Type : Soft starter - Soft starter
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 10 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2301004EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Apparent Power : 70 VA
    • Device Short Name : ATS430
    • Method Of Access : slave Modbus serial
    • Network Frequency : 50-60 Hz
    • Number Of Addresses : 0-247 Modbus serial
    • Operating Position : vertical +/- 10 degree
    • Package Weight Lbs : 4.018 kg
    • Phase : 3 phase
    • Power Loss Per Device Current Dependent : 2 W
    • Power Loss Static Current Independent : 19 W
    • Power Losses : 133 W during starting at 40 °C at 400% In
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : asynchronous motors
    • Product Or Component Type : soft starter
    • Product Specific Application : standard industrial machines
    • Range Of Product : Altivar Soft Starter ATS430
    • Returnability : Yes
    • Supply Frequency : 50...60 Hz - 20...20 %
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 139 kg CO2 eq.
    • Type Of Polarization : no impedance Modbus serial
    • Volume Of Cooling Air : 3 m3/h
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • With Safety Function Safe Programmable Logic : false
    • Ie Rated Operational Current2 : normal duty 17 A in line 40 °C)
    • Ui Rated Insulation Voltage2 : 600 V
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV
    • Maximum Acceleration Under Shock Impact During Operation2 : 15 gn at 11 ms
    • Maximum Acceleration Under Shock Load During Storage2 : 10 gn at 11 ms
    • Maximum Acceleration Under Shock Load During Transport2 : 10 gn at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation2 : 1 gn at 13…200 Hz
    • Maximum Deflection Under Vibratory Load During Operation2 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage2 : 1.75 mm at 2...9 Hz
    • Maximum Deflection Under Vibratory Load During Transport2 : 1.75 mm at 2...9 Hz
    • With Safety Function Safe Brake Management Sbc Sbt2 : false
    • With Safety Function Safe Direction Sdi2 : false
    • With Safety Function Safe Operating Stop Sos2 : false
    • With Safety Function Safe Position Sp2 : false
    • With Safety Function Safe Speed Monitor Ssm2 : false
    • With Safety Function Safe Stop 1 SS1 : false
    • With Safety Function Safe Torque Off Sto2 : false
    • With Safety Function Safely Limited Position Slp2 : false
    • With Safety Function Safely Limited Speed Sls2 : false
    • With Sft Fct Safe Stop 2 Ss : false
    • Medium Desc : Soft starter, Altivar Soft Starter ATS430, 17A, 208 to 600V AC, control supply 110 to 230V AC
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Maximum Acceleration Under Shock Impact During Operation3 : 15 gn at 11 ms
    • Maximum Acceleration Under Shock Load During Storage3 : 10 gn at 11 ms
    • Maximum Acceleration Under Shock Load During Transport3 : 10 gn at 11 ms
    • Maximum Acceleration Under Vibrational Stress During Operation3 : 1 gn at 13…200 Hz
    • Maximum Deflection Under Vibratory Load During Operation3 : 1.5 mm at 2...13 Hz
    • Maximum Deflection Under Vibratory Load During Storage3 : 1.75 mm at 2...9 Hz
    • Maximum Deflection Under Vibratory Load During Transport3 : 1.75 mm at 2...9 Hz
    • With Safety Function Safe Brake Management Sbc Sbt3 : false
    • With Safety Function Safe Direction Sdi3 : false
    • With Safety Function Safe Operating Stop Sos3 : false
    • With Safety Function Safe Position Sp3 : false
    • With Safety Function Safe Speed Monitor Ssm3 : false
    • With Safety Function Safe Torque Off Sto3 : false
    • With Safety Function Safely Limited Position Slp3 : false
    • With Safety Function Safely Limited Speed Sls3 : false
    • With Sft Fct Safe Stop 2 Ss4 : false
    • Pep Code : ENVPEP2301004EN
    • Database Version : 2023-02
    • Pep Verification Date : 2024-06-23
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration phase with a torque control. It’s based on two phases dimmer with silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 47A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 11kW and 500V power motor of 30kW. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 50% uptime in use phase and 50% uptime in stand by phase.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Indonesia, ID
    • Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
    • Device Connection : in line
    • Display Screen Available : true
    • Internal Bypass : true
    • Material Declaration : true
    • On Load Factor : 50 %
    • Operating Rate : 10 cyc/h
    • Overload Current : 400 % Ie for 13 s
    • Voltage Ramp : true
    • In Rated Current Pwr Loss Specifctn2 : 17 A
    • Torque Control : true
    • Global Commercial Status : Commercialised
    • In Rated Current Pwr Loss Specifctn3 : 17 A
    • Ie Rated Operational Current5 : normal duty 17 A in line 40 °C)
    • With Safety Function Safe Stop 1 Ss1 5 : false
  • Environment Attributes Main
    • Take Back : Nej, No
    • Ambient Air Temperature For Operation : -25-40 °C (without derating), -25-40 °C (without derating), -25-40 °C (without derating), -25-40 °C (without derating), 40-60 °C (with current derating of 1 % per °C above 40 °C)
    • Ambient Air Transport Temperature : -40-70 °C, -40-70 °C
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • Operating Altitude : <= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, <= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 2138.713621591077
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2301004EN
    • Environmental Disclosure : ENVPEP2301004EN
    • IP Degree Of Protection : IP20
    • Nema Degree Of Protection : open type
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation or dripping water EN/IEC 60068-2-3
    • Pep Code : ENVPEP2301004EN
    • Pep Verification Date : 2024-06-23
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : soft starter
    • Range Of Product : Altivar Soft Starter ATS430
  • Output Attributes
    • Analogue Output Type : current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
    • Relay Output Type : relay outputs R1A, R1C NO, relay outputs R1B, R1C NC, relay outputs R2A, R2C NO
    • Analogue Output Number : 1
    • Discrete Output Number : 0
    • Relay Output Number : 2
    • Output Current Drift : 150-700 %
  • Input Attributes
    • Analogue Input Type : PTC1 : PTC temperature probe, PTC2 : PTC temperature probe
    • Discrete Input Logic : digital input STOP 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input RUN 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA
    • Discrete Input Type : STOP) digital input, 4.4 kOhm, RUN) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhm
    • Input Compatibility : STOP digital input level 1 PLC EN/IEC 61131-2, RUN digital input level 1 PLC EN/IEC 61131-2, DI3 digital input level 1 PLC EN/IEC 61131-2, DI4 digital input level 1 PLC EN/IEC 61131-2
    • Analogue Input Number : 1
    • Discrete Input Number : 4
  • Specifications
    • Country of Origin : Philippines, United States
    • Depth : 169 mm
  • Batteries & Runtime Attributes
    • Removable Battery : Yes
