Strong, welded steel frames. Forged steel closure-type hooks with 1 IN (25. 4 mm) opening. 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings. Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force

• Features

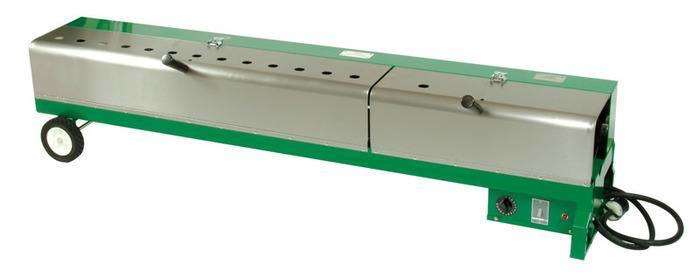

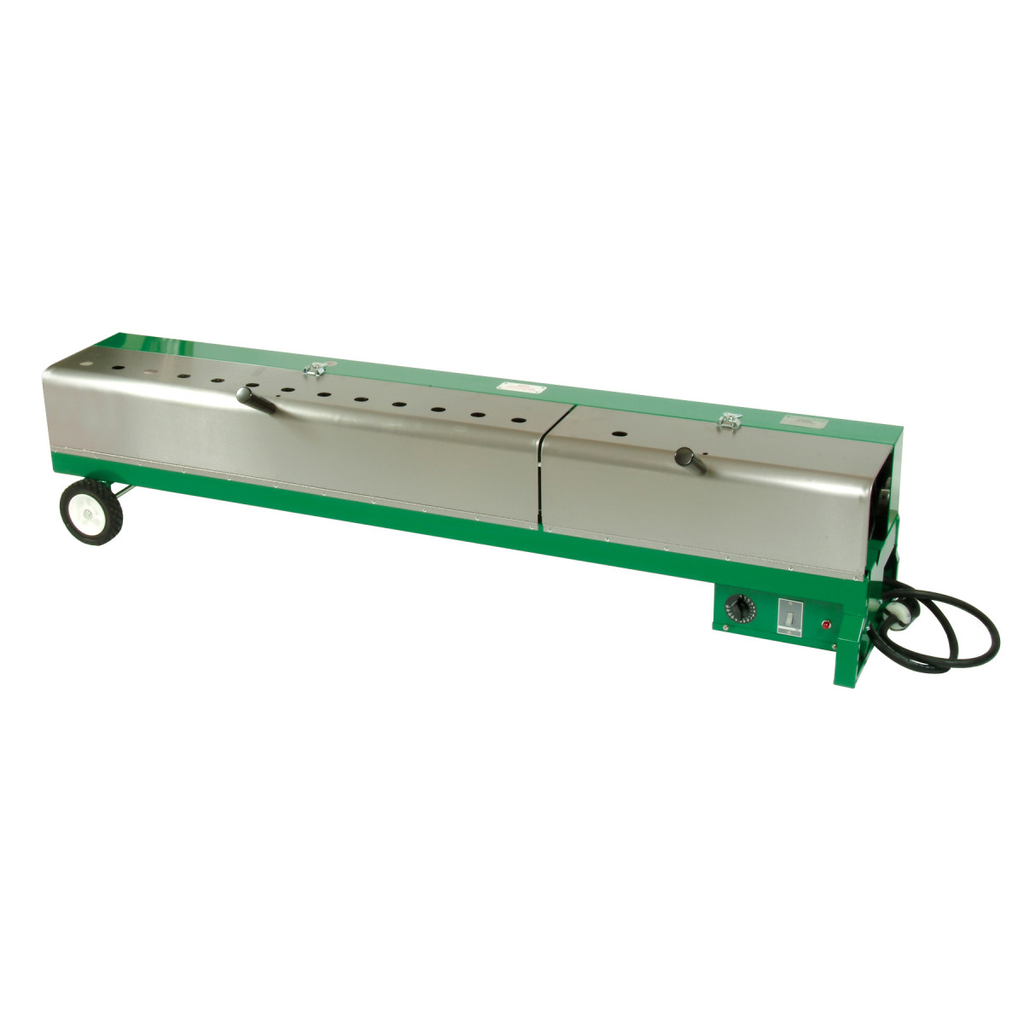

• Easy to use preheat for 10 minutes, open lid and position PVC, close lid, rotate until pliable, open lid, remove PVC and form bend 848 model has motorized rotation Heavy-duty metal construction with reflective interior for fast, efficient heating Has heating chart, timer, and on/off switch with indicator light for added convenience Double doors with piano hinges allow heating shorter lengths with one door open Sturdy wheels for easy mobility Heats 65 IN Long section of pipe

• Specifications
• Country of Origin : US
• Width : 15.5 IN
• Volume : 19620.829999999998 CI
• Height : 16.7 IN
• Length : 75.8 IN
• Volume : 76 LB
• Marking : None
• Construction : Heavy Duty Metal
• Battery : None
• Packaged Weight : 76
• Current Rating : 30 AMP
• Capacity : 1/2'' - 6.000'' PVC All Schedules Pipe
• Wattage : 6600 WATT, 7000 WATT Generator
• Type : PVC Heater
• Application : PVC Bending
• Voltage Rating : 230 VAC
• Replacement Part : 30908 Calrod Heating Element
• Accessory : 31092 Motorized PVC rotation kit for 847, 857 PVC Roller Support (Optional)
• Material : Double Wall Metal With Fiberglass Insulation
