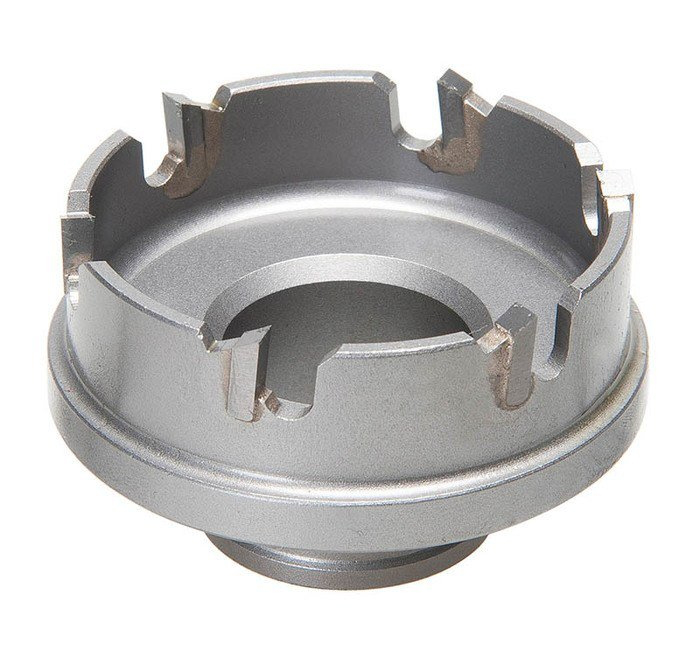

1 3/4" Quick Change Stainless Steel Hole Cutters

CARBIDE TIP HOLE CUTTER 1 3/4

GRE645134 645-1-3/4 783310057024
88.64 / EACH
http://schema.org/OutOfStock
Mayer-DDS-1 3/4" Quick Change Stainless Steel Hole Cutters-1
  • Chuck Size: 3/8 in
  • Country of Origin: China
  • Height: 1.550 in
  • Length: 6.750 in
  • Material: Carbide
  • Type: Carbide-Tipped Hole Cutter
  • Volume: 0.275 lb, 36.095 cu in
  • Width: 3.450 in
Replacement Die 1-1/16" (27. 0 mm) Actual Hole Size for Standard Round Knockout Punches.
QTY
  • Product Description
  • Features
  • Specifications
Replacement Die 1-1/16" (27. 0 mm) Actual Hole Size for Standard Round Knockout Punches.
  • Features
    • Slug Ejector Spring – quick, easy slug removal Cuts round, burr-free holes
  • Specifications
    • Length : 6.750 IN
    • Width : 3.450 IN
    • Volume : 36.095625000000005 CI
    • Country of Origin : CN
    • Volume : 0.275 LB
    • Height : 1.550 IN
    • Material : Carbide Tip
    • Size : 1-3/4 IN
    • Type : Carbide-Tipped Hole Cutter
    • Shank Size : 645-011 arbor sold separately (3/8" shank)
    • Hole Size : 1-3/4" (44.4 mm) for 1-1/4" conduit
    • Chuck Size : 3/8 IN
    • Pilot Drill : Replacement 645-001 sold separately
    • Pilot Drill Size : 1/4" x 2-1/2" (6 mm x 64 mm)
    • Maximum Cutting Depth : 8 ga
    • Cutting Edge : Tungsten Carbide Teeth
    • Application : Stainless steel, mild steel, aluminum, copper, brass, fiberglass and plastics
