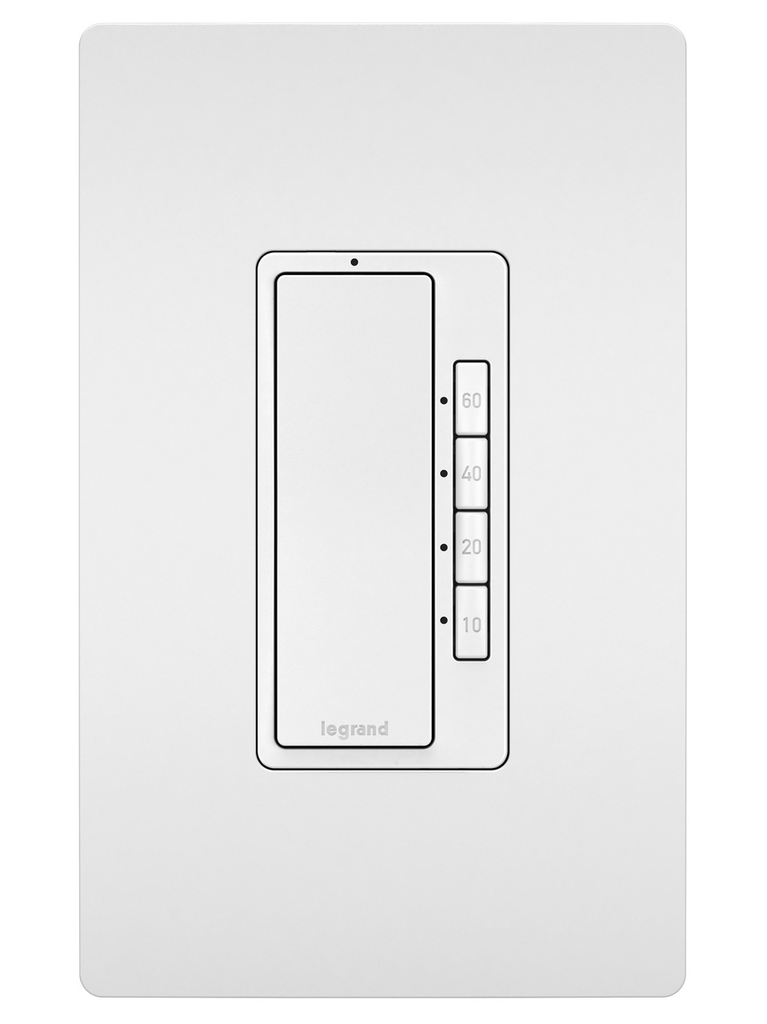

radiant® 4-Button Digital Timer, White

RADIANT 4-BUTTON TIMER 120VAC

PSSRT2W RT2-W 785007034370
47.01 / EA
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Commercial, Residential
  • Contact Rating: 600 W
  • Country of Origin: China
  • Depth: 1.88 in
  • Finish: Satin
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Polycarbonate
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Paddle
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: 1 yr
  • Width: 1.69 in
Installs easily in place of a standard light or fan switch, or older spring-wound timer and includes manual on/off through the paddle switch for added convenience. A locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Features
  • Specifications
  • Features
    • Works with a variety of light bulbs or fixtures, including: Incandescent, LED, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
    • Automates control of lights for energy and cost savings. Also includes manual on/off through the paddle switch for added convenience.
    • Lets you select a desired preset shut-off time, including 60, 40, 20 and 10 minutes.
    • Installs easily in place of a standard light or fan switch, or older spring-wound timer.
    • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
    • More color options available to fit any style.
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
    • Wire leads accept #14–#10 AWG solid & stranded wire, copper-clad aluminum, and copper wire.
  • Certifications
    • UL Listed
  • Specifications
    • Country of Origin : China
    • Depth : 1.88 in
    • Height : 3.281 in
    • Width : 1.69 in
    • Color : White
    • Finish : Satin
    • Material : Polycarbonate
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Warranty Type : 1-Year Limited Warranty
    • Number of Poles : Single Pole
    • Mounting Type : Wall Box
    • Type : Switch
    • Indoor/Outdoor : Indoor
    • Number of Switches : 1.0
    • Number of Gangs : 1.0
    • Standard : cULus
    • Contact Rating : 600Watts
    • Special Features : The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This timer controls most types of lighting and features 4-button preset countdown delays in 60-, 40-, 20- and 10-minute intervals with visual indication, turning loads off when no longer needed."
    • Number of Buttons : 4.0
    • Switch Type : Paddle
    • Voltage : 120.0 V
    • Application Sector : Commercial; Residential
    • Features : Decorator Style; Timer
    • Load Rating : 15 A @ 120 VAC
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Requires Neutral Wire : Yes
    • Connection Location : Back and Side
    • Load Type : CFL; Universal; Incandescent; LED; Fluorescent; Xenon; Halogen
    • Throw Type : Single Throw
    • Wall Plate Included : No
    • Horsepower Rating : 1/6 HP @ 120 VAC
    • Wire Connection Type : Wire Terminal; Push Wire
    • Timing Range : 10-60 minutes
    • Jigsaw Channel Availability : Distribution
