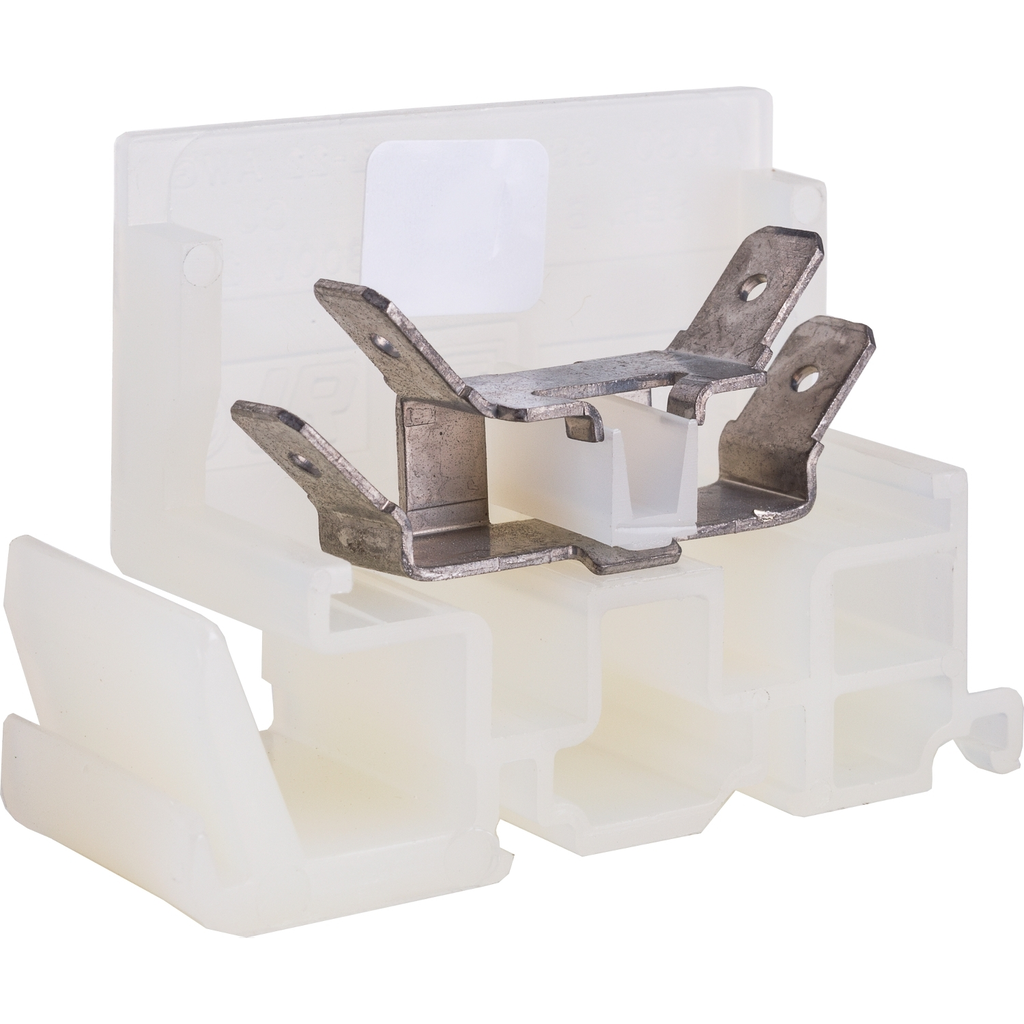

Terminal block, Linergy, slip on connector, natural colored block, 20A, 600 V

TERMINAL BLOCK 600V 20AMP NEMA

SQD9080GS6 9080GS6 785901155355
3.06 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, Linergy, slip on connector, natural colored block, 20A, 600 V-1
  • Certifications: CE, CSA File 62144 Class 6228 01, UL Recognized E60616 CCN XCFR2
  • Depth: 0.75 in
  • Height: 1.69 in
  • Line Rated Current: 20-20 A
  • Warranty Length: 18 mth
  • Width: 2.19 in
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has slip on connectors will accept solid or stranded copper wires from #22 through #12 AWG with a 0.25 x 0.032 slip on connector. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 20 ampere and up to 600 VAC or VDC.
QTY
  • Product Description
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has slip on connectors will accept solid or stranded copper wires from #22 through #12 AWG with a 0.25 x 0.032 slip on connector. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized and CSA certified for up to 20 ampere and up to 600 VAC or VDC.
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Specifications
    • Width : 2.19 in
    • Height : 1.69 in
    • Color : natural
    • Range Of Product : 9080G
    • Localisation On Device : standard
    • Quantity Per Set : set of 10
    • Product Or Component Type : terminal block
  • Complementary
    • Number Of Terminal Blocks : 16 per foot
    • Product Certifications : UL recognized E60616 CCN XCFR2 || CSA file 62144 class 6228 01 || CE
    • Ambient Air Temperature For Operation : -40-257 °F
    • Height : 1.69 in
    • Connections - Terminals : Faston connector tin plated brass
    • Mounting Support : 35 mm DIN rail || 9080GH track
    • Electrical Connection : Faston connector
    • Line Rated Current : 20-20 A UL || 20-20 A CSA
    • Awg Gauge : AWG 22...AWG 12 copper
    • Width : 2.19 in
    • Depth : 0.75 in
    • Product Compatibility : GF6B
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Contractual warranty
    • Warranty : 18 months
