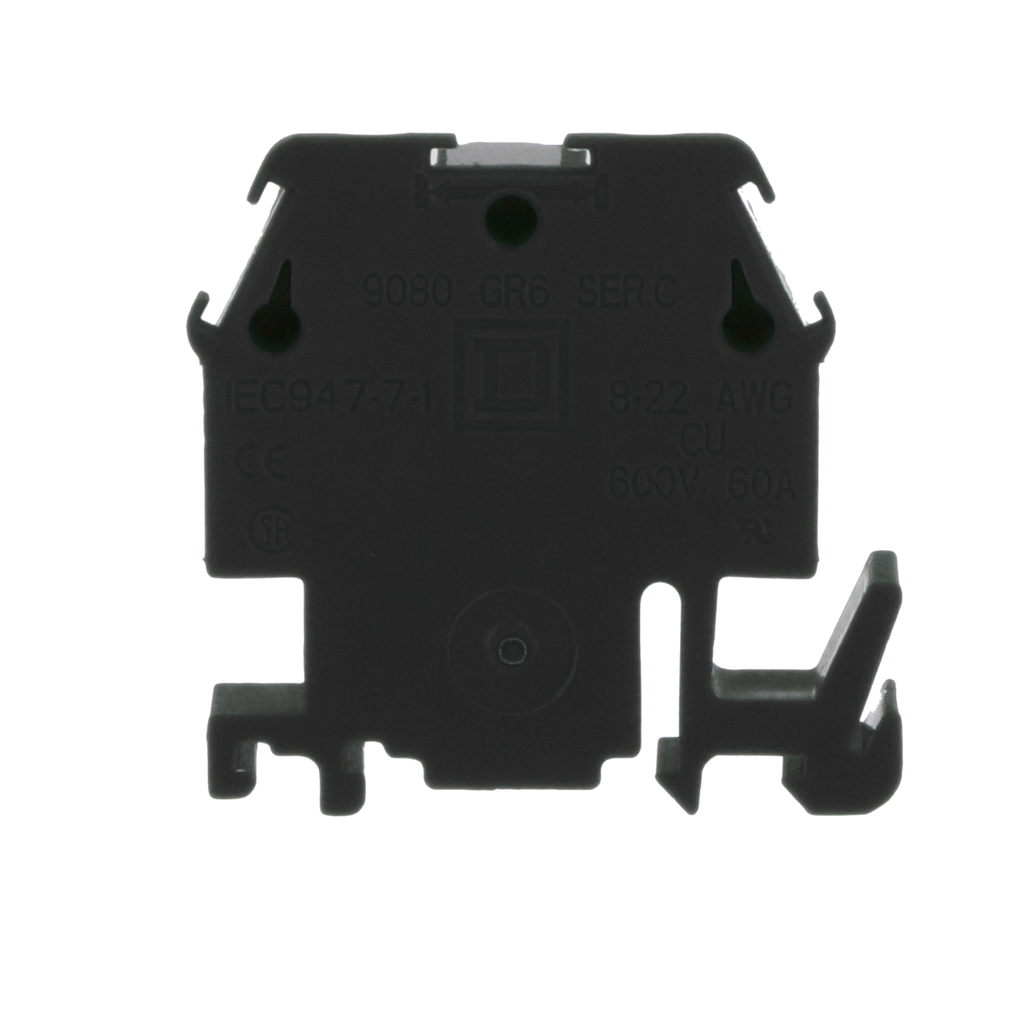

Terminal block, Linergy, box lug connector, black colored block, 60A, 600V

TERMINAL BLOCK 600V 60AMP NEMA

SQD9080GRB6 9080GRB6 785901917465
4.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, Linergy, box lug connector, black colored block, 60A, 600V-2
  • Depth: 0.35 in
  • Height: 1.82 in
  • Warranty Length: 18 mth
  • Width: 1.72 in
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
QTY
  • Product Description
  • Features
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Number Of Terminal Blocks : 34 per foot
    • Product Certifications : CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2 || CE
    • Ambient Air Temperature For Operation : -40-257 °F
    • Height : 1.82 in
    • Connections - Terminals : lug copper 18-20 lbf.in : AWG 22...AWG 8 copper)
    • Mounting Support : 9080GH track || 35 mm DIN rail
    • Electrical Connection : copper box lugs
    • Line Rated Current : 60-60 A UL || 60-60 A CSA
    • Awg Gauge : AWG 22...AWG 8 copper
    • Width : 1.72 in
    • Depth : 0.35 in
    • Product Compatibility : GM6B
    • Protection Type : fingersafe DIN 57470
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Specifications
    • Country of Origin : Mexico
    • Width : 1.72 in
    • Height : 1.82 in
    • Range Of Product : 9080G
    • Localisation On Device : standard
    • Product Or Component Type : terminal block
    • Color : Black
    • Quantity Per Set : set of 50
  • Contractual warranty
    • Warranty : 18 months
