SQUARE D

Terminal block, Linergy, box lug connector, black colored block, 30A, 600V

9080GMB6 BLACK TERM BLCK BOX L

SQD9080GMB6 9080GMB6 785901743279
3.50 / EACH
http://schema.org/OutOfStock

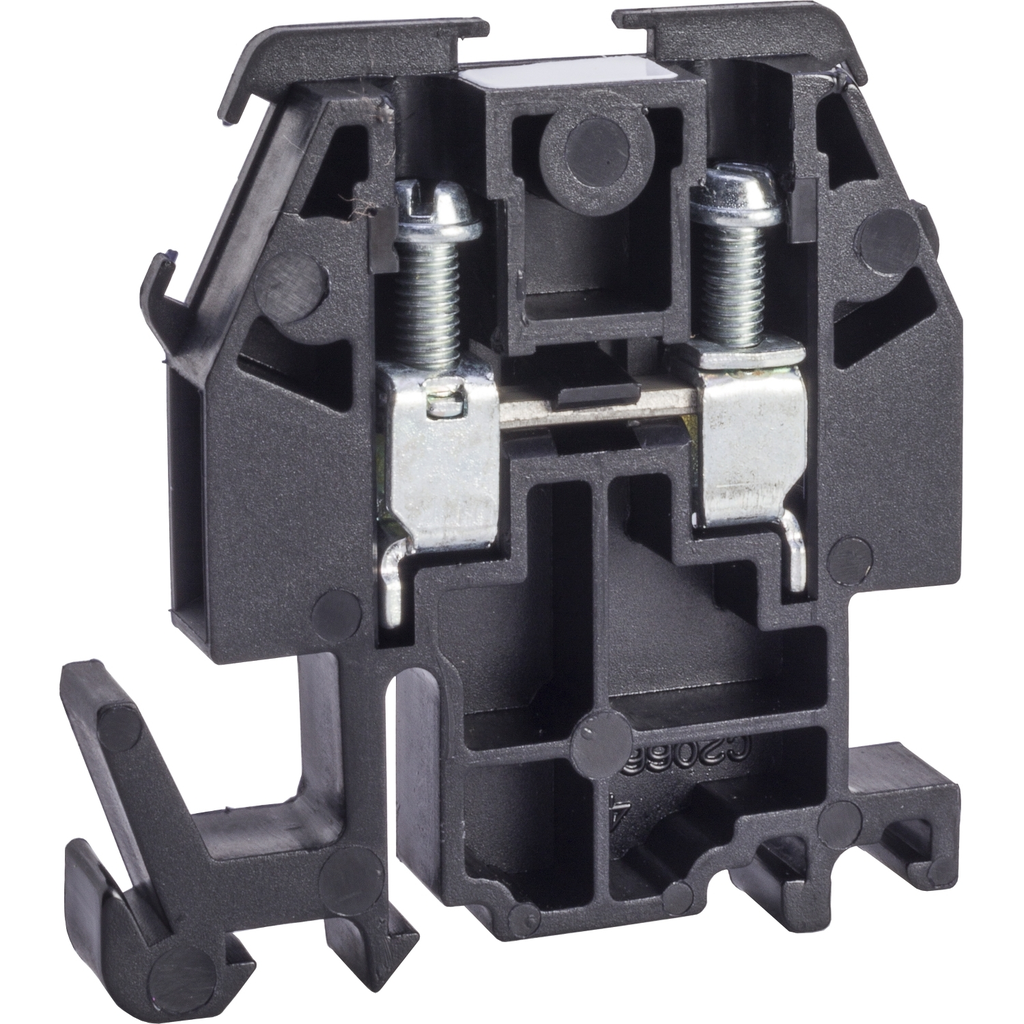

Mayer-DDS-Terminal block, Linergy, box lug connector, black colored block, 30A, 600V-1
  • Depth: 0.235 in
  • Height: 1.82 in
  • Warranty Length: 18 mth
  • Width: 1.72 in
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
QTY
  • Product Description
  • Features
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Number Of Terminal Blocks : 51 per foot
    • Product Certifications : CSA file 62144 class 6228 01 || UL recognized E60616 CCN XCFR2 || CE
    • Ambient Air Temperature For Operation : -40-257 °F
    • Height : 1.82 in
    • Connections - Terminals : lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper)
    • Mounting Support : 35 mm DIN rail || 9080GH track
    • Electrical Connection : zinc plated steel box lugs
    • Line Rated Current : 30-30 A UL || 30-30 A CSA
    • Awg Gauge : AWG 22...AWG 10 copper
    • Width : 1.72 in
    • Depth : 0.235 in
    • Product Compatibility : GM6B
    • Protection Type : fingersafe DIN 57470
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Specifications
    • Country of Origin : Mexico
    • Width : 1.72 in
    • Height : 1.82 in
    • Range Of Product : 9080G
    • Localisation On Device : standard
    • Product Or Component Type : terminal block
    • Color : Black
    • Quantity Per Set : set of 50
  • Contractual warranty
    • Warranty : 18 months
