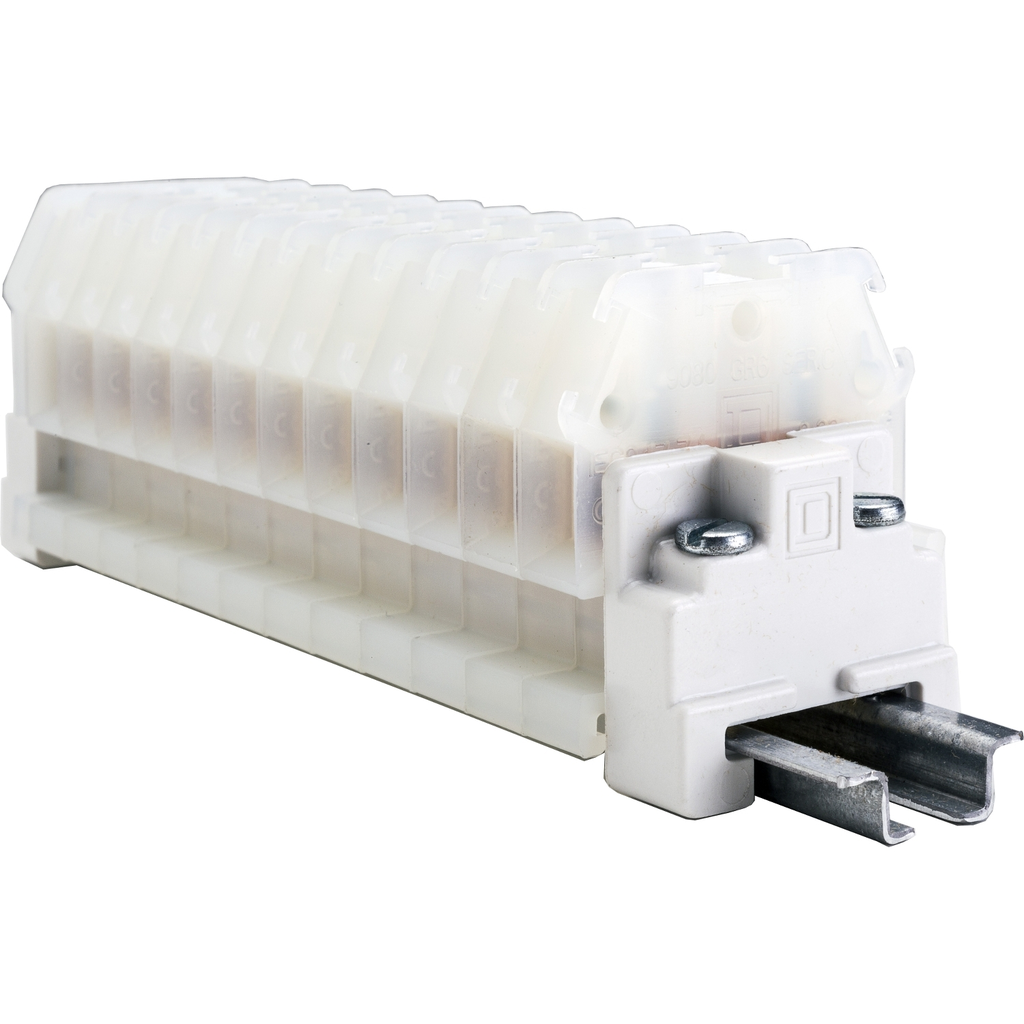

Terminal block, Linergy, box lug connector, 12 block assembly, natural color, 60A, 600 V

TERMINAL BLOCK, LINERGY, BOX L

SQD9080GR612 9080GR612 785901958604
69.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, Linergy, box lug connector, 12 block assembly, natural color, 60A, 600 V-1
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block assembly has twelve 9080GR6 terminal blocks, a 9080GM6B end barrier and two 9080GH10 end clamps all mount on 9080GH mounting track. The box lug connectors of the terminal blocks used for this assembly are approved for use with solid or stranded copper wires from 22 through 8 AWG. The nylon terminal blocks and end barrier are molded in the natural color of nylon (off white). The terminal blocks are UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
QTY
  • Product Description
  • Features
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block assembly has twelve 9080GR6 terminal blocks, a 9080GM6B end barrier and two 9080GH10 end clamps all mount on 9080GH mounting track. The box lug connectors of the terminal blocks used for this assembly are approved for use with solid or stranded copper wires from 22 through 8 AWG. The nylon terminal blocks and end barrier are molded in the natural color of nylon (off white). The terminal blocks are UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
  • Connections Terminals
    • lug copper 18-20 lbf.in : AWG 22...AWG 8 copper)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Protection Type
    • fingersafe DIN 57470
  • Accessories
    • 9080GH72
    • 9080GH73
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
  • Line Rated Current
    • 60-60 A UL
    • 60-60 A CSA
  • Persona Type Ids
    • LC
    • OM8
    • PB
  • AWG Gauge
    • AWG 22...AWG 8 copper
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Kit Composition
    • 1 end barrier
    • 2 end clamp(s)
    • 12 terminal blocks
    • 1 mounting track
  • UE Rated Operational Voltage
    • 600 V AC/DC
  • Important Information Attributes
    • B2B Bullet Point 1 : Natural colored block, 60 amp, box lug connector
    • B2B Bullet Point 2 : Their versatility and easy wiring makes them ideal terminal block
    • B2B Bullet Point 3 : Meets a wide variety of application requirements
    • B2B Bullet Point 4 : Offers labor savings with easy wiring requiring a standard screwdriver
    • B2B Bullet Point 5 : All blocks are UL component recognized and CSA approved
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1918
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 544.311 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : terminal block
    • Range Of Product : 9080G
    • Returnability : No
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : terminal block
    • Range Of Product : 9080G
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403762208&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
