SQUARE D

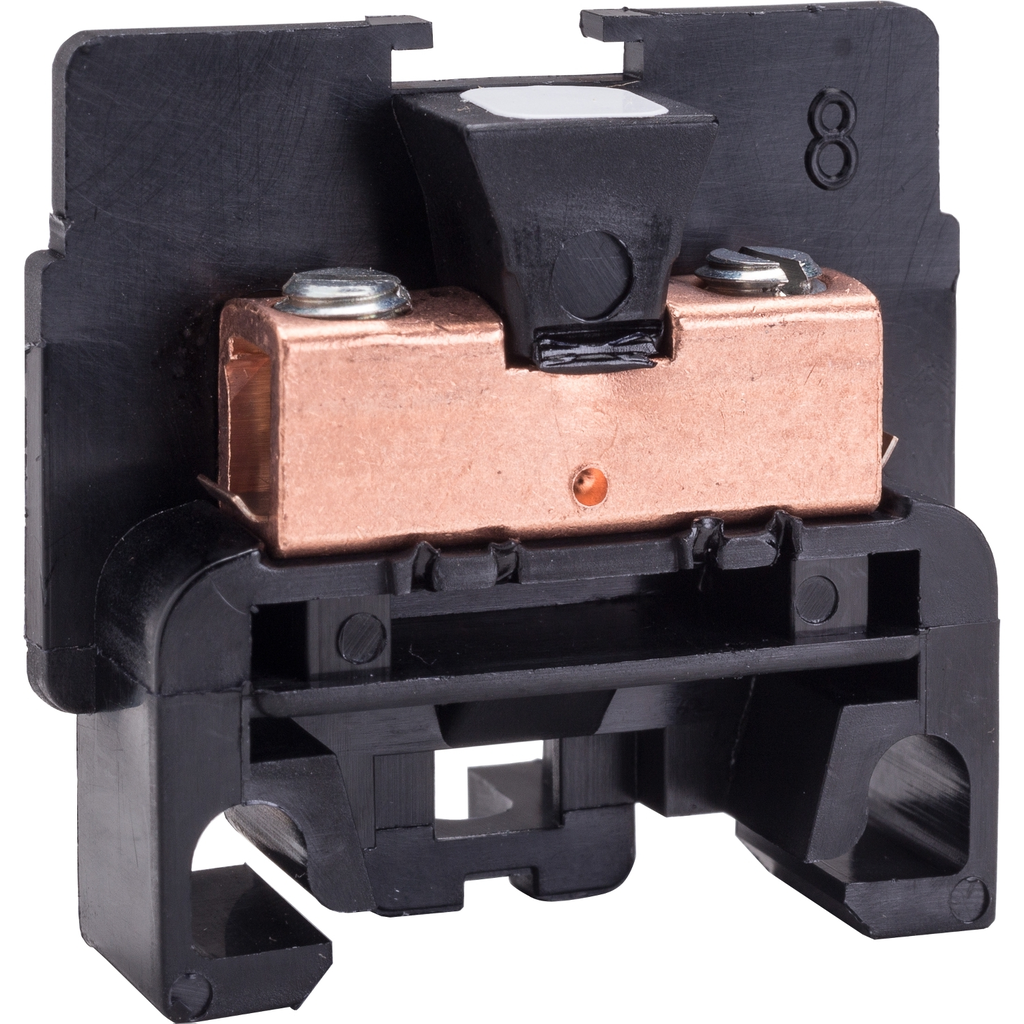

Terminal block, Linergy, box connector, black colored block, 40A, 600 V

TERMINAL BLOCK 600V 40AMP NEMA

SQD9080GKB6 9080GKB6 785901744528
4.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Terminal block, Linergy, box connector, black colored block, 40A, 600 V-1
  • Certifications: CE, CSA File 62144 Class 6228 01, UL Recognized E60616 CCN XCFR2
  • Depth: 0.35 in
  • Height: 1.39 in
  • Line Rated Current: 40-40 A, 70-70 A
  • Warranty Length: 18 mth
  • Width: 1.4 in
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
QTY
  • Product Description
  • Specifications
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.
  • Complementary
    • Number Of Terminal Blocks : 35 per foot
    • Product Certifications : CSA file 62144 class 6228 01 || CE || UL recognized E60616 CCN XCFR2
    • Ambient Air Temperature For Operation : -40-257 °F
    • Height : 1.39 in
    • Connections - Terminals : lug copper 11-12 lbf.in : AWG 22...AWG 10 copper)
    • Mounting Support : panel || 9080GH track
    • Electrical Connection : copper box lugs
    • Line Rated Current : 40-40 A CSA || 70-70 A UL
    • Awg Gauge : AWG 22...AWG 10 copper
    • Width : 1.4 in
    • Depth : 0.35 in
    • Product Compatibility : GK6B
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Specifications
    • Width : 1.4 in
    • Height : 1.39 in
    • Color : Black
    • Range Of Product : 9080G
    • Localisation On Device : standard
    • Quantity Per Set : set of 50
    • Product Or Component Type : terminal block
  • Contractual warranty
    • Warranty : 18 months
