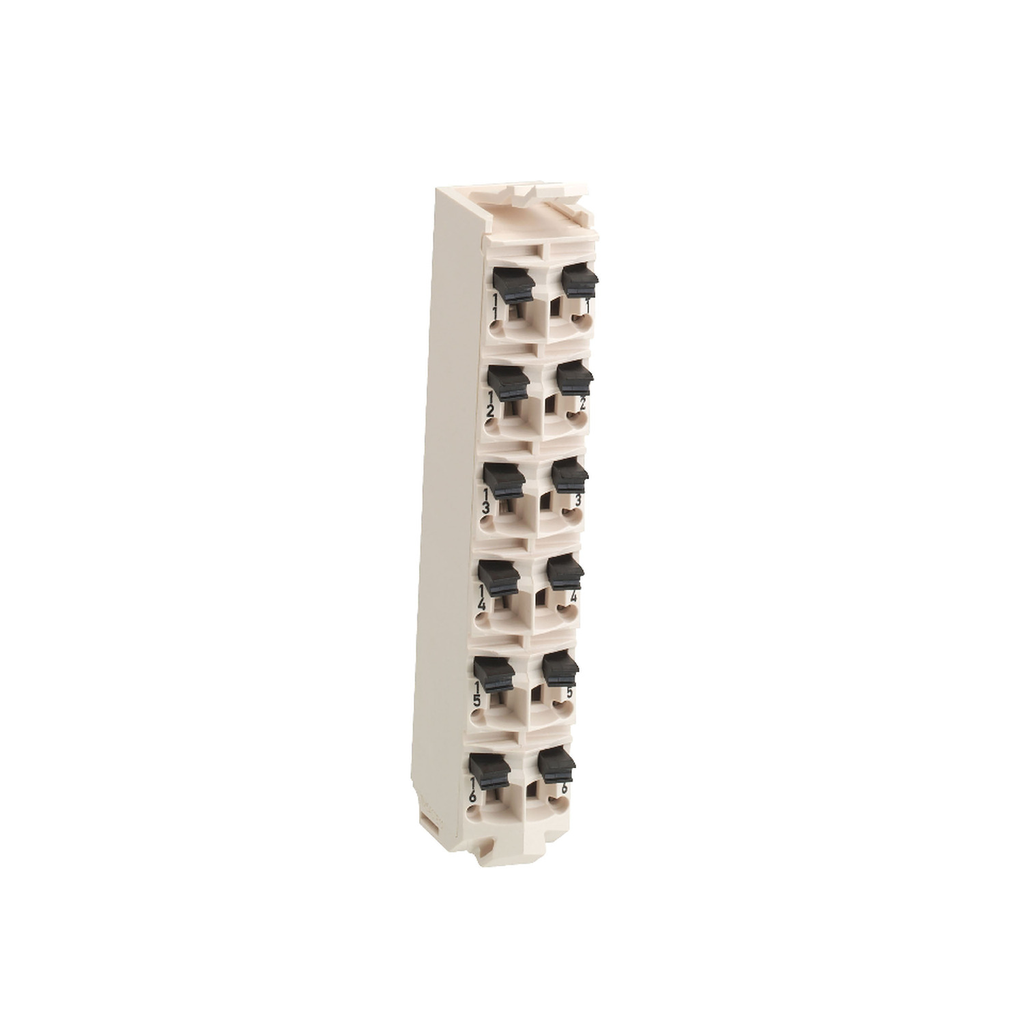

terminal block, Modicon TM5, 12 contacts, white, quantity 1

TERMINAL BLOCK-12PIN-24VDC WHI

SQDTM5ACTB12 TM5ACTB12 3595864075020
23.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-terminal block, Modicon TM5, 12 contacts, white, quantity 1-1
  • Net Weight: 0.02 kg
  • Number of Terminations: 12
  • Warranty Length: 18 mth
This product is part of the Modicon TM5 range, an offer of modules for IP20 modular I/O system. This terminal block offers 12 contacts. This distributed I/O solution is simple, open and flexible, meeting needs in every stage of the product life cycle The housing colour is white. It weighs 0.02kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is compatible with discrete I/O module 24V DC, analogue I/O module, common distribution module, remote transmitter module and counter module. The range is compatible with Modicon LMC058 and Modicon M258 logic controllers. This IP20 modular IO system provides a flexible and scalable configuration of expansions/distributed I/O islands by connection with Modicon controllers (TM5 bus) or via CANopen bus/Sercos bus for Modicon and PacDrive 3 controllers as well. Flexible and scalable, designed for complex machines.
QTY
  • Product Description
  • Specifications
This product is part of the Modicon TM5 range, an offer of modules for IP20 modular I/O system. This terminal block offers 12 contacts. This distributed I/O solution is simple, open and flexible, meeting needs in every stage of the product life cycle The housing colour is white. It weighs 0.02kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is compatible with discrete I/O module 24V DC, analogue I/O module, common distribution module, remote transmitter module and counter module. The range is compatible with Modicon LMC058 and Modicon M258 logic controllers. This IP20 modular IO system provides a flexible and scalable configuration of expansions/distributed I/O islands by connection with Modicon controllers (TM5 bus) or via CANopen bus/Sercos bus for Modicon and PacDrive 3 controllers as well. Flexible and scalable, designed for complex machines.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1511024EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1511024EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Range Of Product : Modicon TM5
    • Number Of Terminals : 12
    • Accessory / Separate Part Category : connection accessory
    • Product Compatibility : discrete I/O module 24 V DC || analog I/O module || common distribution module || remote transmitter module || counter module
    • Sale Per Indivisible Quantity : 1
    • Accessory / Separate Part Type : terminal block
  • Complementary
    • Net Weight : 0.02 kg
    • Color : White
    • Range Compatibility : Modicon M258 || Modicon LMC058
  • Contractual warranty
    • Warranty : 18 months
