SQUARE D

Terminal Blocks, Linergy, plugin bridge jumper, for 6.2mm wide blocks, 10 points, grey

TERM BLOCK JUMPER IEC

SQDNSYTRAL410GR NSYTRAL410GR 3606480534195
7.49 / EA
http://schema.org/OutOfStock

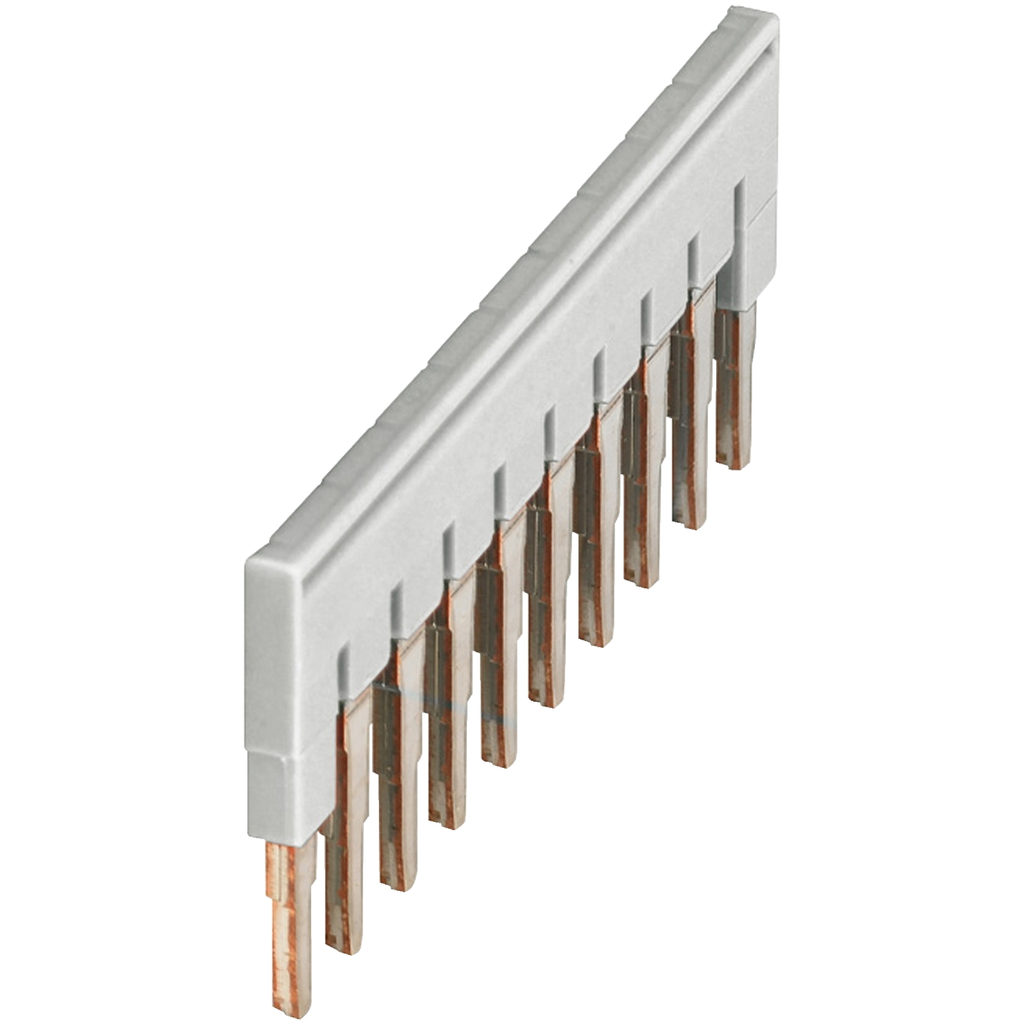

Mayer-DDS-Terminal Blocks, Linergy, plugin bridge jumper, for 6.2mm wide blocks, 10 points, grey-1
  • Net Weight: 10.1 g
  • Number of Terminations: 2, 3, 4
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. A plug-in bridge jumper is used to connect all of the terminal blocks electrically. This plug-in jumper will connect ten 6.2 mm wide terminal blocks. Jumper has a grey cover. Each jumper wieghs 0.36 oz. The jumpers are sold in sets of ten jumpers per package.
QTY
  • Product Description
  • Specifications
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. A plug-in bridge jumper is used to connect all of the terminal blocks electrically. This plug-in jumper will connect ten 6.2 mm wide terminal blocks. Jumper has a grey cover. Each jumper wieghs 0.36 oz. The jumpers are sold in sets of ten jumpers per package.
  • Specifications
    • Weight : 10.1 g
    • Product Compatibility : TRV screw terminal terminal block || TRP push-in terminal block || TRR spring terminal terminal block || TRH IDC terminal block
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : plug-in bridge
    • Product Name : Linergy TR
    • Range : Linergy
    • Number Of Ways : 10 ways
    • Device Short Name : TRA
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1304013EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Halogen Content Performance : Halogen free plastic parts product
  • Complementary
    • Number Of Terminals : 3 || 4 || 2
    • Number Of Measurement Input : 2 || 6 || 3 || 4 || 1
    • Net Weight : 10.1 g
    • Cable Cross Section : 4-4 mm²
    • Quantity Per Set : set of 10
    • Color : Gray
