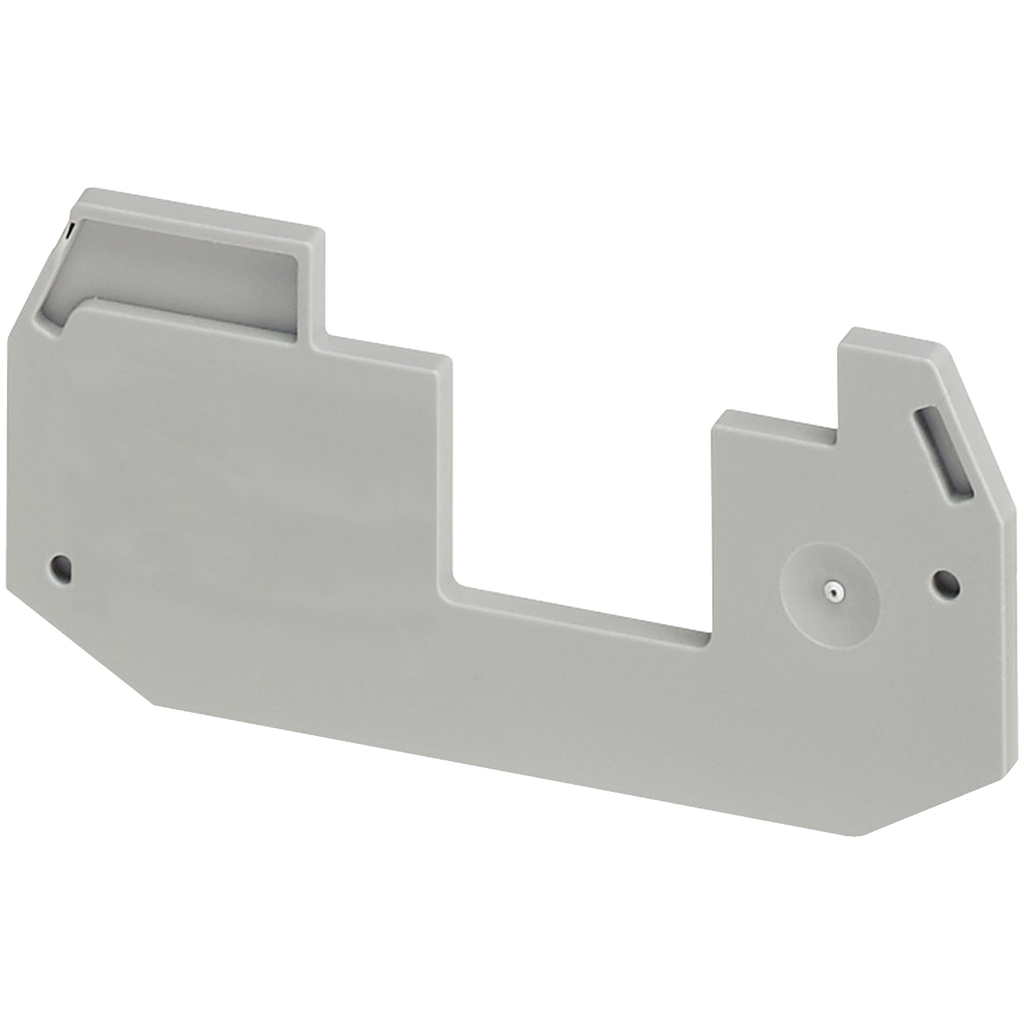

Linergy NSYTR cover plate for terminal block. It is compatible with TRV screw terminal block. It has grey surface treatment. For screw double-level terminal block 1x1, 2.5 to 4mm². Sold in lots of 50 units.

• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Number Of Terminals : 2
• Number Of Measurement Input : 2 || 4
• Net Weight : 2.6 g
• Cable Cross Section : 2.5-2.5 mm² || 4-4 mm²
• Quantity Per Set : set of 50
• Color : Gray
• Specifications
• Country of Origin : Germany
• Weight : 2.6 g
• Product Compatibility : TRV screw terminal - passthrough terminal block, length = 69.9 mm || TRV screw terminal - blade disconnect terminal block, length = 69.9 mm
• Accessory / Separate Part Category : insulation accessory
• Product Or Component Type : partial cover plate
• Thickness : 2.2 mm
• Product Name : Linergy TR
• Range : Linergy
• Device Short Name : TRA
• Contractual warranty
• Warranty : 18 months
